Installation instructions – High Lifter Tie Rod_Rack End Upgrade Kit for Polaris Ranger 500_700_800_900 Pro Series User Manual
Page 2
Installation Instructions

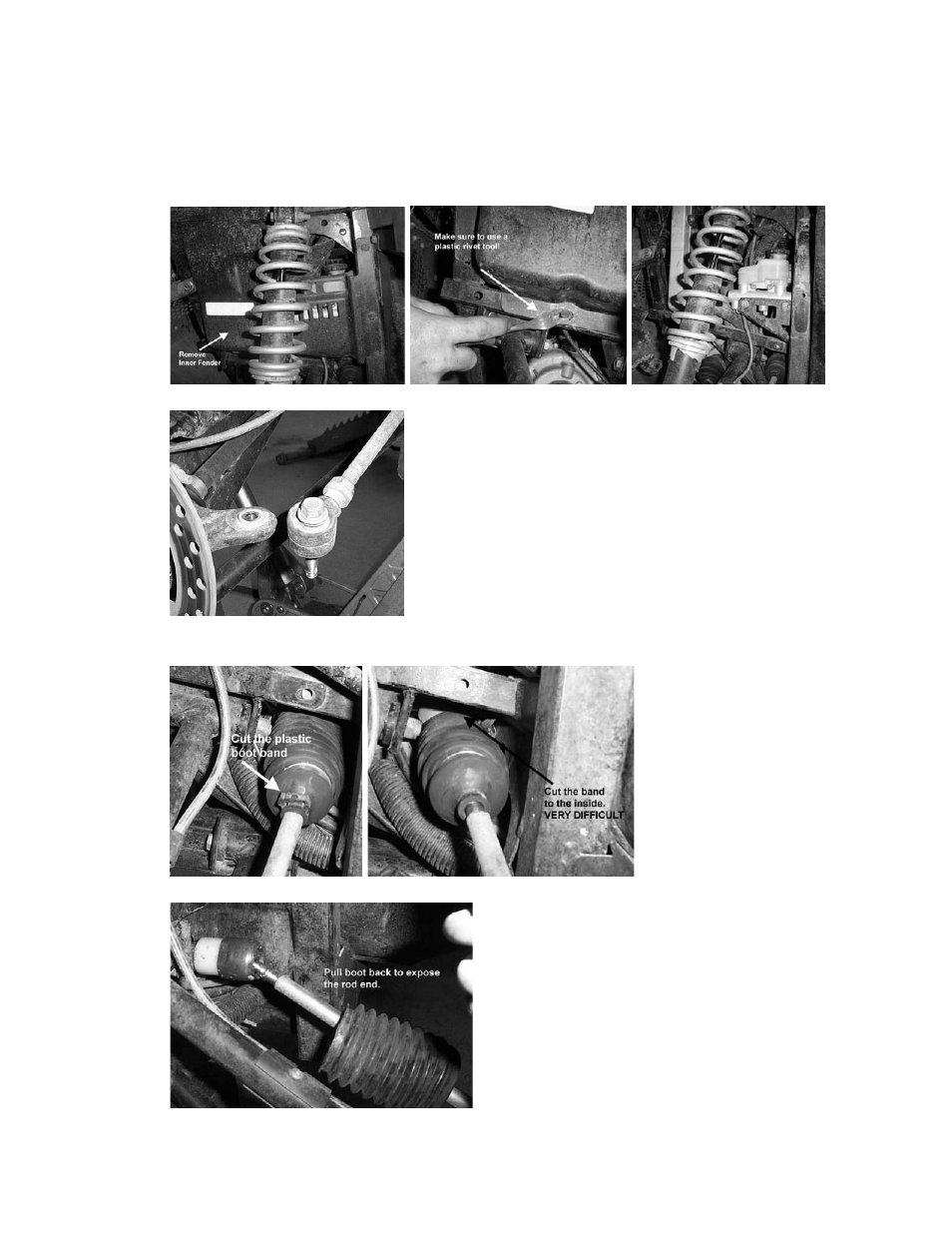

1. Remove the front tire nearest the rod you are replacing.
2. Remove the inner fender. Make sure you have a rivet tool!
3. Disconnect the rod from the knuckle assembly.
4. Cut the plastic boot bands from the boot on the rack and pinion. The boot end to the inside is
going to be difficult to cut and replace.
5. Once you have cut the bands pull the boot down to expose the end.
