High Lifter Lift Kit for Honda Rancher 420i (09-13) - Signature Series User Manual
Page 6
6

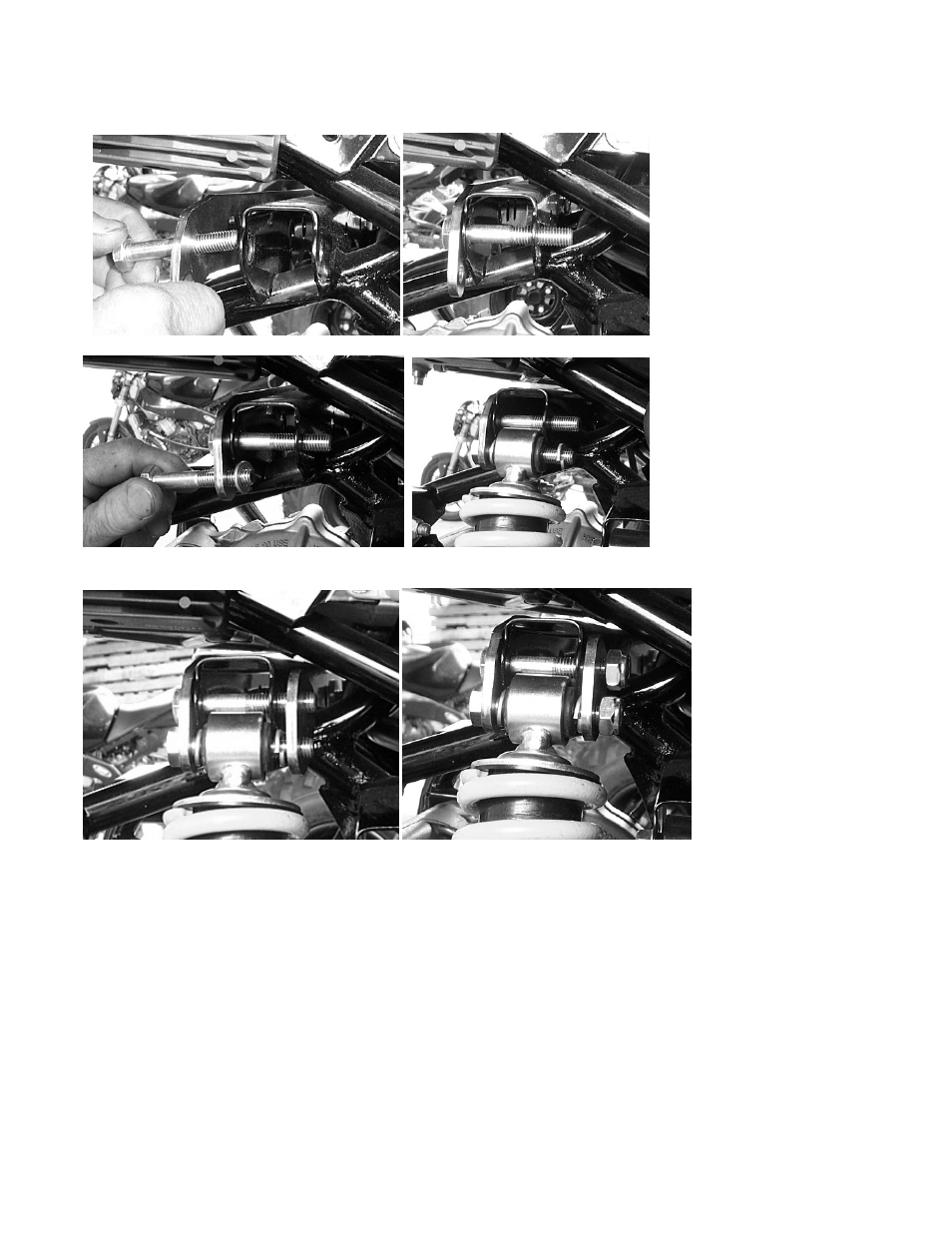

6) Insert the 10x60 bolt into the bracket through the shock mount.
7) Connect the top of the shock to the long lift bracket using a 10x60 bolt and 10mm lock washer.
8) Now connect the opposite side using the small rear lift bracket, 10mm lock washer and two 10mm
lock nuts.
9) Repeat the same steps for the opposite side. You may need to adjust the ratchet strap to help align
the bolt holes for the opposite side.
10) When complete reattach wheels torque all lugs to factory specks and lower ATV.
