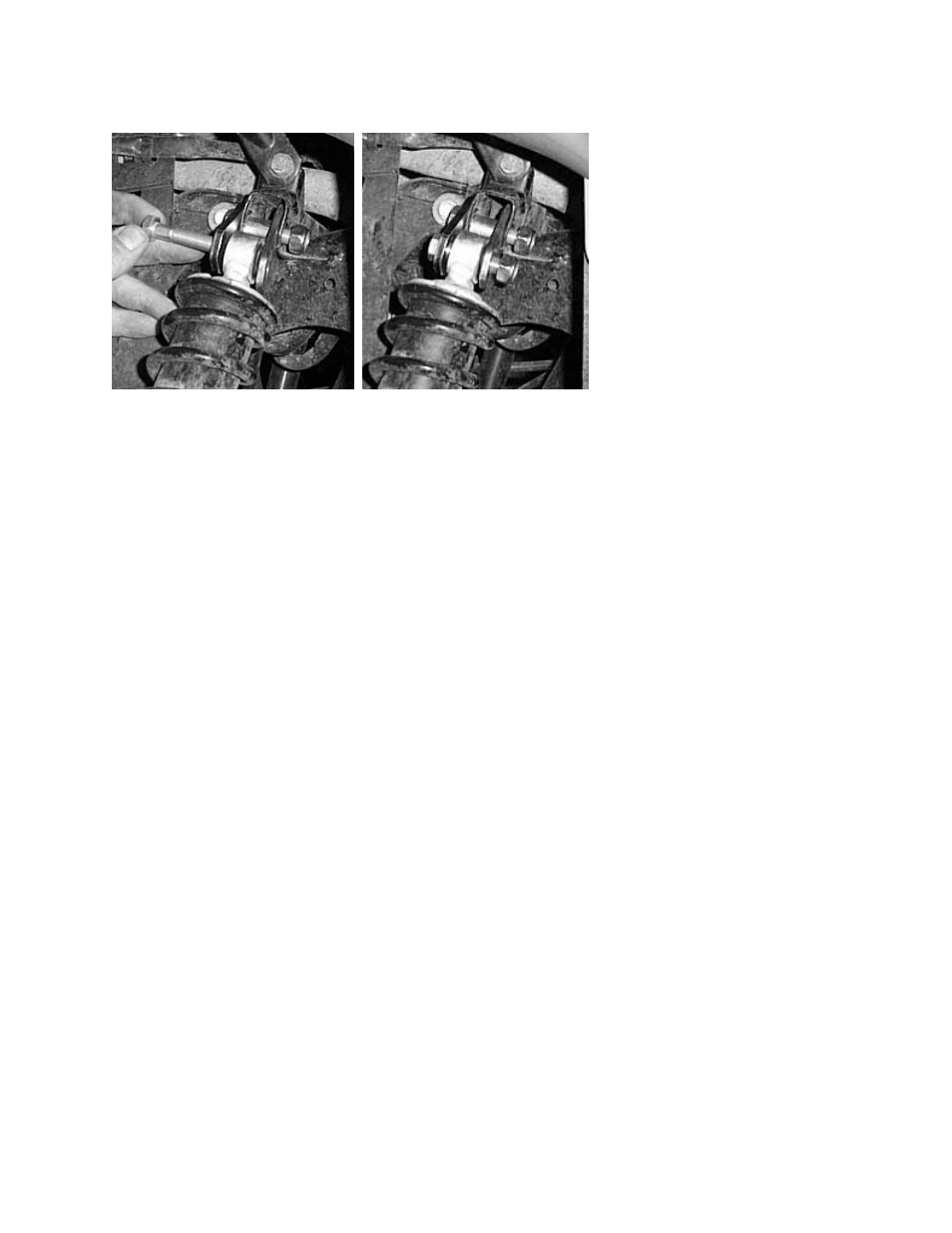

7) Connect the top of the shock to the lift brackets.

NOTE: You may need to compress the shock a little to get the bolt inserted through the brackets and
shock.

8) Repeat steps for opposite site.
9) When complete reattach wheels torque all lugs to factory specks and lower ATV.
