High Lifter Lift Kit for Honda Rancher 420i (09-13) - Signature Series - Manual (Page 3)

3
Installation Instructions
1) Place jack under center of ATV front end and lift until front wheels clear the ground. Be careful to
support ATV properly so that it is securely supported but so that A-arms and shocks can droop to
full extension.
2) Remove front wheels.
3) Disconnect the top of the shock from the ATV frame.

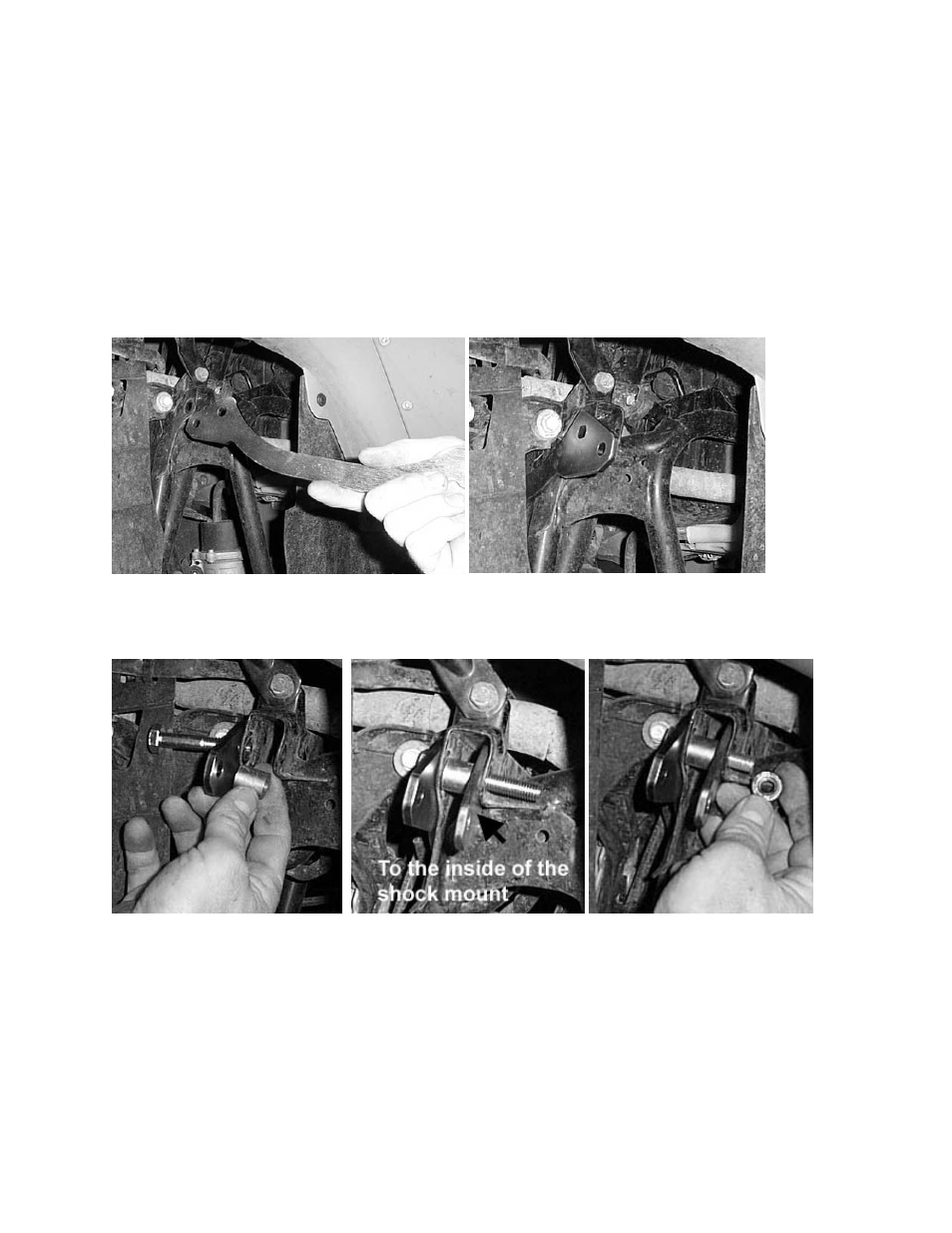

4) Insert the Front Long Lift Bracket to where it runs from one shock mount to the other on the
opposite side of the ATV. Insert it so that it is to the front of the shock mount tabs.
5) Insert the Small Spacer between the shock mount tabs.
6) Next place the Small Front Lift bracket to the inside of the shock mount tab next to the spacer and
secure it with the 10mm x 45mm hex bolt and 10mm lock nut.
