High Lifter Lift Kit for Yamaha 550_700 Grizzly (07-14) - Signature Series User Manual
Page 7

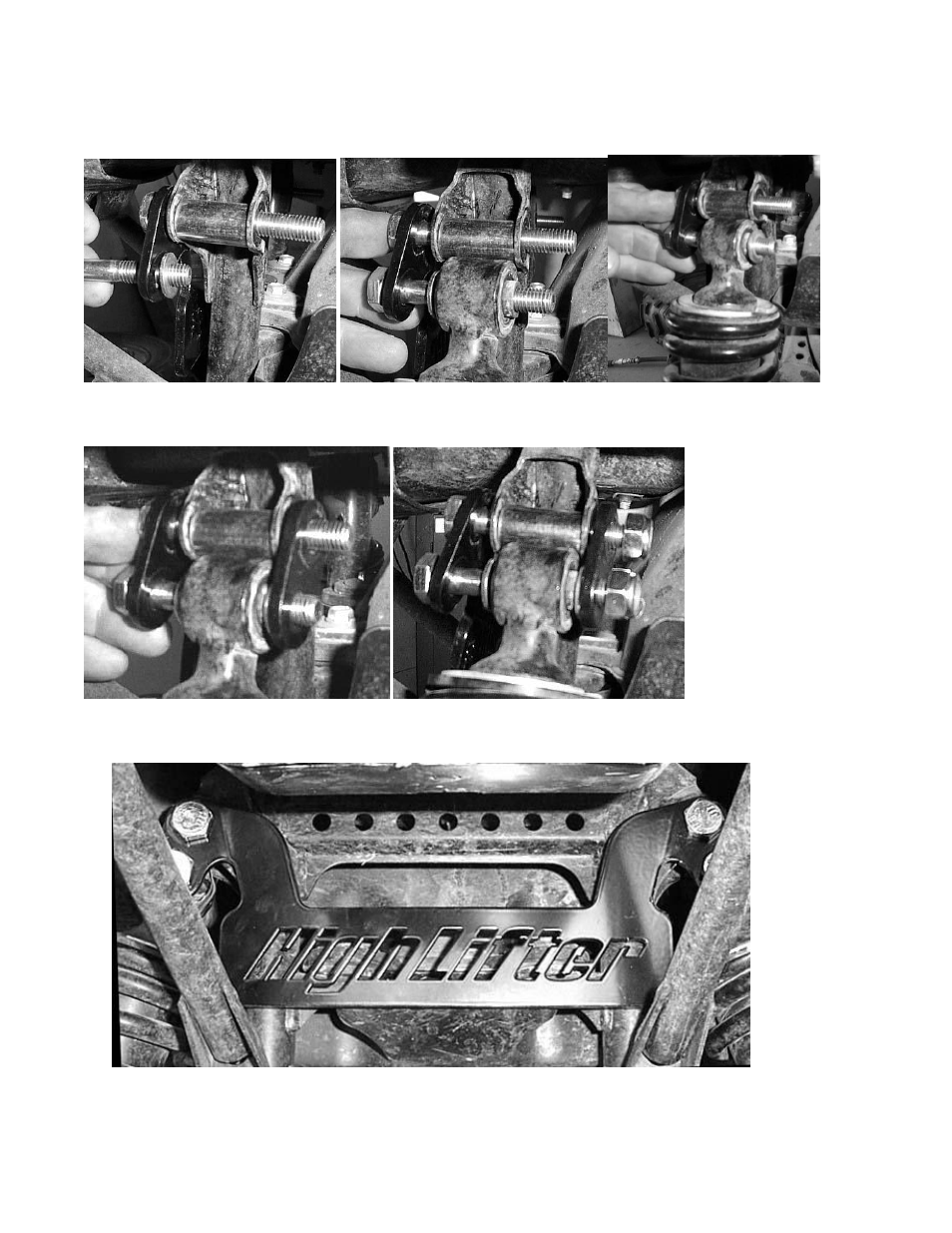

8) Attach the top of the shock to the lift brackets by placing a 10mm flat washer on either side of it
between the sock and brackets. Use a 10x70 hex bolt.
9) Secure the rear lift with the small rear bracket and 10mm lock nut.
10) Repeat steps for the opposite side.
11) Place wheels back on ATV and torque lugs to factory specifications.
