High Lifter Lift Kit for Yamaha 550_700 Grizzly (07-14) - Signature Series User Manual
Page 3
Front Lift

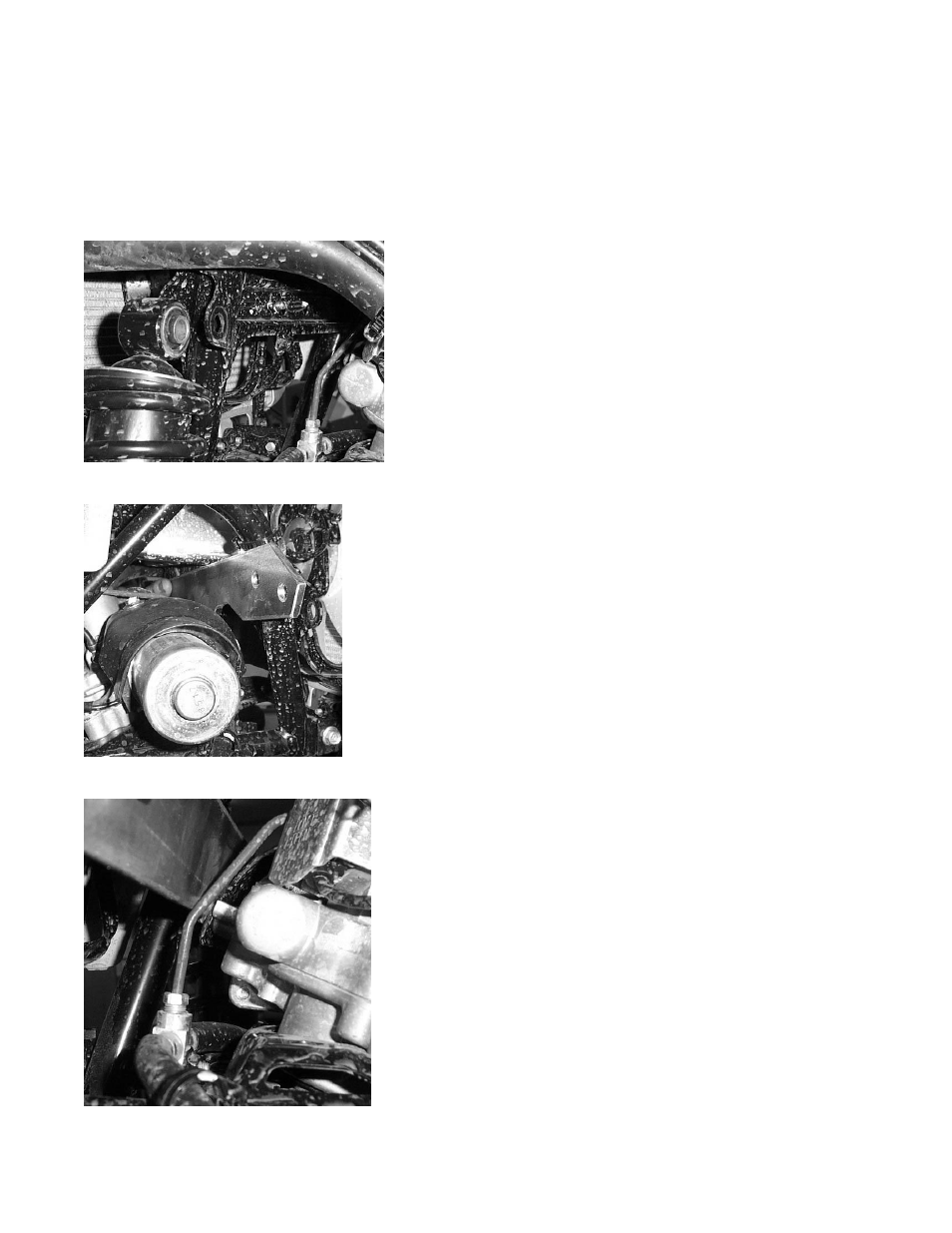

1) Place ATV transmission in park. Place jack under center of ATV front end and lift until front
wheels clear the ground. Be careful to support ATV properly so that it is securely supported so that
A-arms and shocks can droop to full extension.
2) Remove front wheels.
3) Remove the tops of the front shocks front the mounts.
4) Next insert long front lift bracket. There is a notch cut out of it to clearance the power steering
motor.
5) There is a metal tube that inner fears with the mounting bracket. You will need to bend it slightly to
clearance the bracket.
