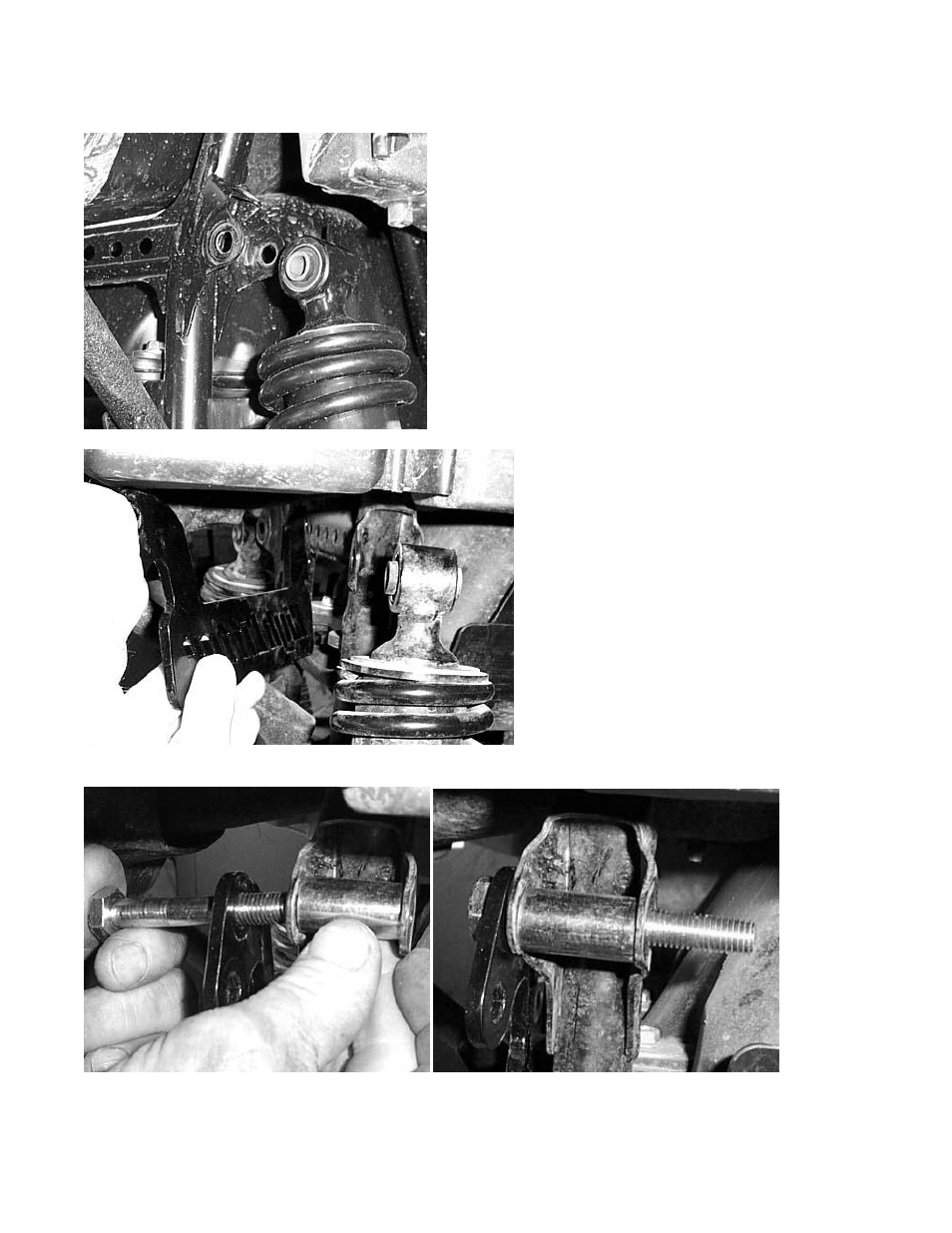

5) Disconnect the top of the shocks from both sides of the ATV.

6) Now insert long rear lift bracket next to the rear frame.

7) Insert medium spacer in the center of the shock mounting tabs on the frame. Now insert the 10x70

bolt through the bracket and spacer.
