High Lifter Crushlok Wheels 12” & 14” Installation User Manual
Page 5

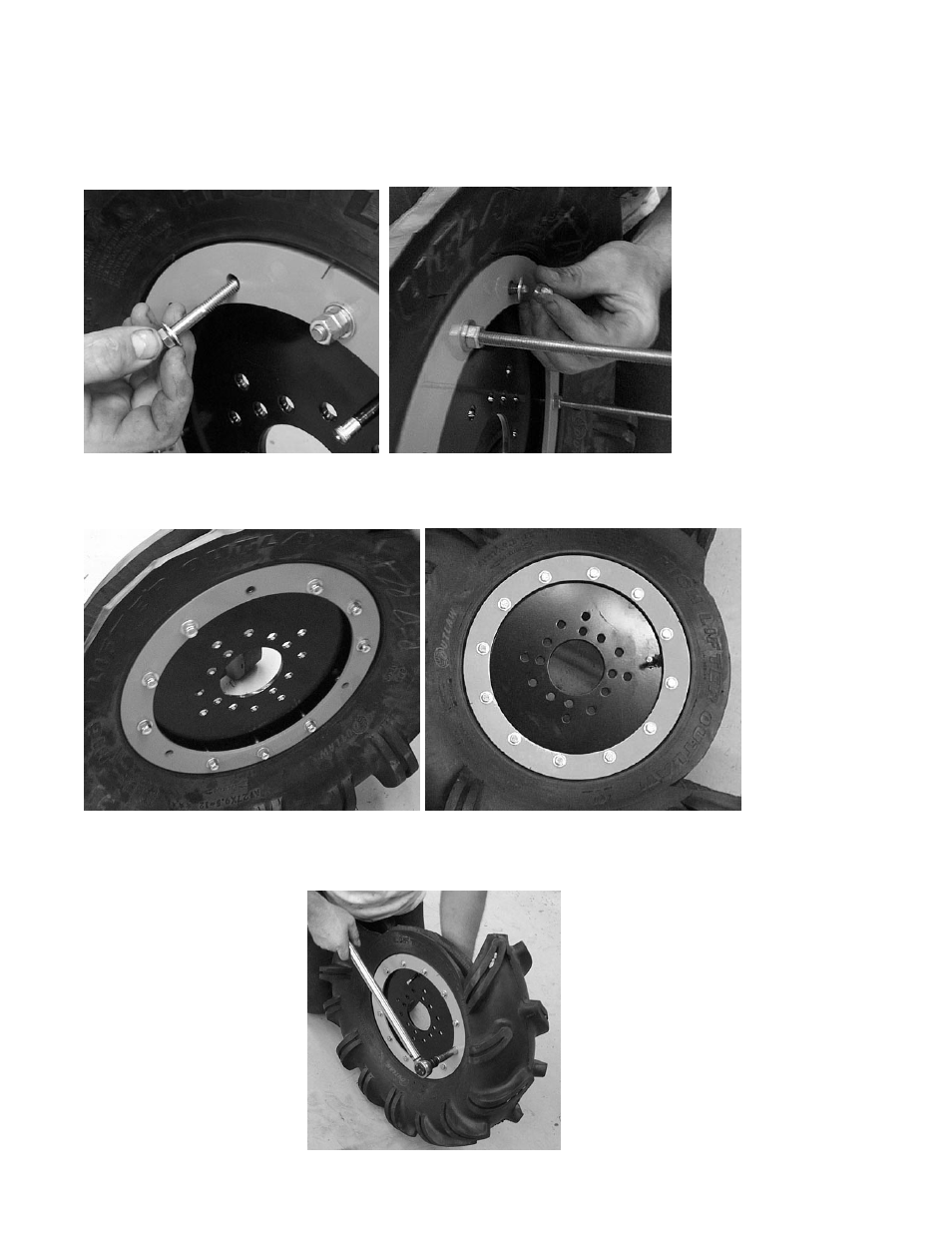

6. Next, install the 5/16 x 2” bolts and 5/16 washers, placing washers on the outsides of the
rings so that the rings are not damaged. Then install the 5/16 locking nut. Do this to all the
open bolt holes, but only tighten hand tight.
7. Now, remove the three all thread bolts and replace them with the remaining bolts,
washers, and nuts.
8. Using a torque wrench, tighten each bolt to 18ft lbs of torque. When you start to torque
the bolts use a star pattern to ensure the rings are seated properly.
5
