Hafele EN 372.67 Series - Manual (Page 20)

20
1
strato verso
Lift-up fitting verso
LIft-up fitting strato
max.
± 3 mm
1
2
3
Fine-adjust

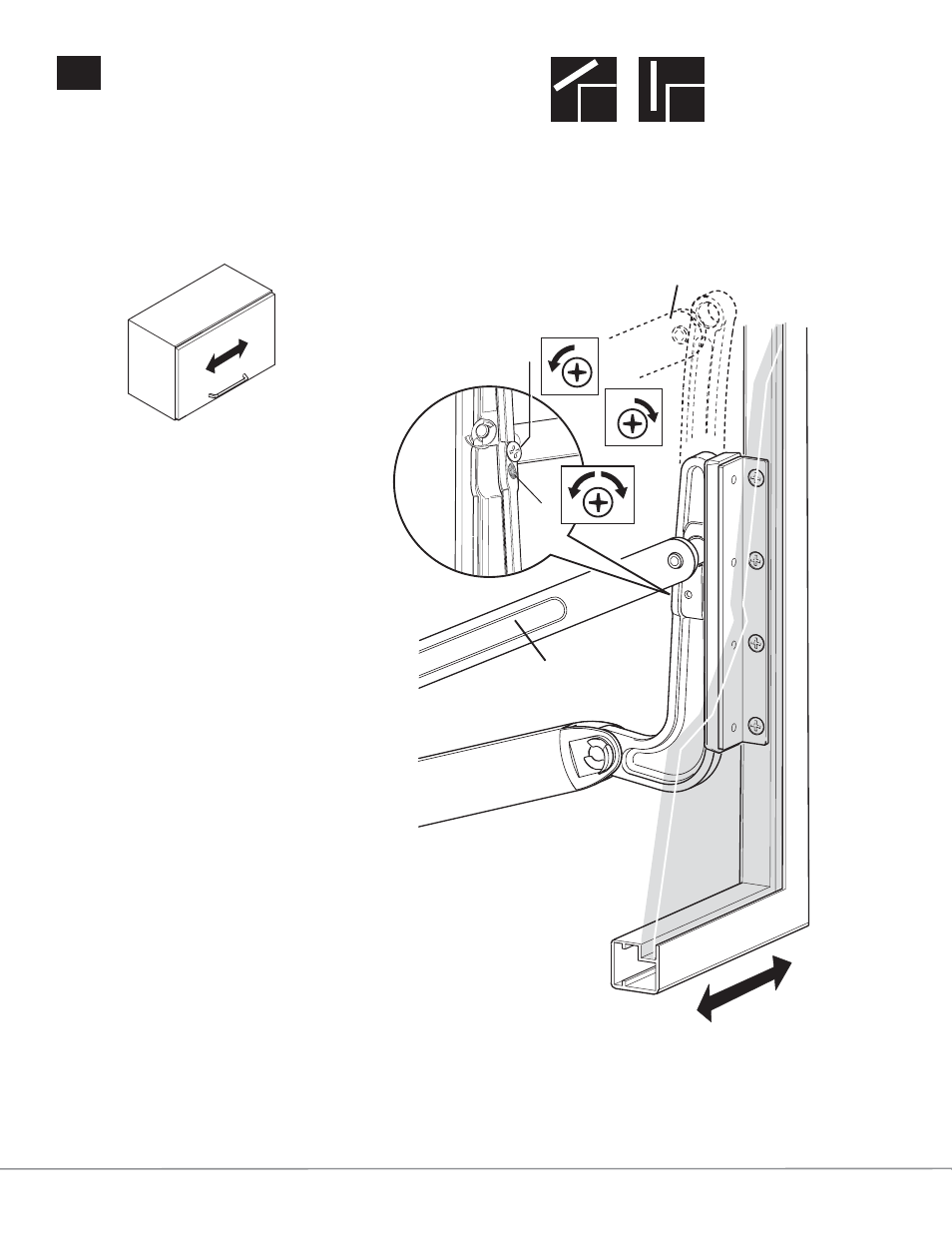

The fine-adjust according to flap
alignment is done by means of the
excenter screw 2 on the regulation
part. Tighten the fixing screw 1 after
adjustment.
16
Fine-adjustment according to flap alignment.
Lift-up verso/strato
View of right side. (left side symmetrical)
