Height fine-adjustment
The height adjustment of the cabinet flap is done through
the excenter screw at the fitting (see scale). Please loosen fixing screws.
max.
± 3 mm
2
1
3
15

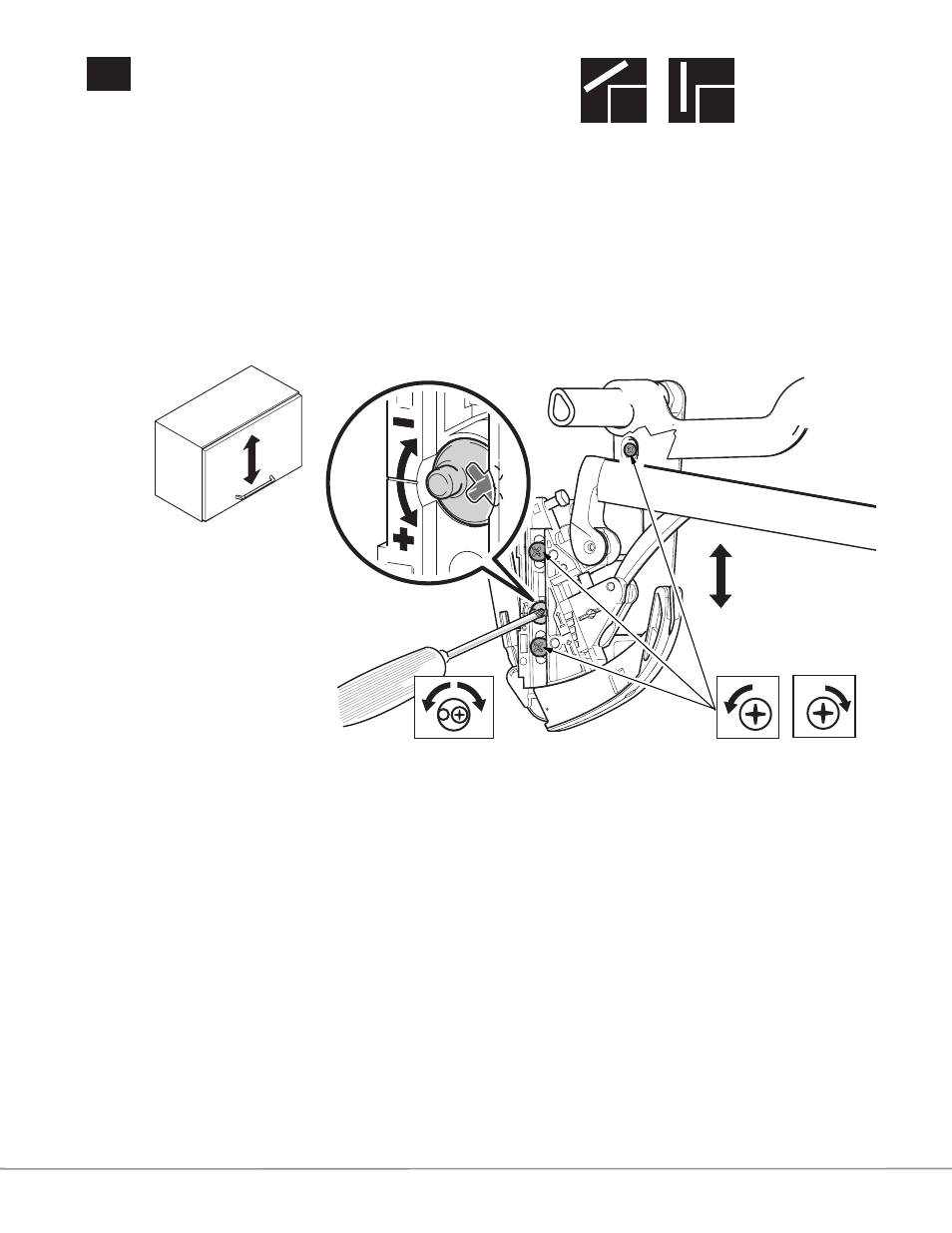

Fine-adjustment of the flap height
Lift-up fitting verso/strato
View of right side. (left side symmetrical)
