Keyed Switch for Electric Furniture Locks
Item No.: 237.56.010
Mounting Instructions
3901 Cheyenne Drive
P.O. Box 4000
Archdale, NC 27263
1-800-423-3531

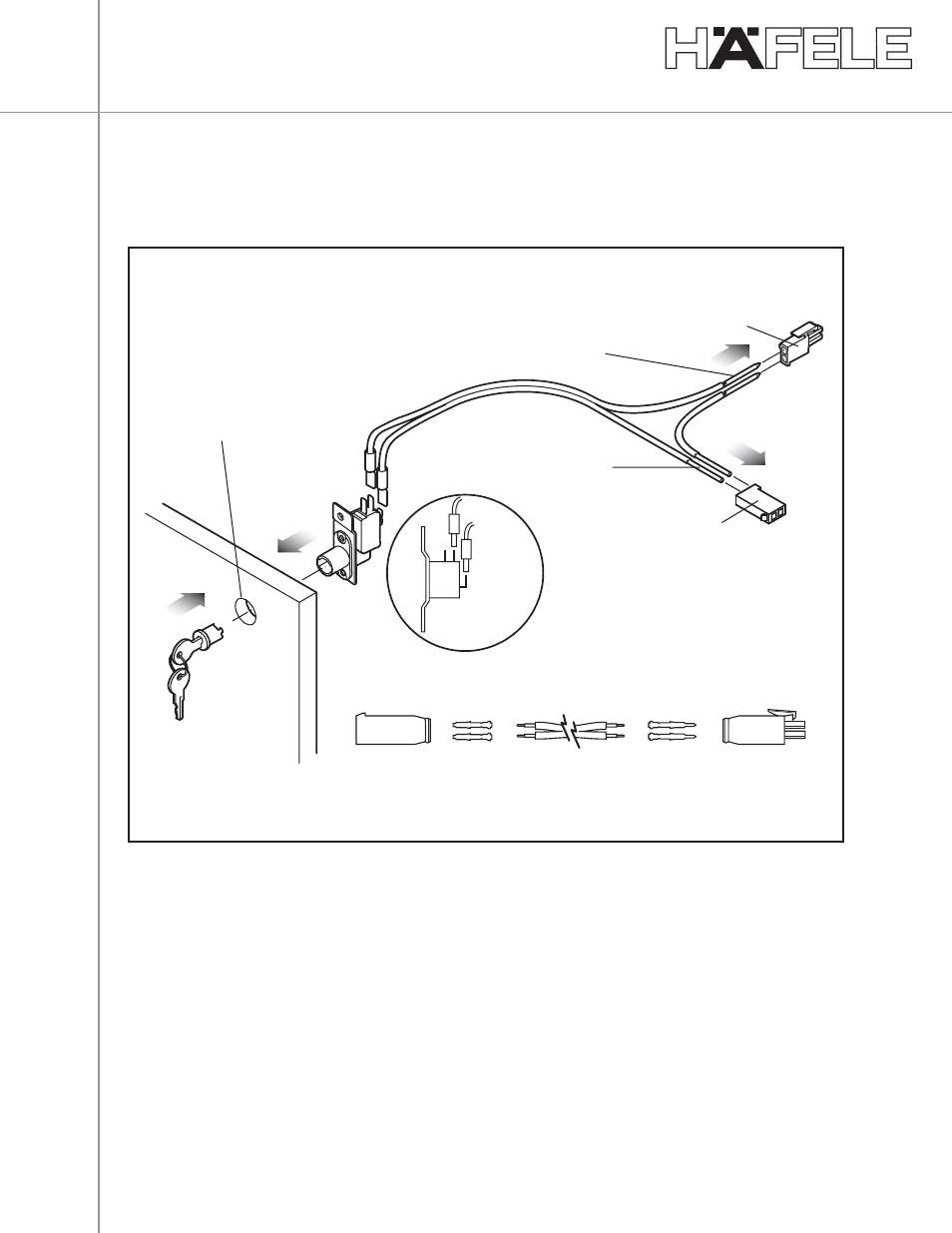

Female cap
connects to
distribution block
or EFL 1 lock
Male plug connects
to Power Supply
Sockets
(Insert only into cap)
Pins
(Insert only
into plug)
Requires 21/32"
diameter hole for
mounting
NC
NO
Common
Common
Normally open
Normally closed
Description: Rated: 12VDC, 6A
For use only with Häfele low voltage power
supply and furniture/cabinet electric lock.
Plug
Pin
Wire
Socket
Cap
Only use optional extraction tool, article number 825.99.010 in cases
where pins and sockets must be removed from plug and cap housing.
+
-
+
-
