IPDirector Version 5.6– User Manual – Part 4: Ingest
EVS Broadcast Equipment – May 2009
Issue 5.6.D
3
C
LIP
C
REATION
P
ANE
This pane, highlighted in pink on the above outline, provides the functions to
create a clip.
For detailed information on the clip creation, refer to section 1.4.1 ‘How to Create
a Clip’ on page 6.
IN Field
Timecode of the IN point.
Duration Field
Time interval between the IN and OUT point, i.e. clip duration.
OUT Field
Timecode of the OUT point.
Mark IN Button
When pressing the button, you set an IN point at the timecode shown in the
Timecode field. The timecode of the IN point is then displayed in the IN field.
Mark OUT Button
When pressing the button, you set an OUT point at the timecode shown in the
Timecode field. The timecode of the OUT point is then displayed in the OUT field.
R
ECORDER
P
ANEL
U
SE
D
EPENDING ON
XT M
ODE
LSM Mode
If an XT[2] server is in LSM base mode, the recorder panels are for information
only, the actual recording mode of each channel configured to record are set by
the LSM configuration. Each recorder channel will start recording and continue in
a loop record mode from start up. The recorder channel cannot be started or
stopped by an IPDirector workstation but the recorder Panel will show the current
recording timecode and its record status.

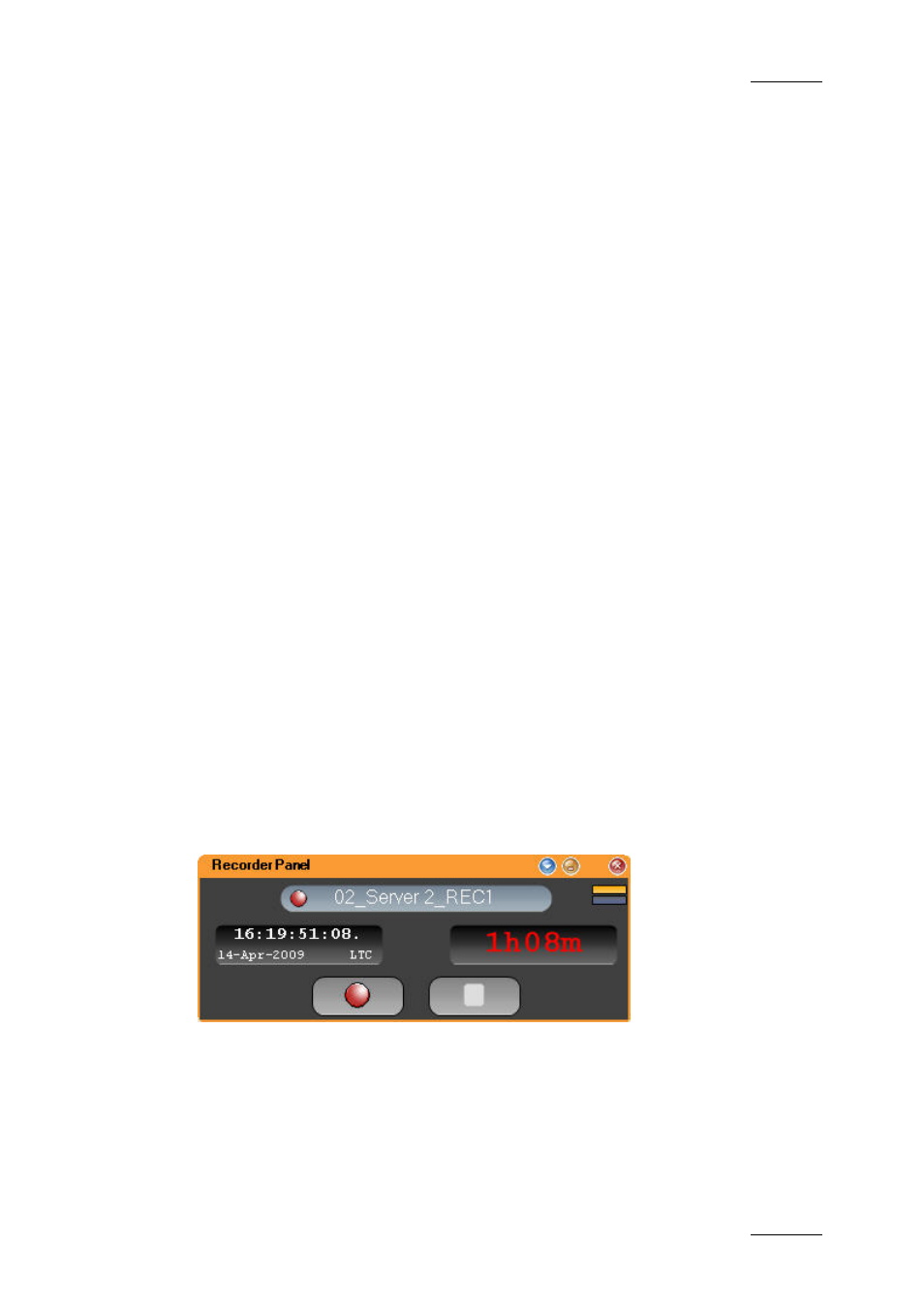

IPDP Spotbox mode
If XT[2] server IPDP Spotbox mode is used, the panel buttons are active and
recorders can be started or stopped using this panel.
