Xedio Suite Version 4.2 – User Manual - Xedio Cutter
EVS Broadcast Equipment – June 2012
16
Area
Description
1.
Video Display It displays the video material loaded on the Player.
Everything that is outside the video content has the skin
color. Letterboxed or pillarboxed video show black bars as
these mattes are part of the video signal.
Parameters related to the display are available via a
contextual menu.
See also the section 3.3 ‘Video Display of the Player’ on
2.
Track
Selection
Buttons
They allow the user to select the tracks to be taken into
account for the loaded material.
See also the section 3.4.5 ‘Clip Video and Audio Selection
Functions’ on page 22.
3.
Jog and Media
Bar
They allow the user to navigate in the loaded material, to
place IN, OUT and nowline points, as well as to modify the
playback speed of the material.
See also the section 3.4.2 ‘Media Bar and Jog Bar’ on page
4.
Clip Creation
Fields
They are used to create new clips, and get the exact
timecode of the nowline, IN and OUT points.
See also the section 3.4.3 ‘Clip Creation Functions’ on
page 21 and 3.4.4 ‘Timecode Information’ on page 21.
5.
Cue Point
Icons
The cue points make it possible to add reference points to
easily identify positions of interest in the loaded media.
See also the section 3.4.6 ‘Logs’ on page 24.
6.
Transport
Control Icons
They are used to play back the loaded media.
See also the section 3.4.1 ‘Player Transport Controls’ on
7.
Server
Recorder
Selection

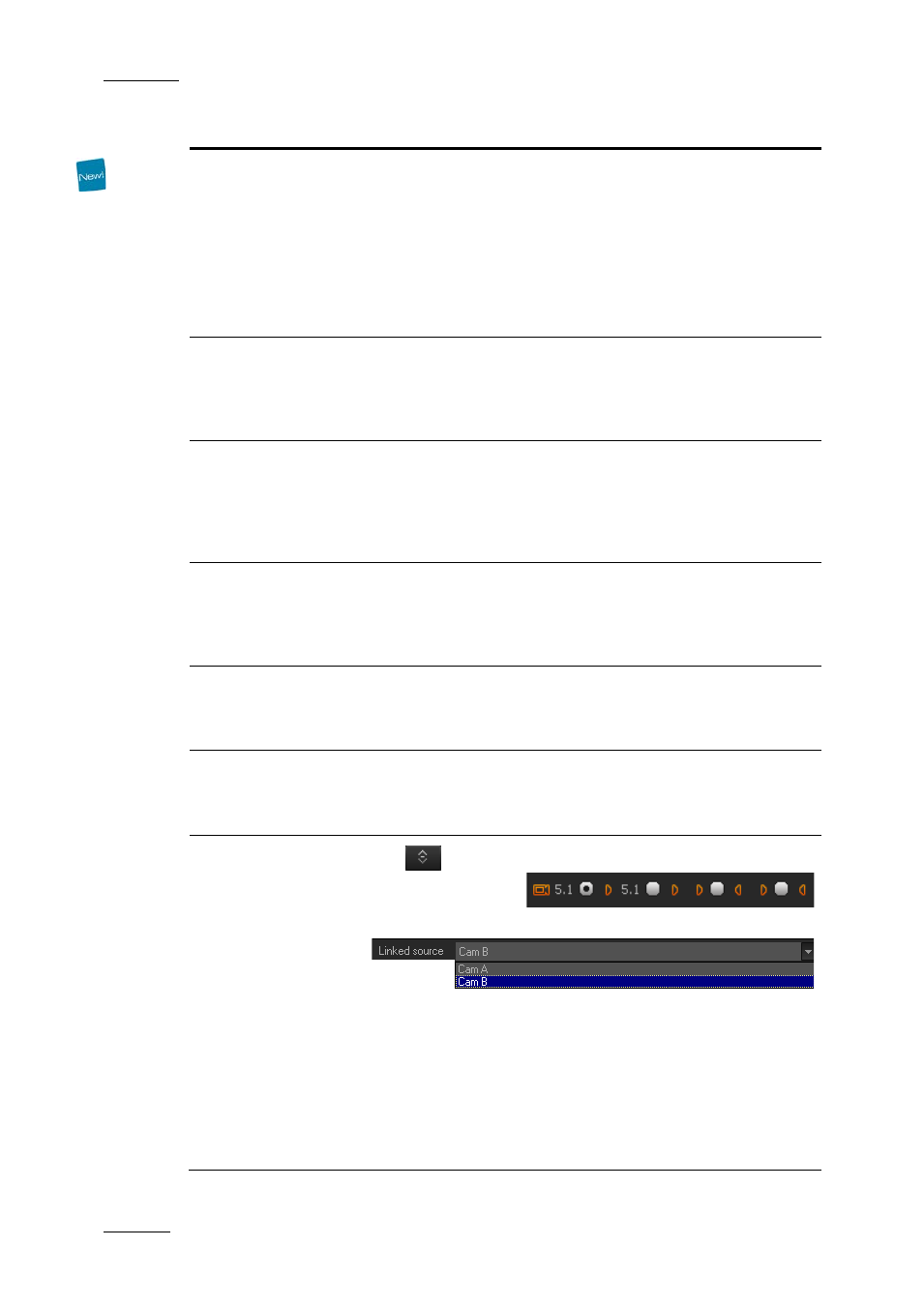

The
button acts as a toggle switch between the Track
Selection buttons
and the camera selection list
Several cases can occur:
•
If a record train of an EVS Video Server is loaded, this
allows the user to load another record train on the given
server.
•
If a clip belonging to a group of linked clips is loaded
(for example, clips created with ganged channels in
IPDirector), the list displays the various camera angles
and allows the user to select a clip linked to the one
