EVS Broadcast Equipment S.A.

Issue 2.6.A October 2013

8

OpenCube MXFTk® Front-End in Practice

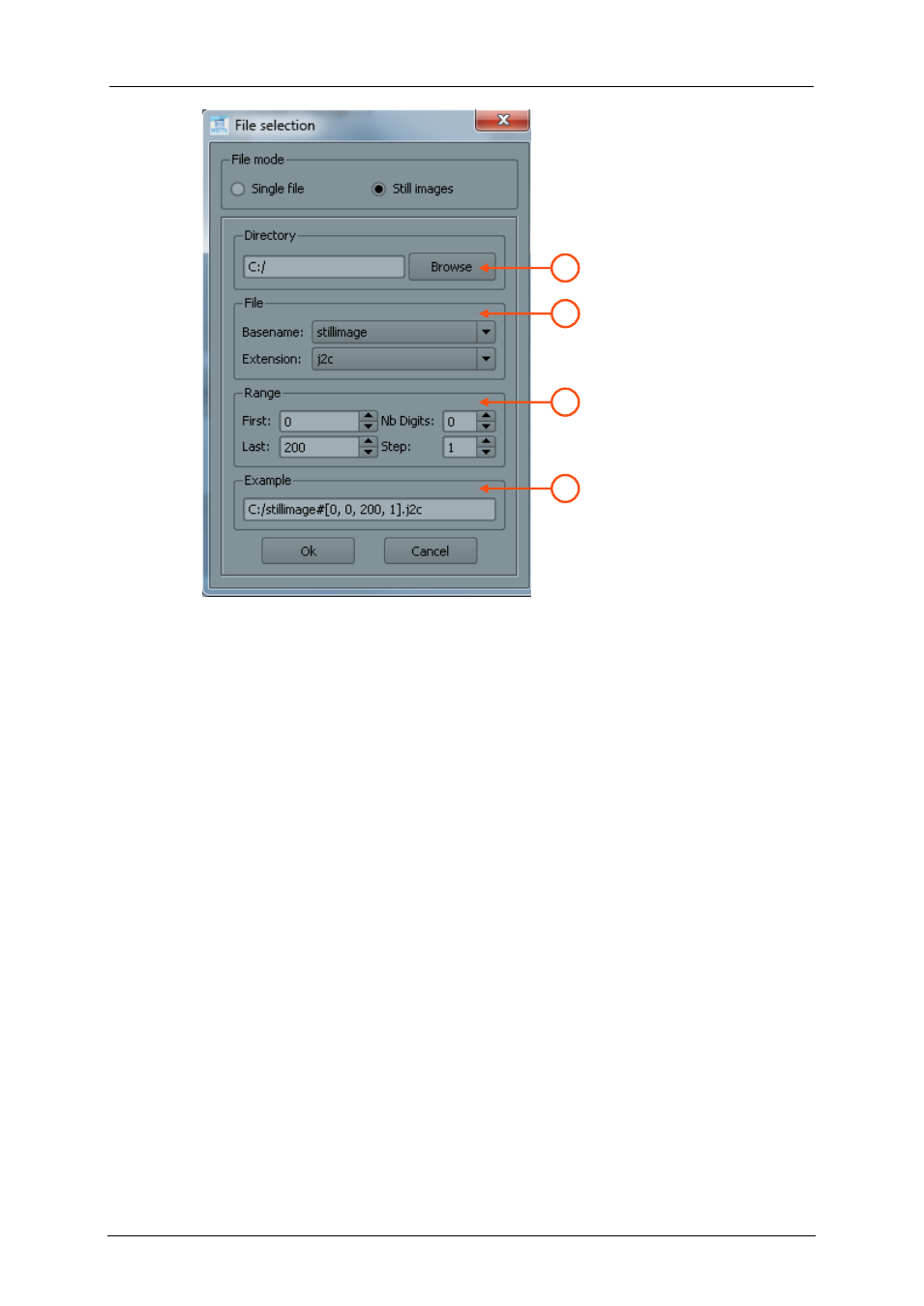

This dialog box is designed so that you can select a series of still images that will be
stored in the same directory and that are also numbered sequentially. You first need to
select the directory where the files are located. This step is performed by selecting the
Browse button (1). Once the selection is performed, the drop-down boxes (2) will be
refreshed and there you will be able to select the basename and extension of the files to
be inserted. Finally, in the “Range” control you will be able to set the number of the first
and last images as well as the step and the number of digits in the filename sequence.
For instance, in the previous screenshot the following series of file will be used:

C:/valid/test/sequence0002.j2k

C:/valid/test/sequence 0004.j2k

C:/valid/test/sequence 0006.j2k

C:/valid/test/sequence 0498.j2k

C:/valid/test/sequence 0500.j2k

1

2

3

4
