2. Select Assign Player Destination.

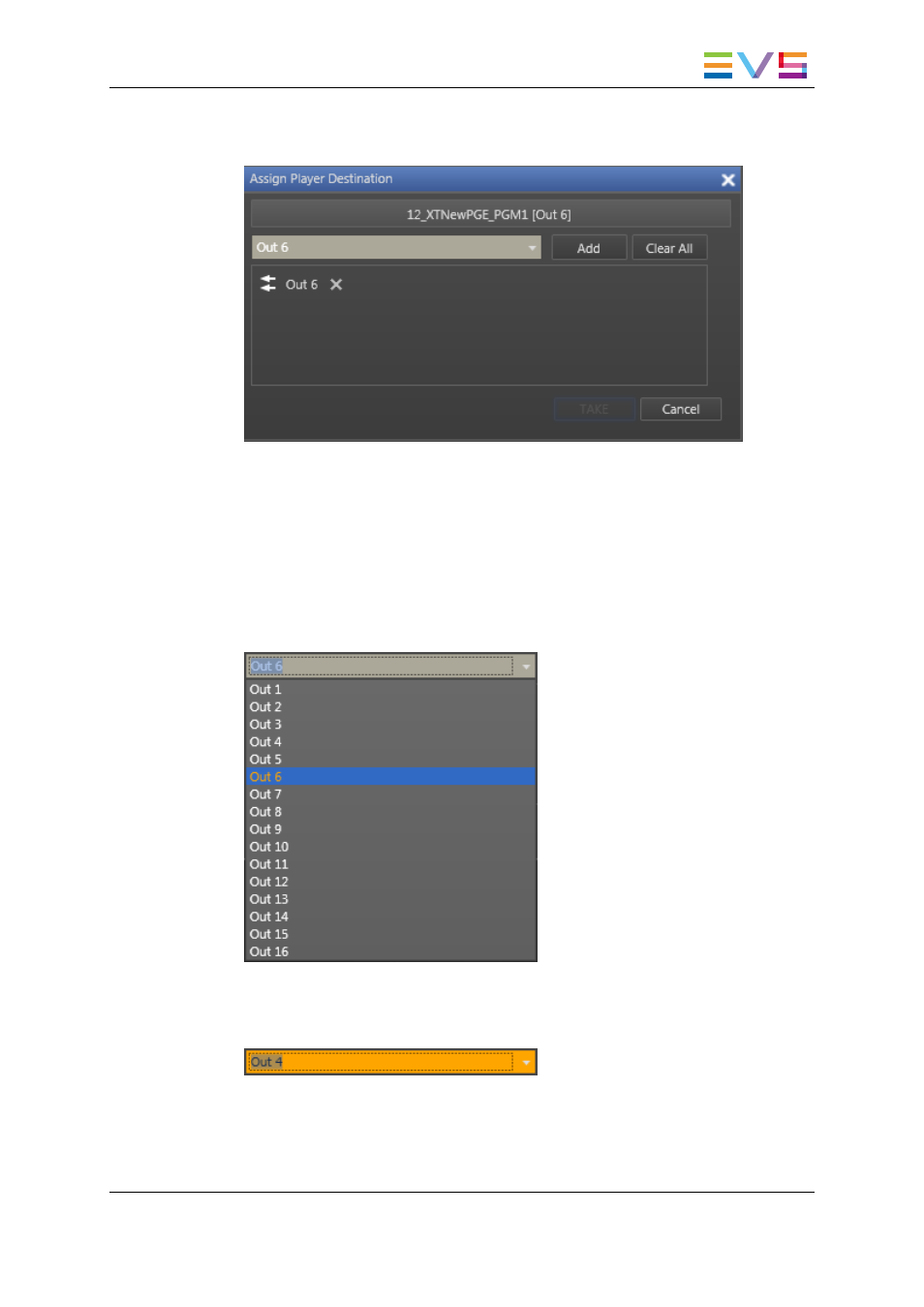

The Assign Player Destination window opens:

It lists all the router OUT ports already associated to the player channel.

3. To remove an association between a video router OUT port and the player channel,

click the X button next to the OUT port name.

4. To remove the association between all the video router OUT ports and the player

channel, click the Clear All button.

5. To select an OUT port to associate to the player channel, click the arrow next to the

Router OUT Port field.

The list of all the router OUT ports is displayed:

6. Select an OUT port.

The Router OUT Port field is highlighted to warn the users that the selection has
changed but has not been saved:

7. Click Add to confirm the selection.

The OUT port name is displayed in the list.
