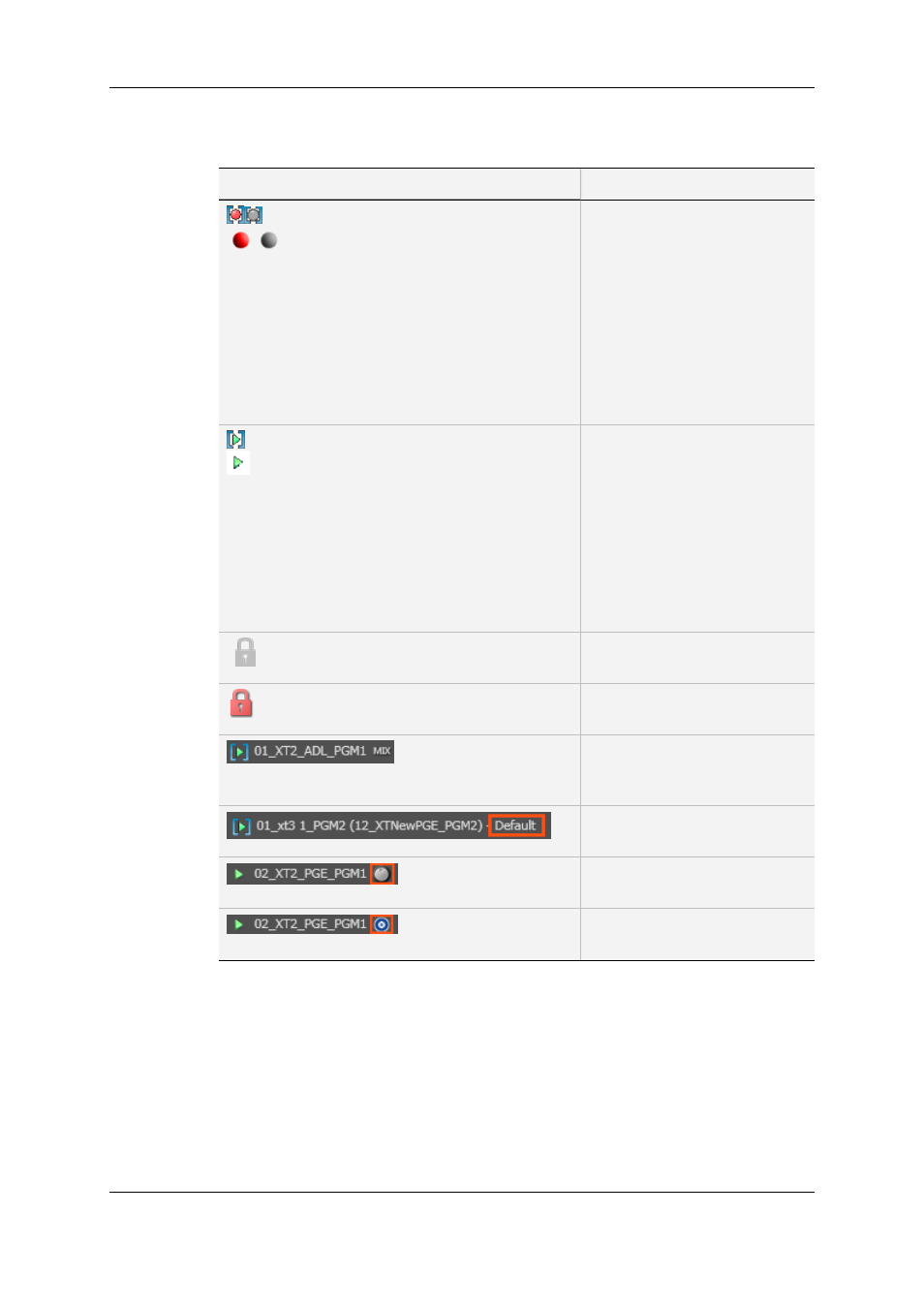

Player and Recorder Channels
Icon Description
Recorder channels.
Icon with brackets: recorder
channel not associated to a
Recorder Panel.
Icon without brackets:
recorder channel associated
with a Recorder Panel.
Red icon: recorder channel
being recording.
Black icon: recorder channel
stopped.
Player channels
Icon with brackets: Player
channel with no associated
control, Control Panel or Playlist
Panel.
Icon without brackets: Player
channel associated with an
IPDirector application (Control
Panel, Playlist Panel, IPLogger,
Database Explorer)
Channel locked from this
workstation.
Channel locked from another
workstation.
Player channel supporting the
"Mix on one channel"
functionality.
Player channel set as default
player.
Player channel controlled by a
ShuttlePRO device.
Player channel controlled by a
BEPlay device.
