Icon Description
timeline (Timeline mode)
Channel assigned to a group for use in
AB Roll Playlist interface
2.3. Recorder View
Display of the Recorder View

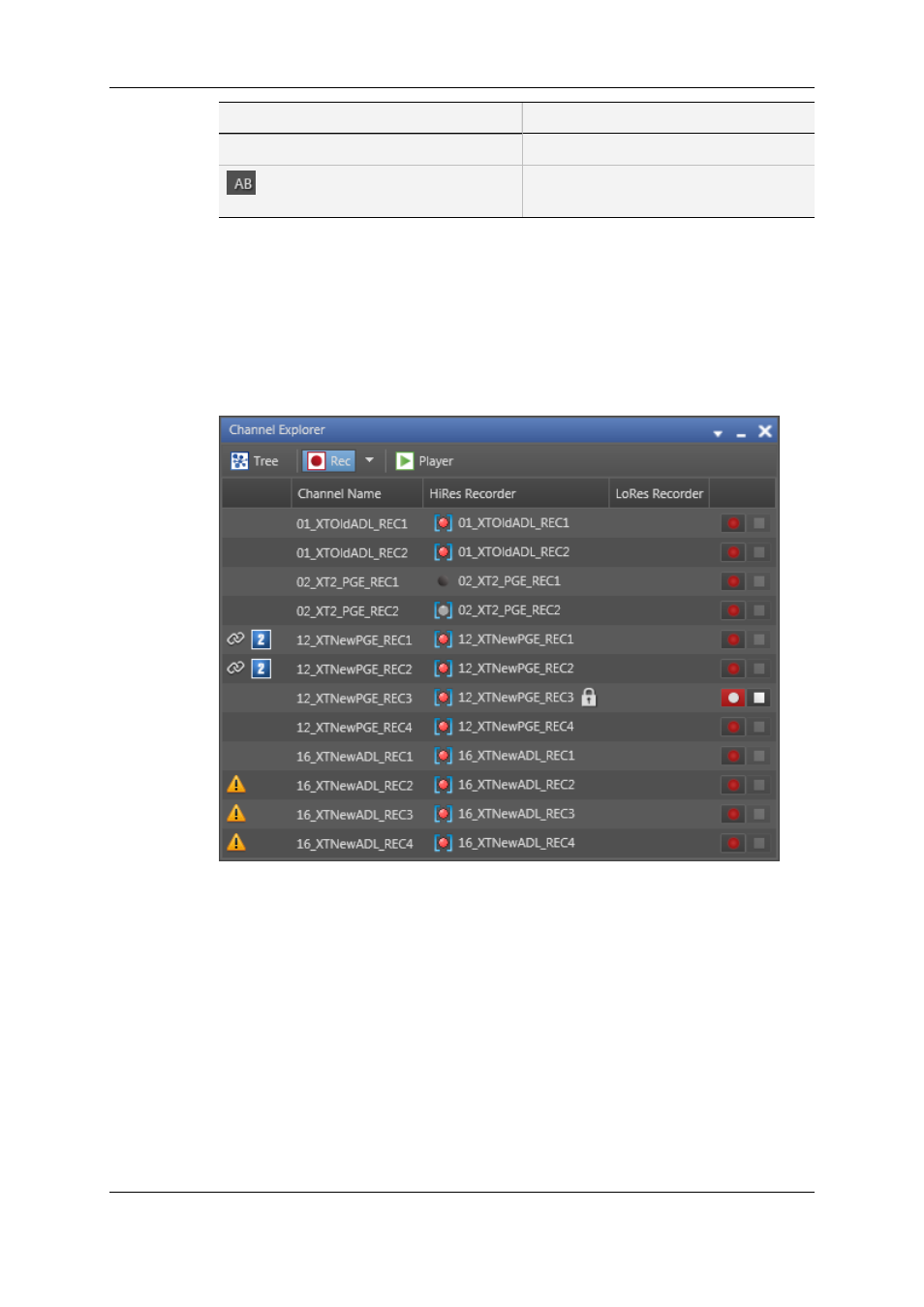

Click the Rec button to display the Recorder View:
See section "Channel Explorer Icons" on page 5 for a description of all the icons displayed
in the view.
Start and Stop buttons are available on the right for clip recording purposes.
Selection of Items to Display
From this view you can see the following items:
• high resolution and low resolution recorders
• high resolution and low resolution streams
Click the arrow to the right of the Rec button to select which items you want to display in
the Recorder view:
