Connecting to the Network and to Power
Inline Power Provided
If your network provides 802.3af compliant in-line power, the phone is powered through the network.
Inline Power Not Provided
If your network does not provide 802.3af compliant in-line power, you need to install the PoE inline power injector
(optional accessory).
1. On the top of your phone, connect the Ethernet cable (provided with your phone) into the network port marked
with
LAN .
2. Plug the other end of the Ethernet cable directly into the network jack on the wall.
1. On the top of your phone, connect the Ethernet cable (provided with your phone) into the network port marked
with LAN.
2. On the PoE power injector, plug the other end of the Ethernet cable into the network jack marked as indicated in the
illustration below.
3. On the PoE power supply, connect an additional Ethernet cable into the network port as indicated in the illustration below.
4. Plug the other end of the Ethernet Cable into the network jack on the wall.
5. Plug the PoE power injector into a power outlet.

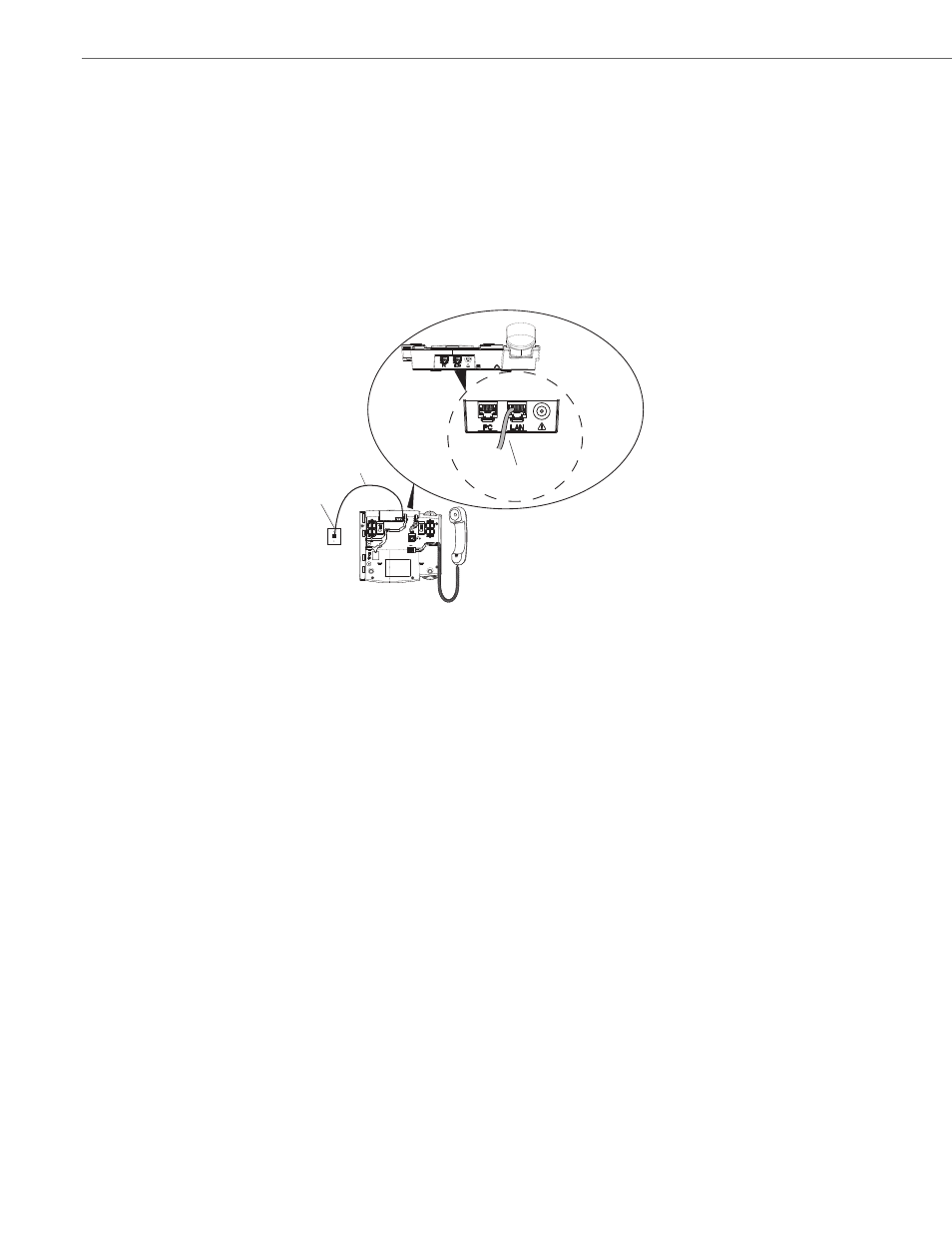

Ethernet
Cable
Network Jack
(if Inline
power provided)
To Network
