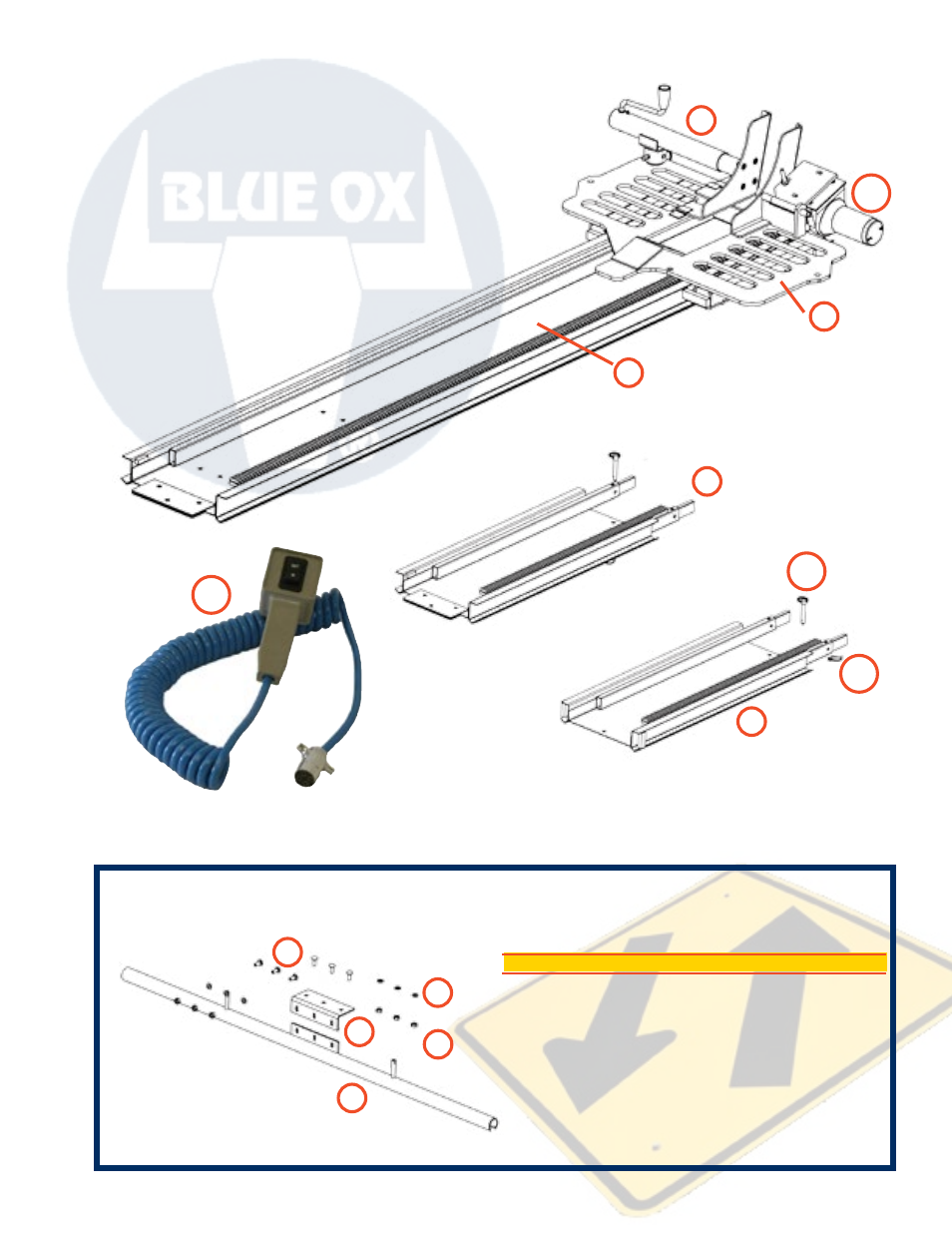

Parts Drawing
Page 3 of 7
Main Ramp and Tire Cradle
Figure 1-A
1
2
5
15
End Ramp Extension
Mid Ramp Extension
Figure 1-C
Figure 1-B
Figure 1-D
Corded Control
3
4
24
25
26
Pivot Tube
(packaged separately)
Parts List
Ref.# Oty. Part #
Description
1 1
Pivot Tube
2 6 201-0034 3/8-16 x 1 Carr. Bolt Grd. 5, ZP
3 6 203-0003 3/8 Flat Washer, ZP
4 6 202-0090 3/8-16 Hex Nylon Insert Lock Nut, ZP
5 1 102-6651 Ramp Adjustor Plate
6 12 290-0450 Plastic Washer (not shown)
Figure 1-E
1
2
3
4
5
See page 2 for complete parts list.
09/06
