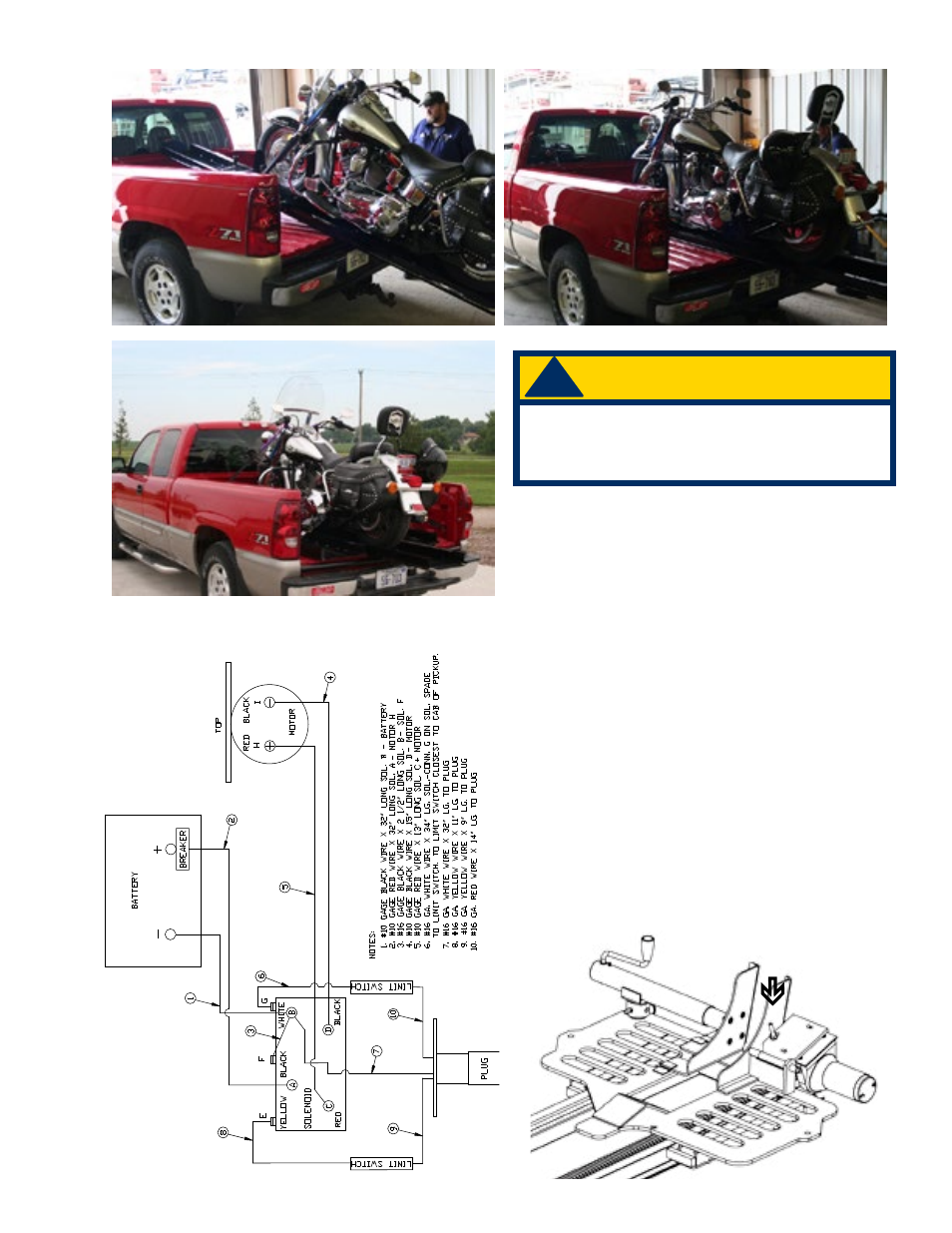

Page 10: Wiring schematic
Figure 12
Figure 14
Figure 13
TROUBLESHOOTING
• If the second of the two ramp extensions
does not install properly during assembly,
verify that they are in the correct positions.
See page 3 for an illustration and pages 4
and 5 for the installation.
• In the unlikely event that the gear for the
cradle on the main ramp should slip, simply
torque the center adjustment bolt to 20 ft.
lbs. to prevent future occurrences. See
Figure A below for the location.
• If necessary, stop the bike short of the
ramp pin when loading. Remove the pin
and load the bike. Do this if one tire covers
the ramp pin needing to be removed when
taking aprt the ramp.
09/06
Figure A
Tie down your motorcycle in a
minimum of four additional locations.
CAUTION
Page 7 of 7
Wiring Schematic
