22
Rev. 3
Remote Interface Reference
Serial Communication DIP Switch Settings
of only termination characters. Otherwise, the shared input/output
command buffer of the Model 135/136 may become corrupted. No other
form of flow control is supported.
4.1.3
Serial Communication DIP Switch Settings

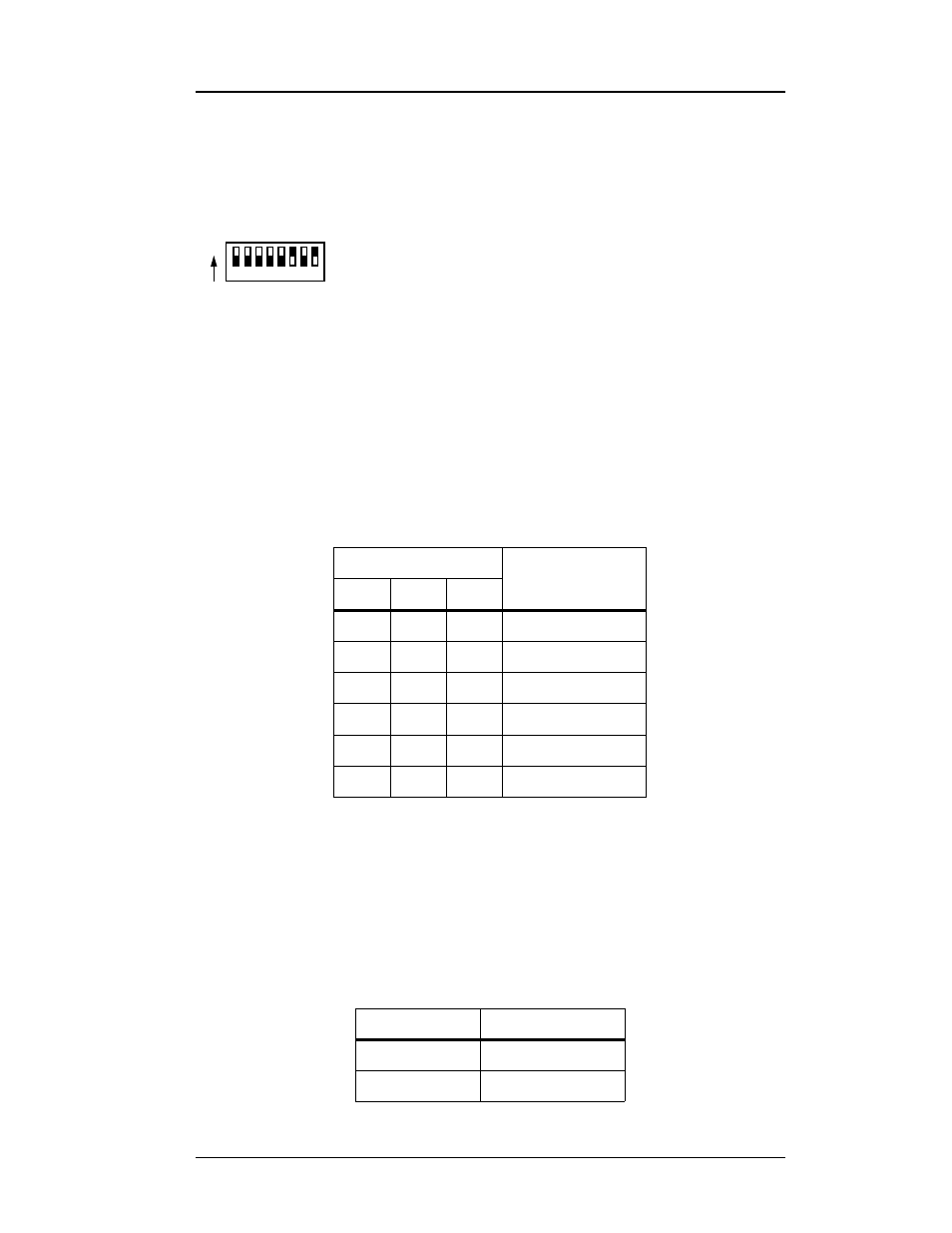

The 8 DIP switches located on the rear panel of the Model 135/136 are
used to control various parameters of the serial interface. Switches 6
through 8 control the baud rate of the interface. Switches 3 through 5 are
unused. Switch 2 controls the echo feature and switch 1 controls the data
logger function. Each of these features is fully discussed below.
4.1.3.1 Baud rate control
The Model 135/136 baud rate is controlled by switches 6 through 8 of the
communication DIP switch on the rear panel. The unit is shipped with the
baud rate set at 9600. The switch settings for various baud rates are (on =
1 or the up position):
4.1.3.2 Echo function
The Model 135/136 has an echo feature which is enabled or disabled by
communication DIP switch 2. When the echo function is enabled, the
Model 135/136 will echo the incoming command characters back to the
transmitting device. The echo feature is useful when using an interactive
terminal program on a host computer for communicating with the Model
135/136 (however, most terminal programs support a local echo feature).
The settings are:
DIP switch
Baud rate
6
7
8
off
off
off
300
off
off
on
600
off
on
off
1200
off
on
on
2400
on
off
off
4800
on
off
on
9600
DIP switch 2
Function
on
Echo On
off
Echo Off
1
0
1 2 3 4 5 6 7 8
ON
