ASRock FM2A85X Extreme4 Motherboard
English

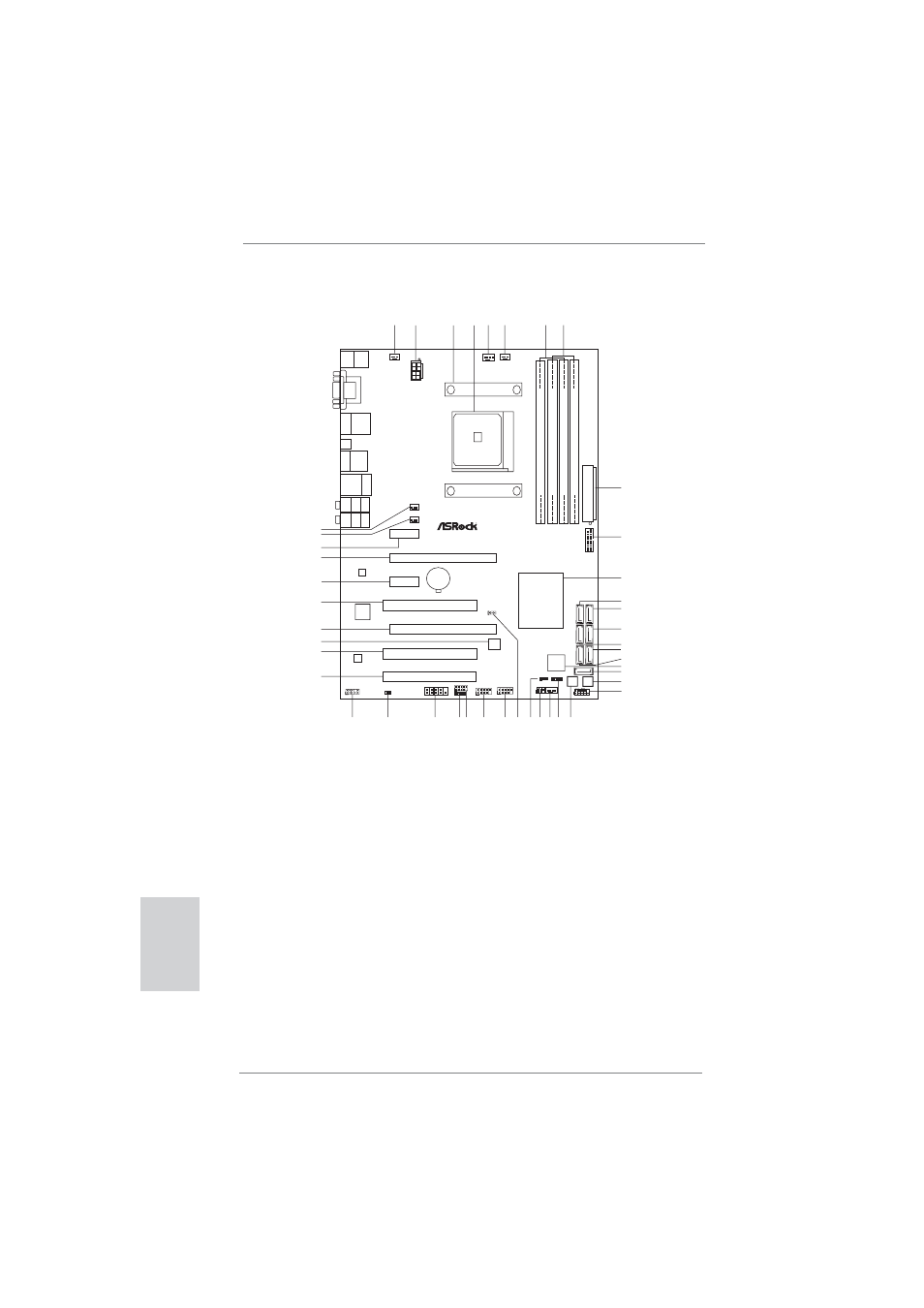

Motherboard Layout
1
Power Fan Connector (PWR_FAN1)
22
Power Switch (PWRBTN)
2
ATX 12V Power Connector (ATX12V1)
23
Chassis Speaker Header (SPEAKER1)
3
CPU Heatsink Retention Module
24
Chassis Fan Connector (CHA_FAN1)
4
CPU Socket
25
Infrared Module Header (IR1)
5
CPU Fan Connector (CPU_FAN1)
26
Power LED Header (PLED1)
6
CPU Fan Connector (CPU_FAN2)
27
Clear CMOS Jumper (CLRCMOS1)
7
2 x 240-pin DDR3 DIMM Slots
28
USB 2.0 Header (USB7_8)
(Dual Channel A: DDR3_A1, DDR3_B1)
29
USB 2.0 Header (USB5_6)
8
2 x 240-pin DDR3 DIMM Slots
30
USB 2.0 Header (USB3_4)
(Dual Channel B: DDR3_A2, DDR3_B2)
31
Consumer Infrared Module Header (CIR1)
9
ATX Power Connector (ATXPWR1)
32
COM Port Header (COM1)
10
USB 3.0 Header (USB3_7_8)
33
HDMI_SPDIF Header (HDMI_SPDIF1)
11
Southbridge Controller
34
Front Panel Audio Header (HD_AUDIO1)
12
SATA3 Connector (SATA3_2)
35
PCI Slot (PCI3)
13
SATA3 Connector (SATA3_1)
36
PCI Slot (PCI2)
14
SATA3 Connector (SATA3_3)
37
SPI Flash Memory (64Mb)
15
SATA3 Connector (SATA3_4)
38
PCI Express 2.0 x16 Slot (PCIE4)
16
SATA3 Connector (SATA3_6)
39
PCI Slot (PCI1)
17
SATA3 Connector (SATA3_7)
40
PCI Express 2.0 x1 Slot (PCIE3)
18
Dr. Debug (LED)
41
PCI Express 2.0 x16 Slot (PCIE2)
19
SATA3 Connector (SATA3_5)
42
PCI Express 2.0 x1 Slot (PCIE1)
20
Reset Switch (RSTBTN)
43
Chassis Fan Connector (CHA_FAN2)
21
System Panel Header (PANEL1)
44
Chassis Fan Connector (CHA_FAN3)
