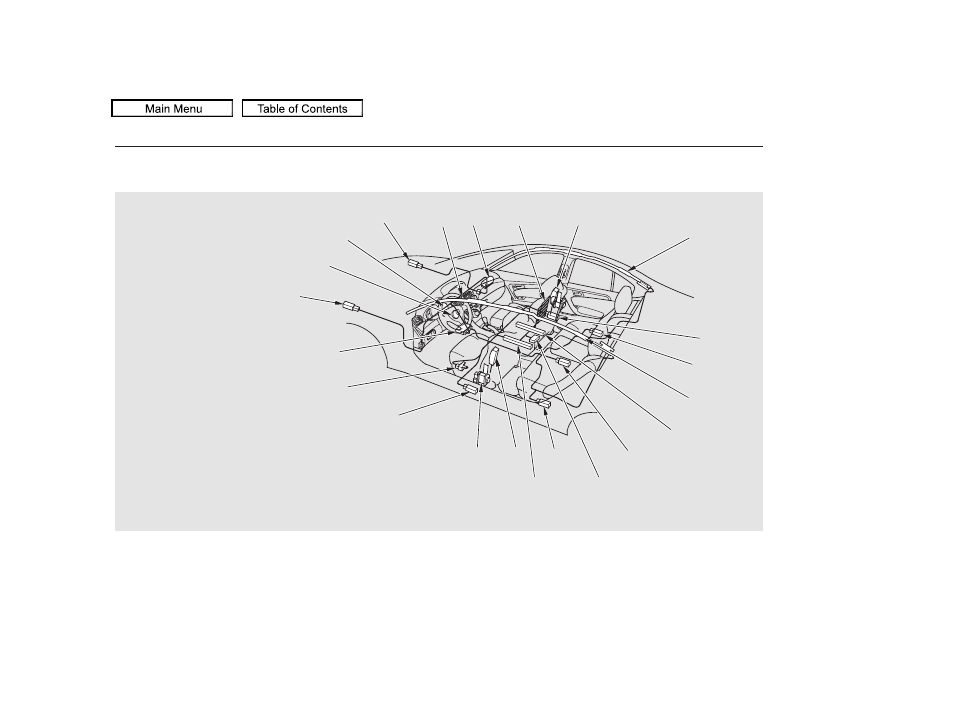

Airbag System Components
Additional Information About Your Airbags
24
(3)
(4)
(5)
(6)
(1)
(15)
(8)
(9) (2)
(14)
(8)
(10)
(13)
(16)
(10)
(13)
(14)
(7)
(12)
(11)
(5)
(7)
(15) Supplemental Restraint System (SRS) Indicator
(16) Safing Sensor
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (First)
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(11) Occupant Detection System (ODS) Sensors
(12) Front Passenger’s Weight Sensors Control Unit/
ODS Sensors Control Unit
(13) Side Impact Sensors (Second)
(14) Side Curtain Airbags
09/07/29 16:46:14 31TK4610_029
2010 TL
