Configures the SATA as IDE or AHCI mode.
• IDE
• AHCI
This option configures the Serial ATA drives as Parallel ATA physical storage device.
This option configures the Serial ATA drives to use AHCI (Advanced Host Controller
Interface). AHCI allows the storage driver to enable the advanced Serial ATA features
which will increase storage performance.
SATA Controller(s)
Enables or disables SATA controller.

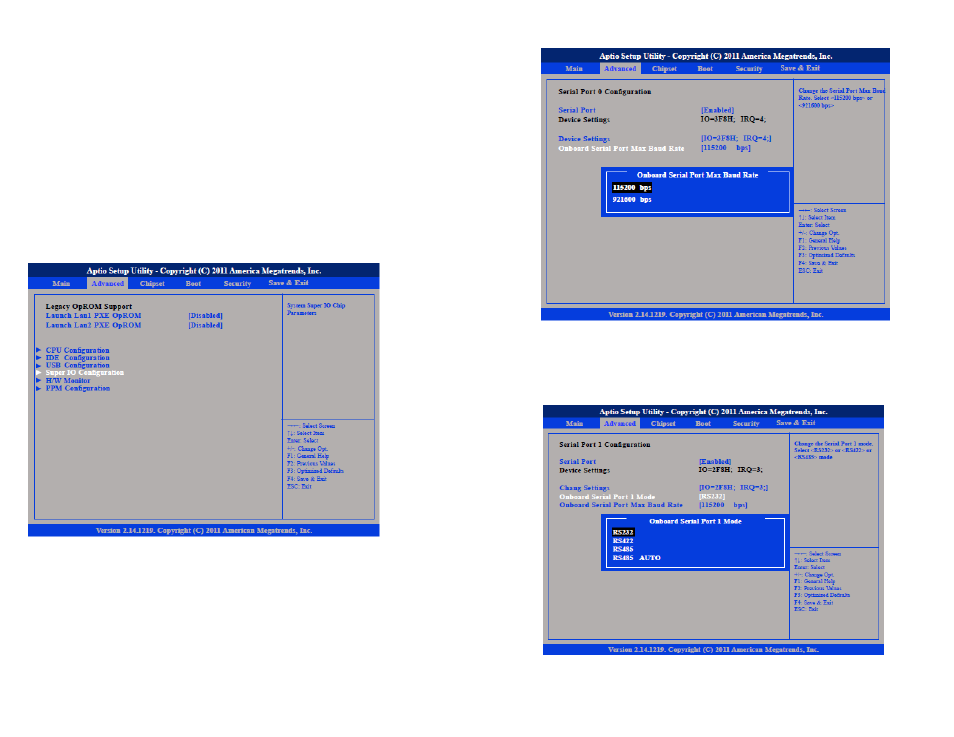

Super IO Configuration
This section is used to configure the I/O board Super I/O chip.
Serial Port 0 Configuration
This field configures the maximum baud rate of the serial port 0, the options are 115200
bps and 921600 bps.
Onboard Serial Port Mode
This field is used to configure the mode of serial port 1 as RS232, RS422, RS485 or
RS485 AUTO.
