Acura Embedded PowerBrick 5.0 User Manual
Acura Embedded Notebooks

PowerBrick 5.0-i3 Quick Quide
Acura Embedded Systems Inc. Updated by July 15/13
PowerBrick™5.0-i3
Quick Guide
Edition 1.0
Small and rugged
Industrial Computer
with Intel® Gen3 Core™ i3
Acura Embedded Systems Inc.
1. OVERVIEW
PowerBrick5.0-i3 is an Intel® Generation3 Core™i3 system with 1.6 GHz processor
speed. As a rugged and powerful computer, PowerBrick 5.0-i3 comes loaded with an
Intel® HD Graphics 4000 accelerating video chip, two fast SSD hard drives with
Removable Dual Hot Swappable SATA Storage slots
and up to 8 GB memory, all at
a competitive price. It is built for great performance in a variety of applications and
environments.The design focuses on elements essential for industrial use wile
excluding unneccesary hardware. The architecture is modular which allows for easy
upgrading and expansions.
2. MAIN FEATURES
•

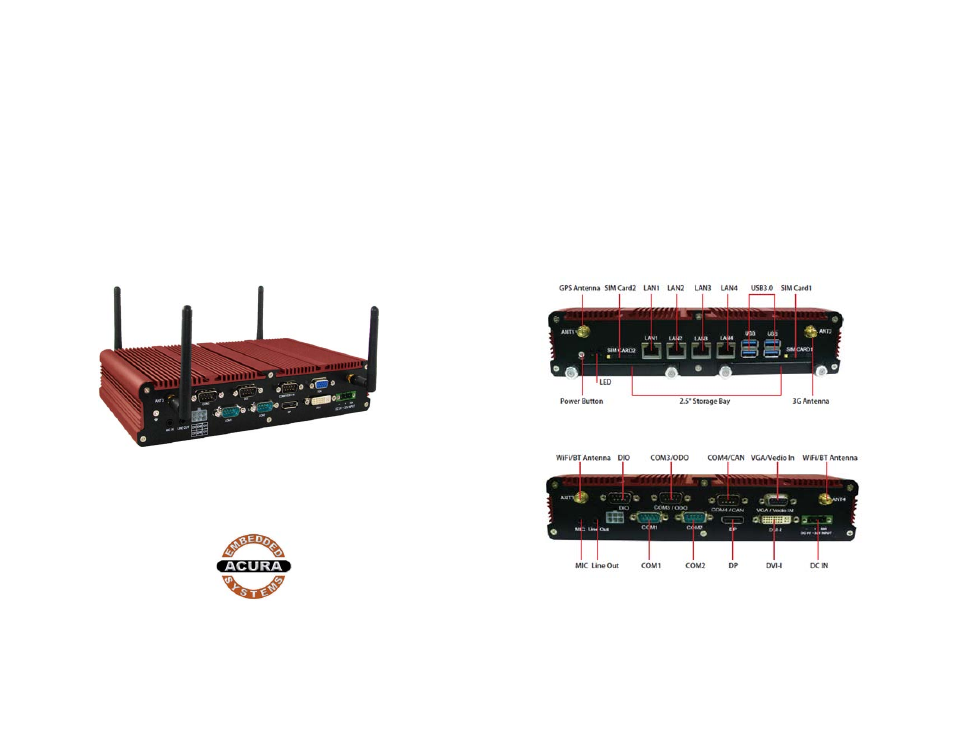

Power Brick 5.0-i3 front Interface
•
Power Brick 5.0-i3 rear Interface
System
CPU
Intel Gen 3 Core i3
‐3217UE 1.6GHz
Chipset
QM77
Memory
1 x DDR3 1066/1333/1600 MHz SO
‐DIMM up to 8 GB
LAN Chipset
Intel I210
‐AT Gb/s Ethernet Controllers Onboard
Support PXE and WOL
Audio
Realtek ALC662 HD Codec onboard
1
