Chapter 1: Product Introduction
Overview
Key Features
• On-board Intel® Atom™ Dual Core D2550 processor, 1.86 GHz
• Intel® NM10 Express chipset
• 1x DVI-I & 1x HDMI display output
• Dual Intel® 82574L GbE LAN ports
• 2x RS232/422/485 and 2x RS232
• 6x USB2.0
•
1x external CFast socket
•
1x mini-PCIe with two antenna holes
•
Support 9-36V DC input
• Supports ATX power mode, WoL, LAN teaming and PXE function
Hardware Specifications
CPU Support
▪ On-board Intel® Atom™ Dual Core processor D2550, 1.86 GHz, 1M L2 cache
▪ Intel® NM10 Express chipset
Main Memory
• 1x DDR3 SO-DIMM sockets, support up to 4G DDR3-800/1066 SDRAM, un-
buffered and non-ECC
I/O Interface-Front
• ATX power on/off switch
•
HDD access/power status LEDs
• 4x COM ports (COM2 & 3: RS232/422/485)
• 2x USB2.0 port
• Audio jack (speaker-out & mic-in)
•
2x antenna holes
Device
•
1x 2.5” HDD drive bay
• 1x External CFast Socket
I/O Interface-Rear
▪ 2x Intel® 82574L GbE LAN port
▪ 4x USB2.0 port
▪ 1x HDMI
▪ 1x DVI-I (support VGA & DVI-D display via cable)
▪ 1x 2-pin DC input, Support 9-36V DC input
▪ 1x external screwed type CFast socket
▪ 1x mini-PCIe socket (support optional Wi-Fi or 3.5G module)
Power Requirements
▪ Support 9-36V DC input
▪ 1x optional 12V, 60W power adapter
Dimensions
▪ 185mm(W) x 131mm(D) x 54mm(H) (7.28”x 5.2”x 2.13”)
Construction
▪ Aluminum chassis with fan less design
Environment
▪ Operating temperature: Ambient with air flow: -5°C ~ 55°C (according to IEC60068-2-1,
IEC60068-2-2, IEC60068-2-14)
▪ Storage temperature: -20°C ~ 80°C
▪ Relative humidity: 10% to 93% (non-Condensing)
▪ Shock protection: 20G, half sine, 11ms, IEC60068-2-27
▪ Vibration protection
Random: 0.5Grms @5~500 Hz according to IEC68-2-64 Sinusoidal:
0.5Grms @5~500 Hz according to IEC68-2-6
Certifications
▪ CE approval
▪ FCC Class A

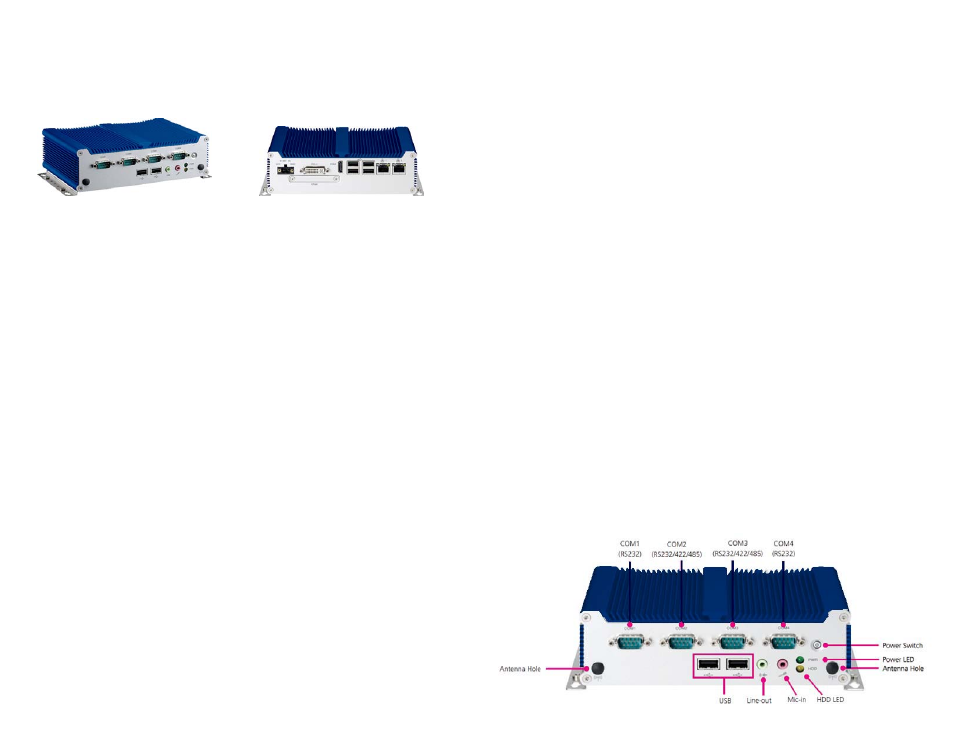

Knowing Your PowerBrick ATOM Front Panel
1
2
