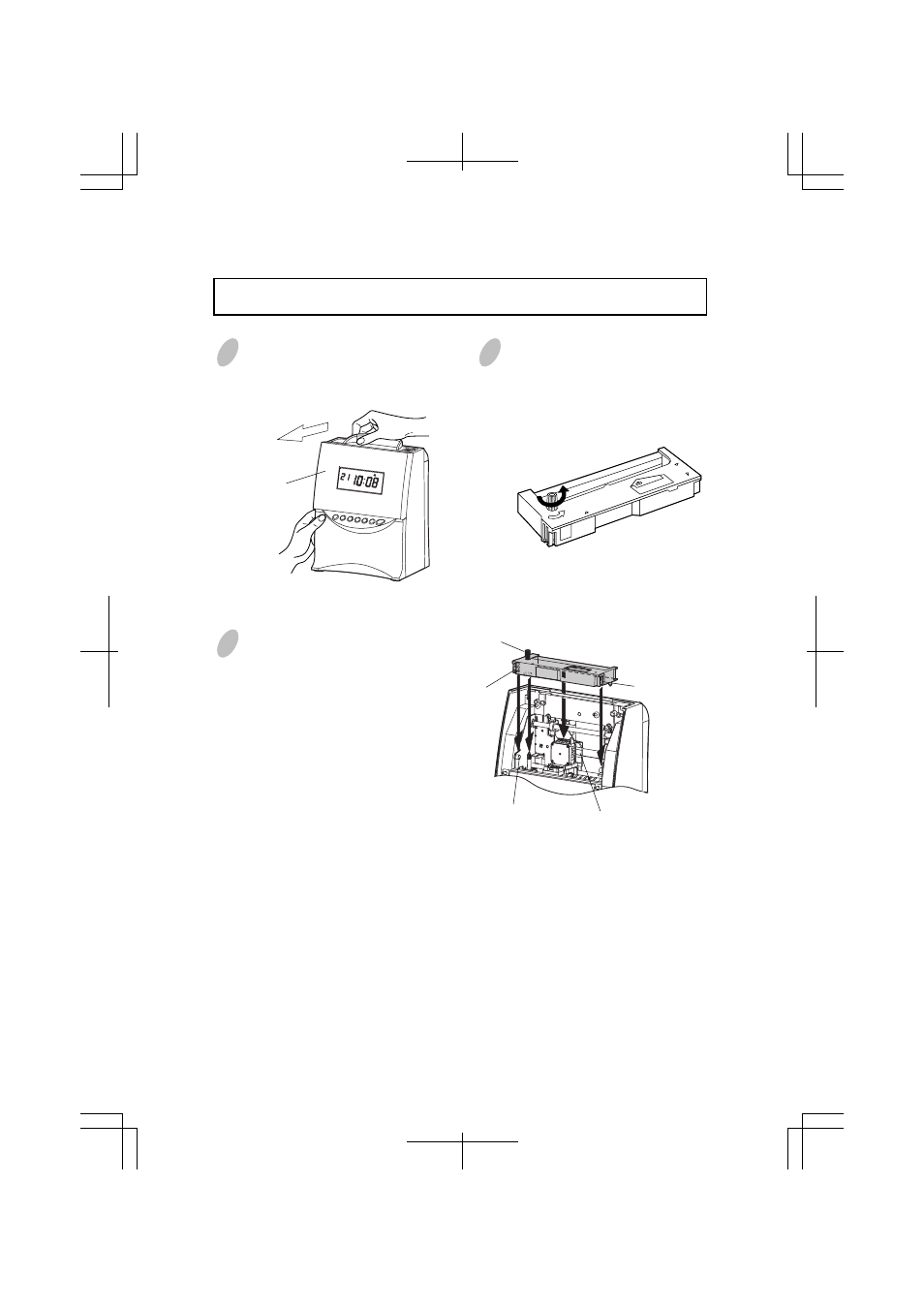

Installing the Ribbon Cassette
1
Unlock cover and pull up the top
side of the card insertion slot and
pull it towards you.
2
Turn the knob on the cassette in the
arrow-indicated direction to make the
ribbon taut.
3
To insert the ribbon cassette inside
the unit, thread the ribbon between the
ribbon mask and the print head (See
drawing next page). Slide the clasps
on the lower side of the cassette into
projections on the unit.
Keep on pushing in the ribbon cassette
until the clasps at both sides catch and
the cassette snaps into position. If it is
difficult to insert the ribbon cassette,
try it while turning the knob.
Knob
Clasp
Clasp
Print head
Make sure the power is on before installing.
9
Front Cover
Projection
3
