Wall Mounting the ES1000
The ES1000 may be platform or wall mounted using the wall mount screws supplied.
To mount unit on wall, take the following steps:
The supplied screws
are intended for use
on a thick wooden
wall or wooden
column. Do not use
them on any other
materials. There is
a danger that the
unit may come off if
used on other
materials.
Install wall mount screws (supplied) into a wall 3.94 inches (10 cm) apart.
Be sure to keep about 0.12 inch ( 3 mm) of the screw head out of the wall.
You can use a supplied template to fix position of two screws.
Where to Install the ES1000
Avoid placing the unit in environments that are:
• humid or dusty
• exposed to direct sunshine
• subject to frequent or continuous vibrations
• outside the temperature range between -5˚ and 45˚ C (23˚ to 113˚F)
• affected by chemicals or ozone

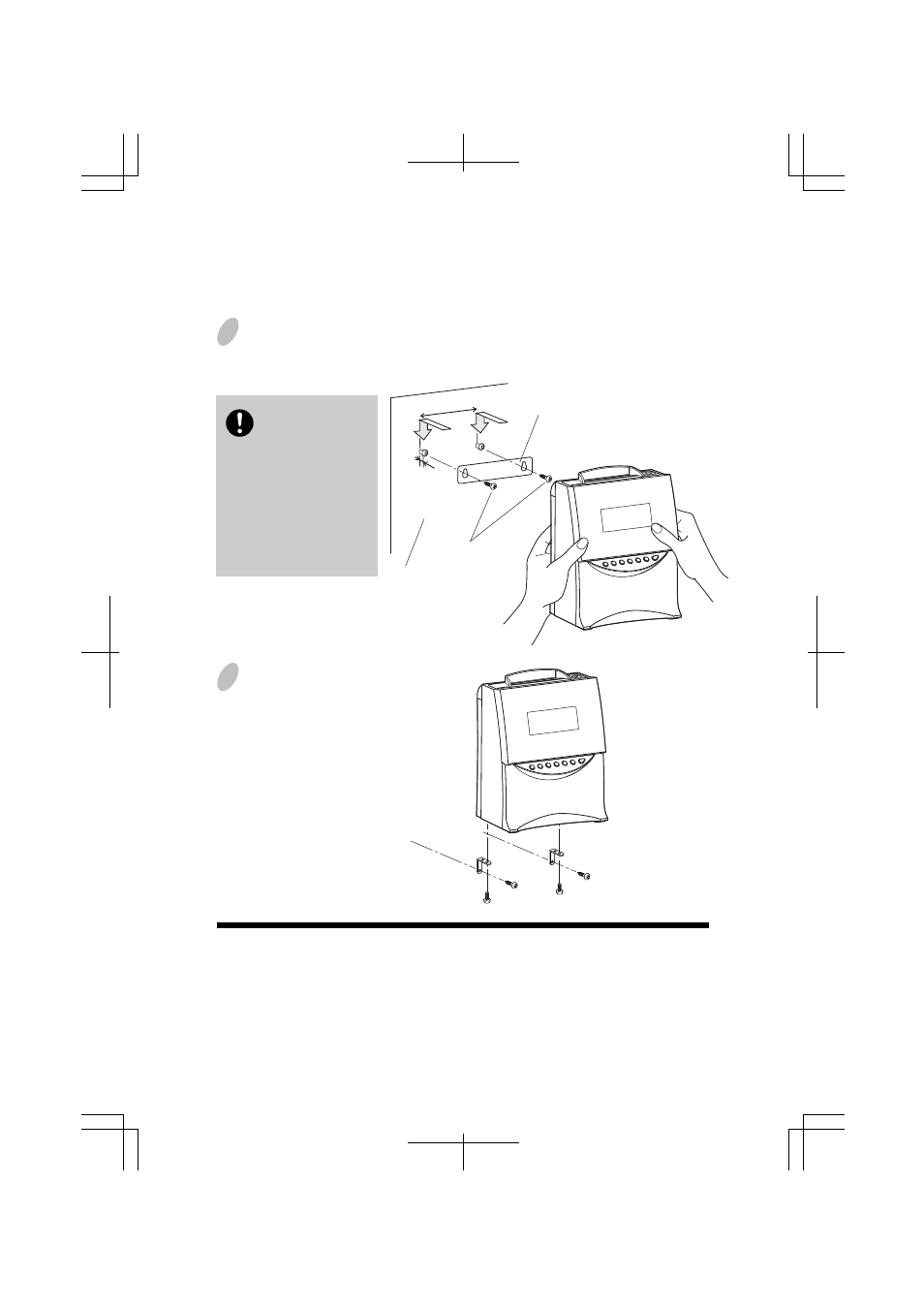

Mount the wall mount
brackets as shown on the
right.
1
2
11
5
0.12"(3mm)
3.94" (1
0cm) Wall Mount Template
Wall
Screws
