19

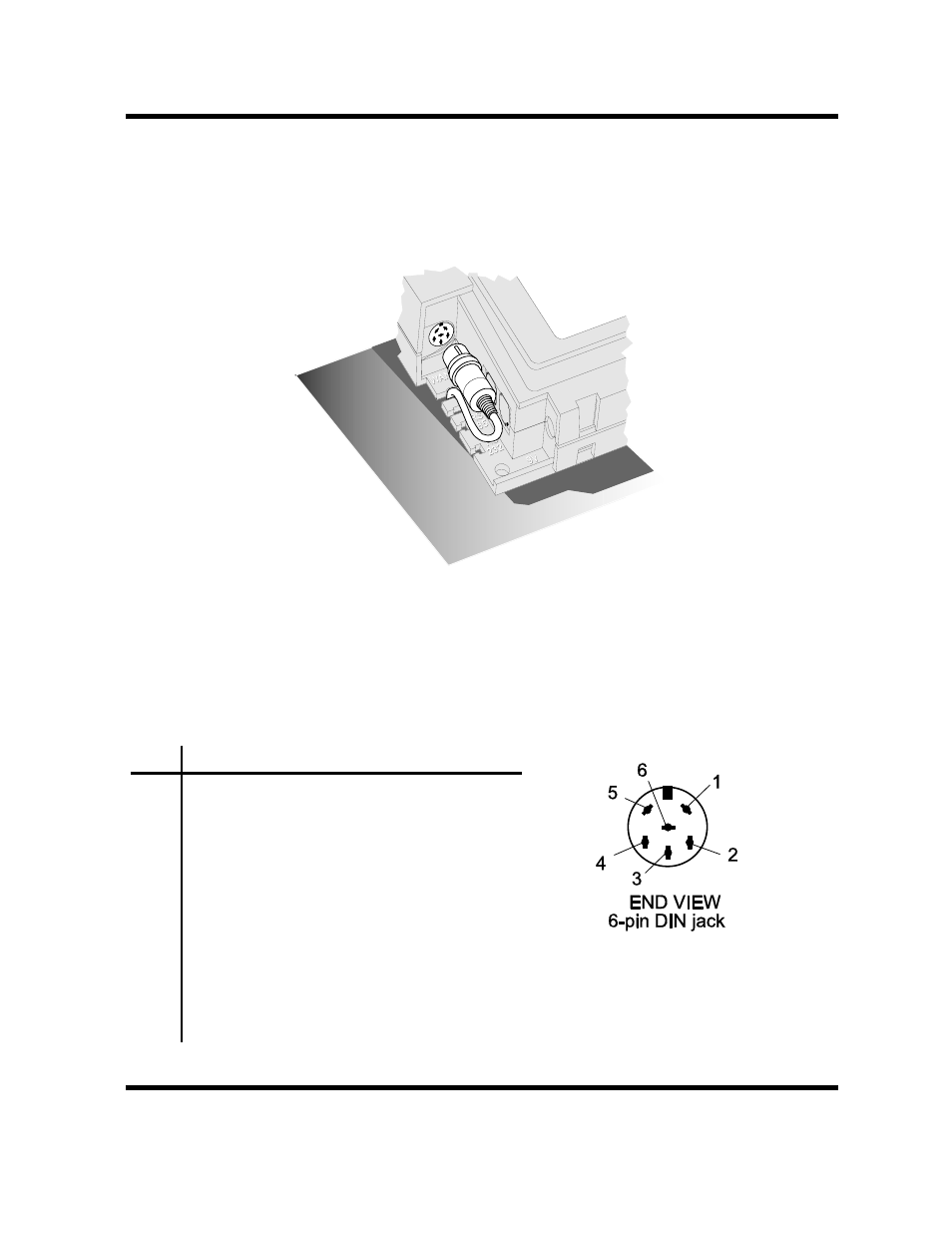

Wand Port
The Wand port is located on the left side of the terminal. It is a 6-pin
DIN port that accepts a circular DIN connector.
The Wand, when connected, uses only 3 of the 6 pins available on the
DIN connection. If a Barcode Gun (non-contact reader) is used, the
center pin supplies additional power. The terminal uses 2 of the
remaining pins as logic lines for external controls. See pin-out and
function table below:
Pin Function
1 +5 Volts
2 Signal Control Logic Line
(
Digital IO #0 - Output Only)
3 Barcode Wand Receive Data
4 Ground
5 Access
Logic Line
( Digital IO #1 - Output Only)
6 12 Volt Unregulated
(Maximum current draw 220 mA with 3A Transformer Only)
