Page 14
14
See Page 24 for USB to RS-232 Adaptor.
(Use DB-25 RS-232 Host Cable Assy. See pp. 24-25)

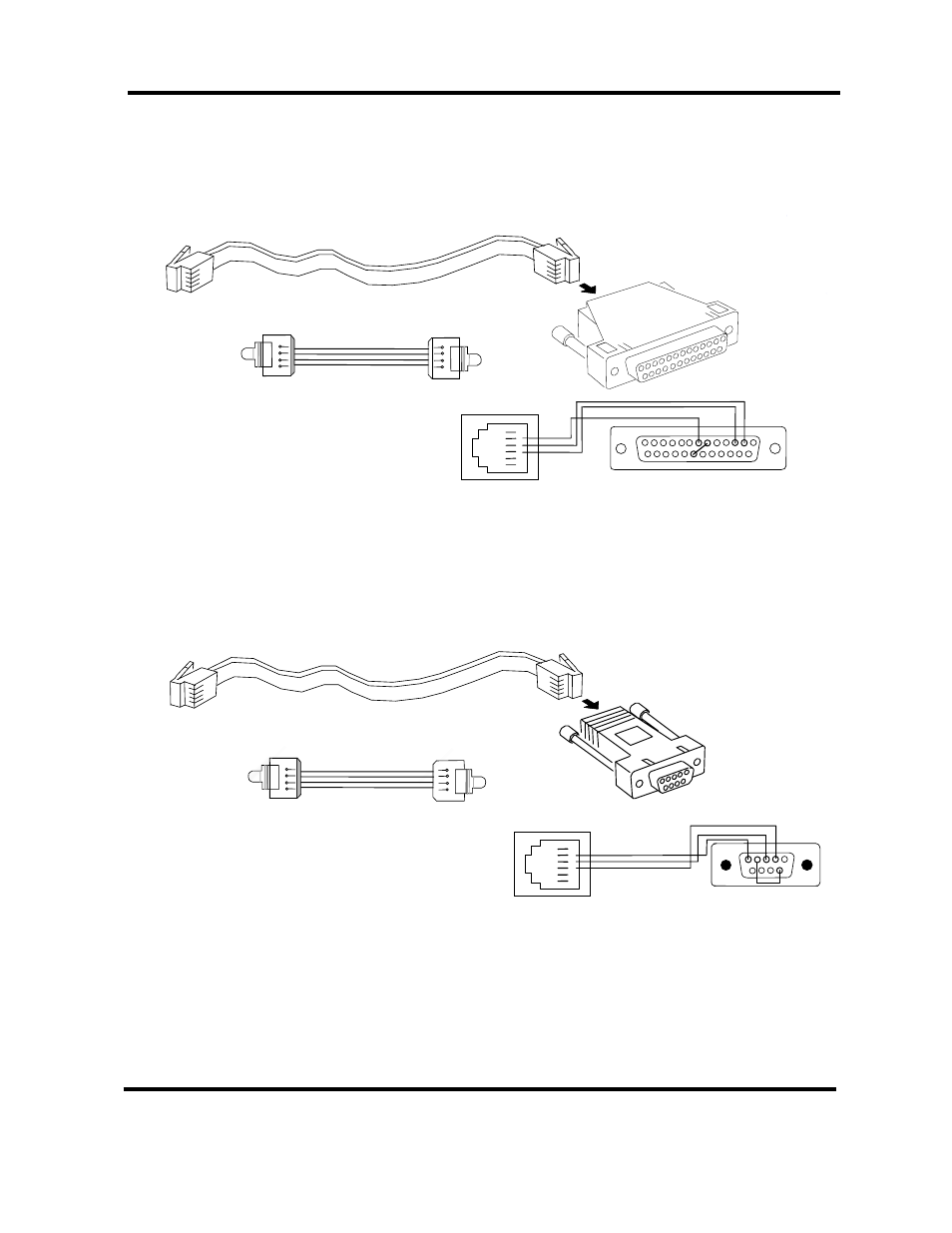

Cabling to Host Computer with DB-25 Port
NOTE: Schematic connections are
shown from END VIEW (as viewed
from the outside of the connectors).
Schematic
Schematic
(Use DB-25 RS-232 Host Cable Assy. See pp. 24-25)
Cabling to Host Computer with DB-9 Port
Schematic
DB-9 to RJ-11 Adaptor
(Adaptor A)
“Standard” Modular Cable
DB-25 to RJ-11 Adaptor
(Adaptor A)
NOTE: Schematic connections are
shown from END VIEW (as viewed
from the outside of the connectors).
Schematic
