Proximity Readers
Two Proximity Readers are available on the DC7000. The first
Proximity Reader uses 125kHz, Read Only, ISO Proximity Card, 64 Bit
Encoding (Manchester). Serial Output Data String contains a 9 Bit
Header, 40 Bits of Data, 14 Parity Bits and 1 Stop Bit.
The second reader is a HID Reader that uses HID Badges:
125kHz, Read Only, H10301 (Std. 26 Bit), Facility Code 101.
Note: the reader is not restricted to 26 Bit badges
4. Ports
and
Connections
Ethernet Port
The Ethernet port is located on the lower left corner of the terminal. It is
a 10 position 8-pin female port, which will accept a male
10/100BASE-T (RJ-45) modular connector. The terminal has the
capability to communicate across an intranet, a WAN or the Internet.

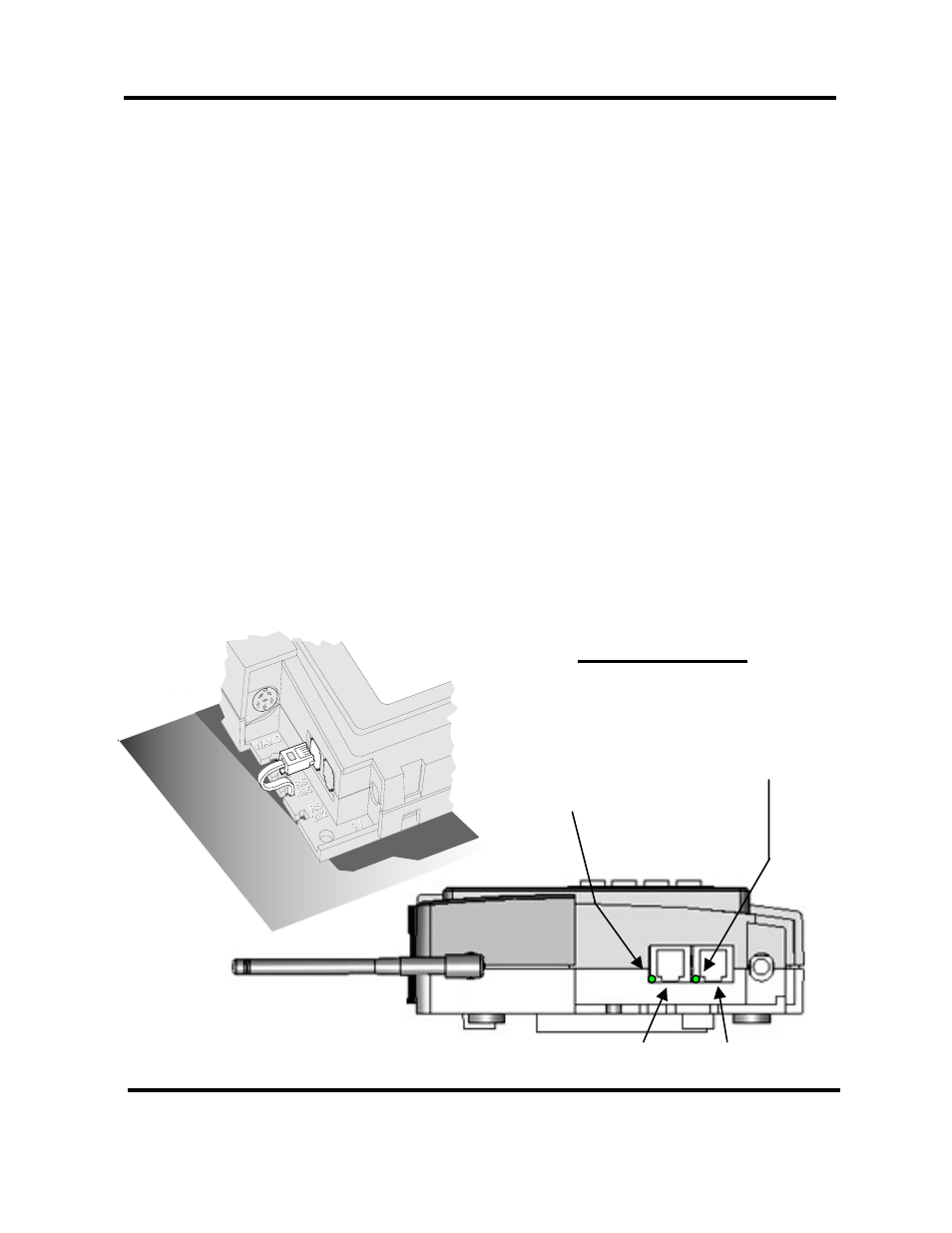

Ethernet Port
RS232 Port
Indicator Lights
Green Wireless
RF Activity
LED
Front Green LED:
Ethernet Link
Rear Green LED:
Ethernet Receive
