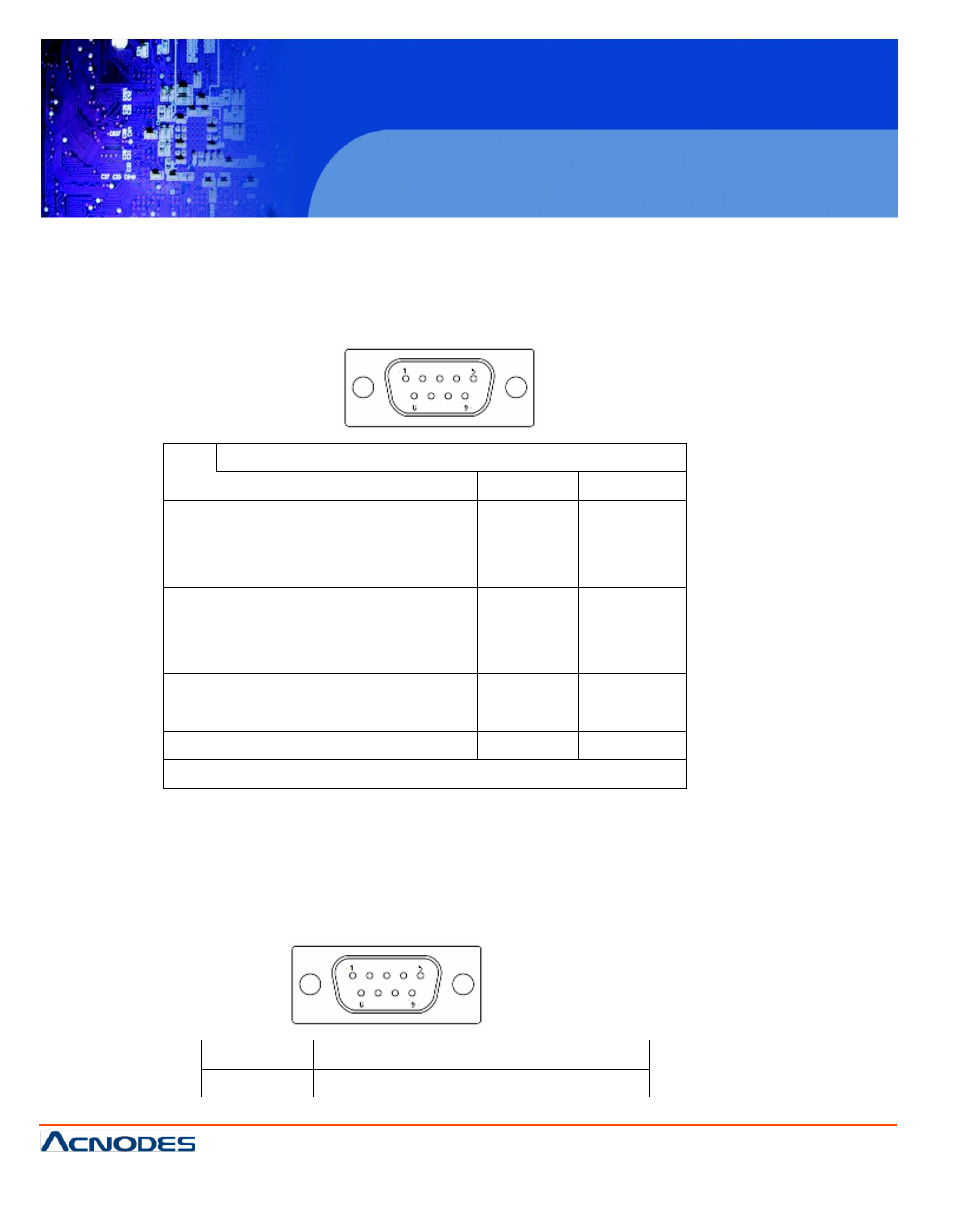

7. COM 1
:
(Type DB9),
Rear serial port, standard DB9 serial port is p
connection to serial devices. COM1 port is controlled by pins No.1~18
Signal RS232 or RS422 or RS485, for details, please refer to description of
Pin#
Signal Name
RS232
RS422
RS485
1
DCD# (Data Carrier Detect)
422_TX-
485_D-
2
RXD (Received Data)
422_RX-
NC
3
TXD (Transmit Data)
422_RX+
NC
4
DTR (Data Terminal Ready)
422_TX+
485_D+
5
Ground
Ground
Ground
6
DSR (Data Set Ready)
NC
NC
7
RTS (Request To Send)
NC
NC
8
CTS (Clear To Send)
NC
NC
9
RI (Ring Indicator)
NC
NC
please refer to description of JP485
8. COM 3: (Typ e D B9),
Rear serial port, standard DB9 serial port is p
connection to serial devices. COM1 port is controlled by pins No.1~6 of Jselect output Signal RI
or 5V or 12v, for details, please refer to description of JP3.
Pin#
Signal Name
1
DCD# (Data Carrier Detect)
