2.3 Jumpers Setting and Connectors
1. JP5: (2.0mm Pitch 1X2 Pin Header), ATX Power and AT Power setting jumper.
JP5 Mode
Open ATX Power Mode
Close AT Power Mode

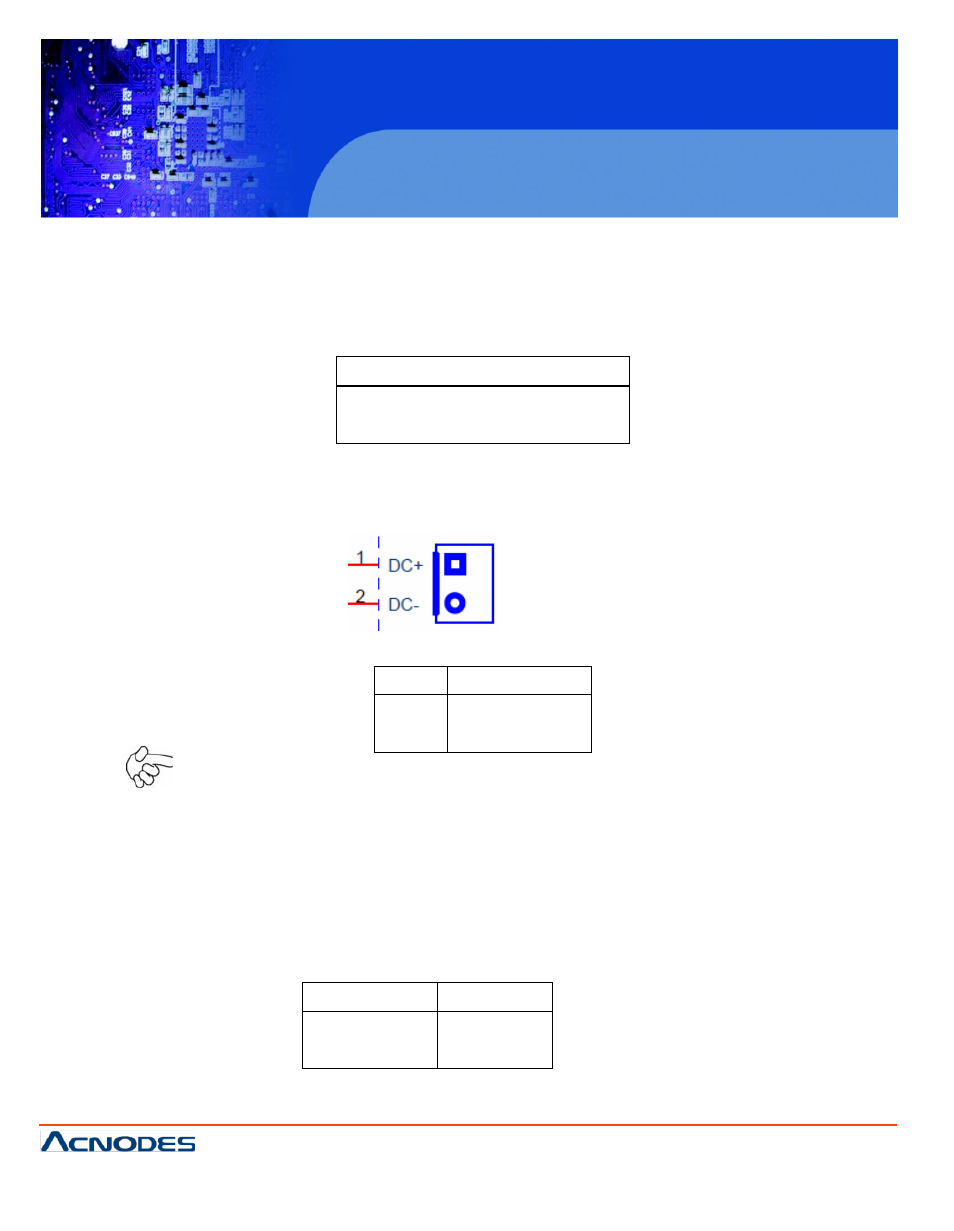

2. PW R1 : (5.0mm 1x2 Pin Connector),DC9V~30V System power input connector
Pin# Signal Name
1 +DC9V~DC30V
2 Ground
Note:
Make sure that the voltage of power supply is DC9V~30V before power on, or it may
cause boot up failure and even system damage.
3. BAT1: (1.25mm Pitch 1X2 box Pin Header) 3.0V Li battery is embedded to provide
power for
CMOS.
Pin# Signal Name
Pin1 VBAT
PIN2 Ground
