2.4 Openframe and VESA Mountings

There are two mounting ways for the OPC 8190, openframe and
VESA mountings.

2.4.1 Openframe Mounting

The FDK series can be mounted into the wall or put on customized
front bezel. Please follow the steps below to for the open frame
mounting installation.

Step 1 Users need to prepare the front bezel/wall, screws, nuts,

sponge, and L-type holders by themselves.

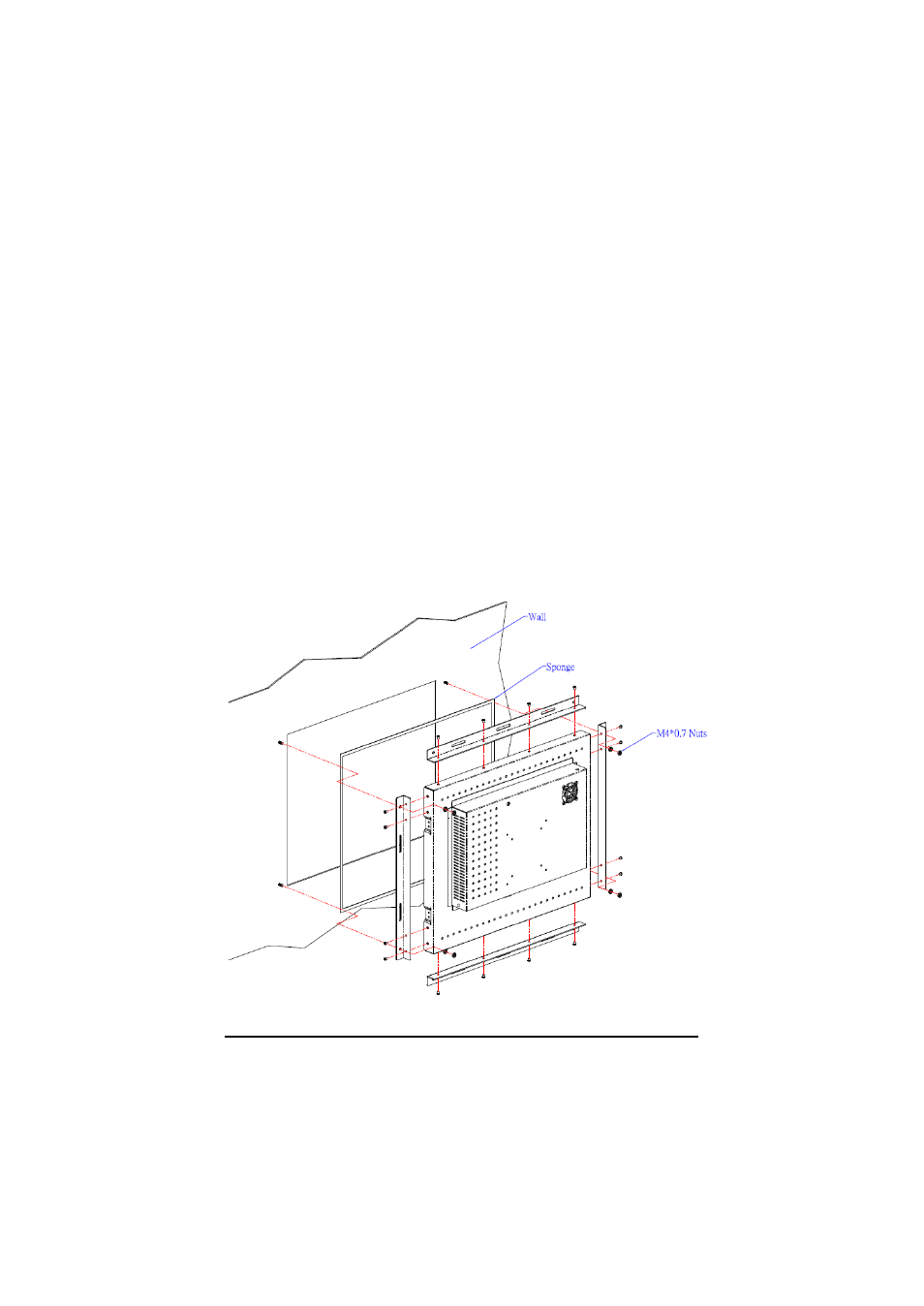

Step 2 Follow section 1.4 dimensions and drawing below. Place the

FDK unit on the front bezel or wall.

Step 3 Screw the FDK to fix it.
