www.stiebel-eltron.com SHW ACE | 21
InStAllAtIOn
Specification
16. specification

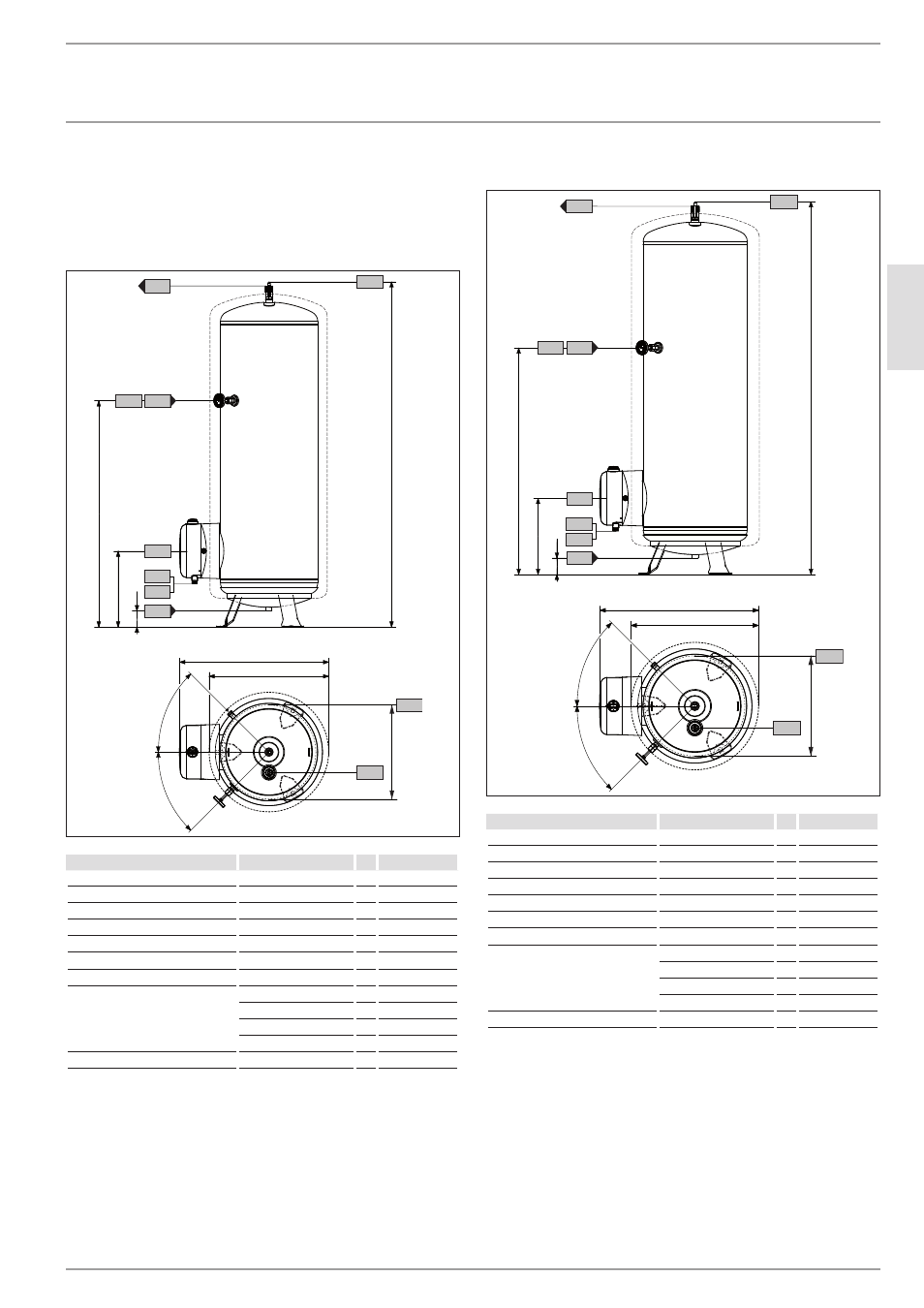

16.1 dimensions and connections
sHw 200 ace
80
1578
340
1035
690
550
h43
i01
i18
i18
c01
c10
45°
45°
430
a43
b02
b03
c06
D
00000
33
30
7
SHW 200 ACE
a43 Pitch circle diameter of feet
b02 Entry electrical cables I Diameter PG 16
b03 Entry electrical cables II Diameter PG 13.5
c01 Cold water inlet Male thread G 1 A
c06 DHW outlet Male thread G 1 A
c10 DHW circulation Male thread G 1/2 A
h43 Thermometer Diameter mm 14.5
i01 Flange Diameter mm 210
Pitch circle diameter mm 180
Screws 10 x M12
Torque Nm 55
i18 Protective anode Female thread G 1 1/4
sHw 300 ace
75
1593
365
1040
790
650
i18
45°
45°
h43
i01
c01
c10
490
a43
b02
b03
c06
i18
D
00000
33
30
8
SHW 300 ACE
a43 Pitch circle diameter of feet
b02 Entry electrical cables I Diameter PG 16
b03 Entry electrical cables II Diameter PG 13.5
c01 Cold water inlet Male thread G 1 A
c06 DHW outlet Male thread G 1 A
c10 DHW circulation Male thread G 1/2 A
h43 Thermometer Diameter mm 14.5
i01 Flange Diameter mm 210
Pitch circle diameter mm 180
Screws 10 x M12
Torque Nm 55
i18 Protective anode Female thread G 1 1/4
