1.4.2. Front LEDs

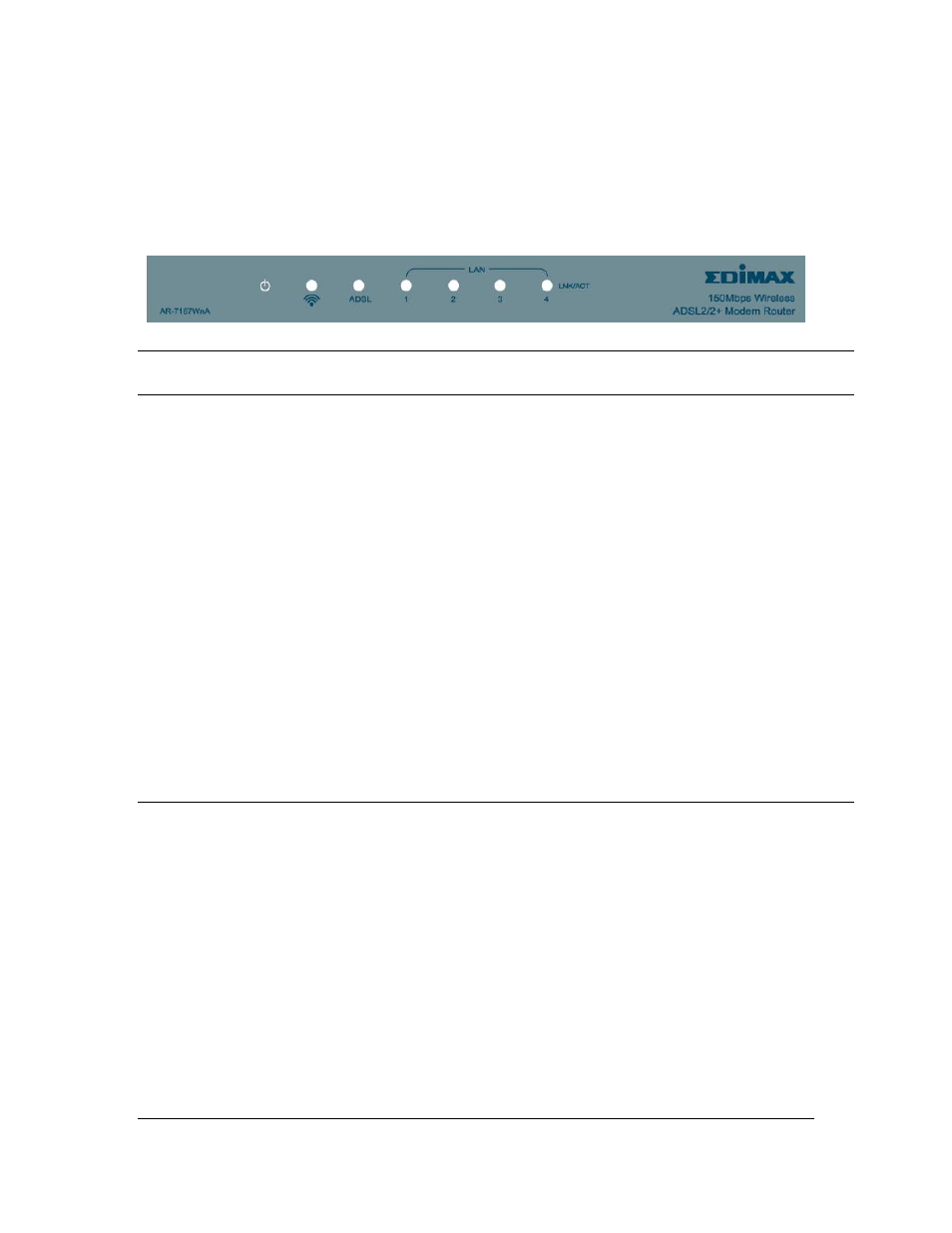

On the router‟s front panel there are LED lights that inform you of the router‟s
current status. Below is an explanation of each LED and its description.
LED
Light Status
Description
PWR (Green)
On
Router is switched on and correctly
powered.
WLAN (Yellow)
On
Off
Wireless LAN WPS is on.
Wireless LAN is disabled
Blinking
Wireless traffic is transmitting or receiving
ADSL (Green)
On
Connected to an ADSL DSLAN
successfully
Blinking
No connection
LAN LNK/ACT (Port 1-4) On
The LAN cable is connected to the router
Off
No network connection.
Blinking
Network traffic transferring or receiving
through the LAN port
