23

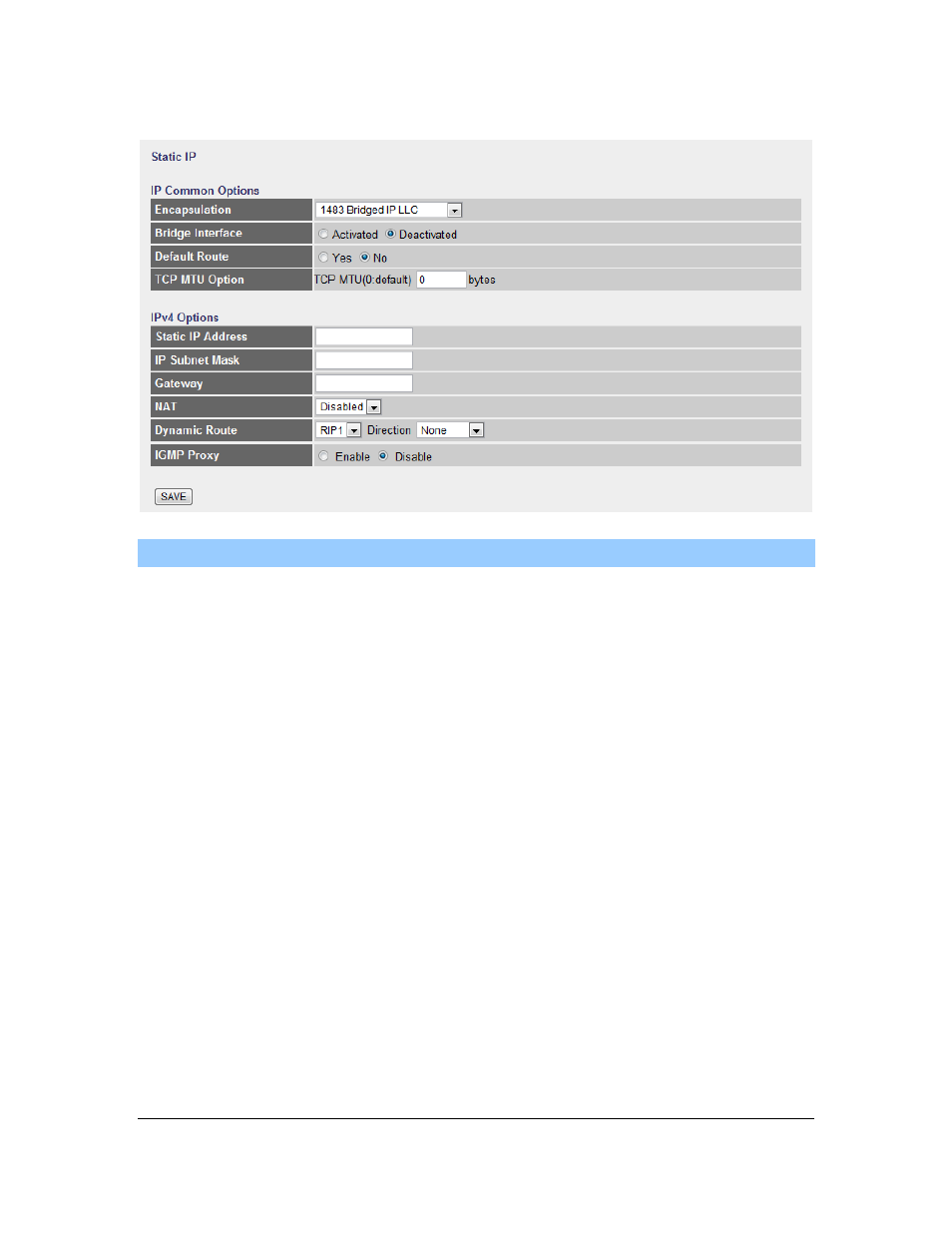

 Static IP Address
Parameter Description
Encapsulation Please check with your ISP the method of multiplexing.
In Static IP Mode, please select
“1483 Bridge IP LLC” or
“1483 Bridge IP VC-Mux” or “1483 Routed IP LLC(IPoA)”
or “1483 Routed IP VC-Mux”.
Bridge Interface This router has built-in ADSL modem and is able to
connect to ISP directly. Alternatively, if you want to use
the dial up software to manually connect to the ISP, you
have to activate the ”Bridge Interface”.
Default Route When
“Default Router” is enabled, all the packets for
destinations not known by the router's routing table are
sent to the default route. By default, it is enabled.
TCP MTU Option MTU (Maximum Transmission Unit) determine the
maximum size of each packet in any transmission within
the network. Please specify the MTU range from 100 to
1500 bytes or 0 byte as the default value.
