46
IPP/DS Field Select IP QoS format.
IP Precedence Range Select the IP precedence range.
Type of Service Select 5 different type of service.
DSCP Range Set the DSCP value that you want to filter
802.1p
Set the remarked new 802.1p priority value on the packet
that fulfill every detail setting condition of each rule

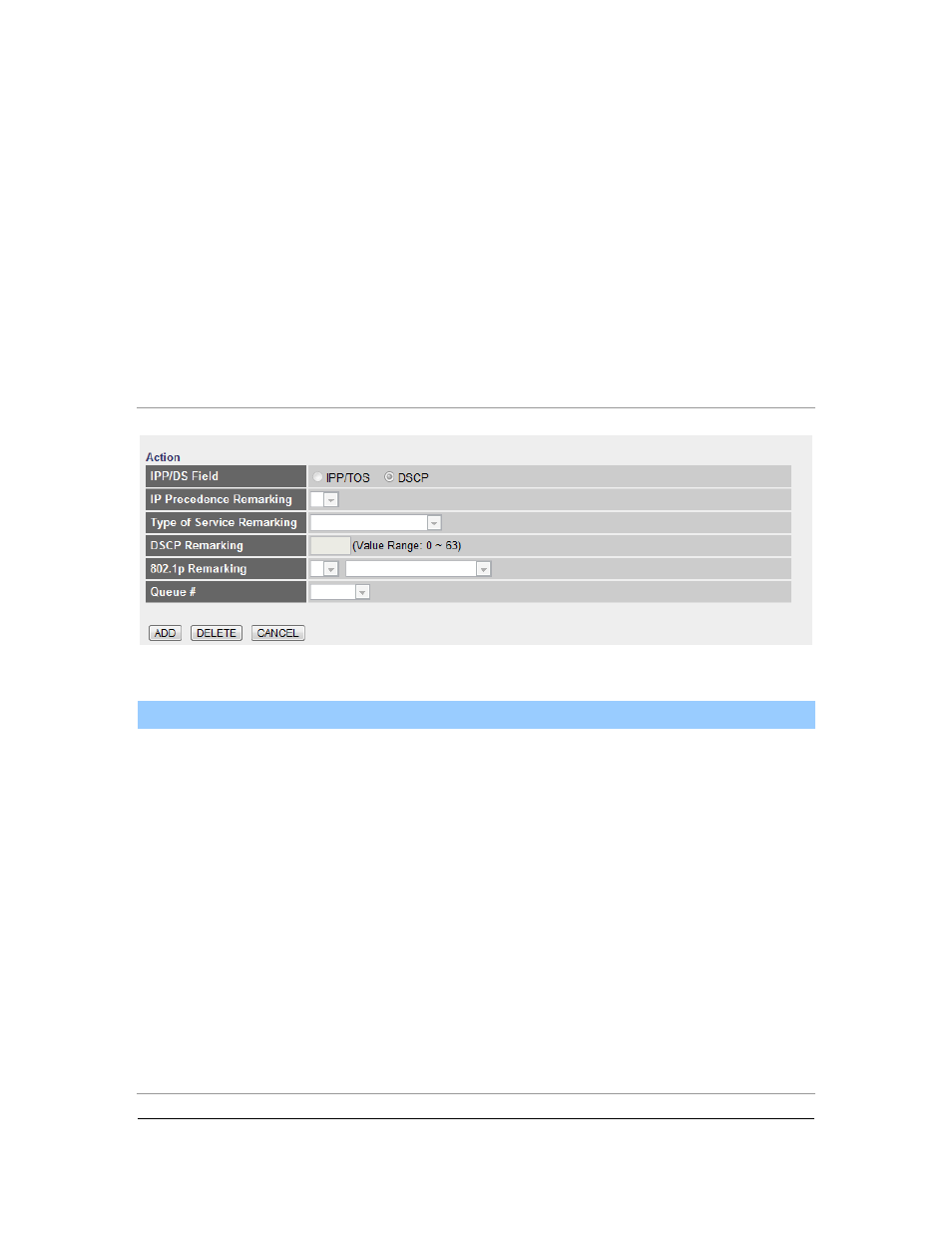

 Action
Parameter Description
IPP/DS Field Select IP QoS format.
IP Precedence
Remarking
Select the remarking value of IP precedence.
Type of Service
Remarking
Select the remarking value of type of service.
DSCP Remarking Select the remarking value of DSCP.
802.1p Remarking Select the remarking value of 802.1p.
Queue # Select four types of Queue: Low, Medium, High, Highest.
