54

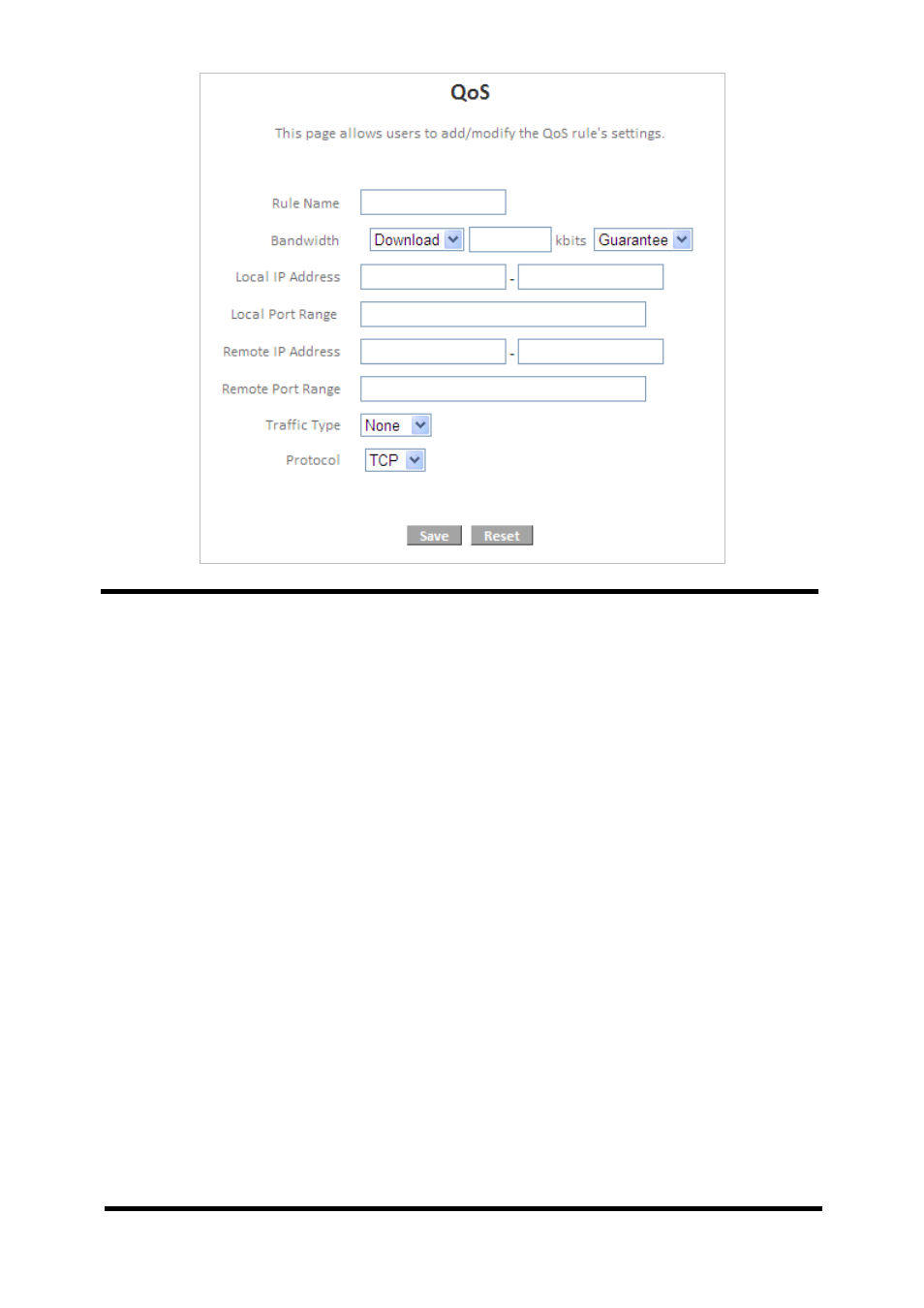

Rule Name Input a unique name for this QoS rule for
reference.
Bandwidth Download/upload bandwidth (guarantee or
maximum).
Local IP Address Set the IP address range that will be affected by
this QoS rule. If only one IP address is involved,
input the IP address in the left field only.
Local Port Range Set the port range that will activate this QoS
rule. If only one port is involved, input a single
number here (1 to 65535); if multiple ports are
involved, input starting/ending port number in
x-y format (e.g. 10-20).
Remote IP Address Set remote IP addresses that will trigger this
QoS rule (if only one IP address is involved,
input the IP address in the left field only).
Remote Port Range Set the remote port range that will activate this
QoS rule.
Traffic Type If you’re creating a QoS rule for a specific type
of traffic, select it from this menu and
a port range (above) is not required.
Protocol Select the protocol type here (TCP or UDP).
