34
DNS address Select “Obtain an IP address automatically” or “Use the
following IP address”. If you choose “Use the following
IP address”, you will need to complete the “DNS1
Address”, “DNS2 Address” and “DNS3 Address” fields
below.
DNS1 Input the address of DNS1 assigned by your ISP.
DNS2 Input the address of DNS2 assigned by your ISP.
DNS3 Input the address of DNS3 assigned by your ISP.
TTL Enable the “TTL” function if your ISP requires you to do
so.
Service Name Input the Service Name assigned by your ISP.
MTU Input the MTU (maximum transmission unit) value of
your network connection. The default value is 1392.
Typical values for ADSL are 1392 or 1492.
Connection Type Select connection type from:
“Continuous” – always connected.
“Connect on Demand” – connect when required.
“Manual” – connect and disconnect manually.
Idle Time Out For ”Connect on Demand” connection type, specify the
length of inactivity required to disconnect.

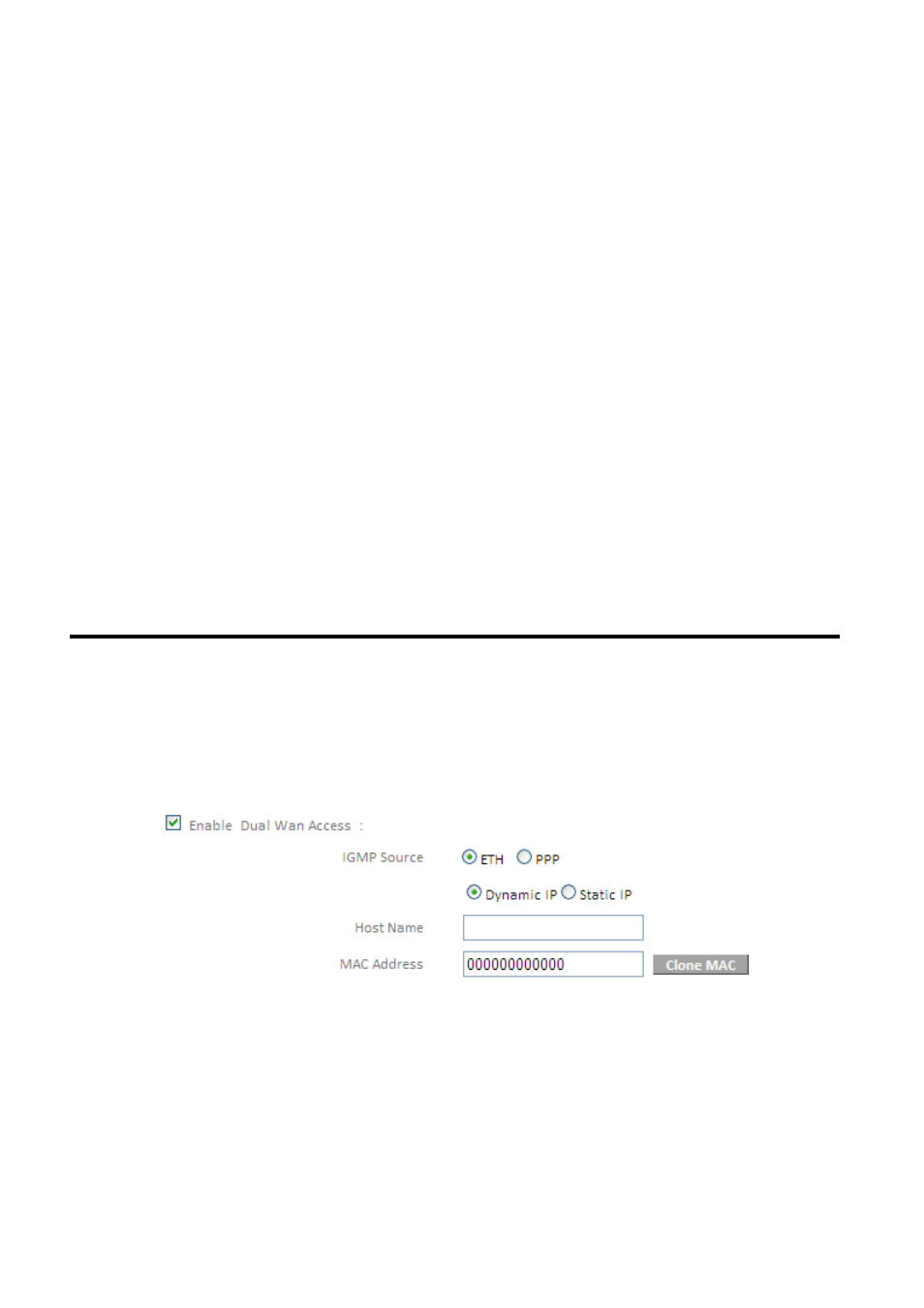

Enable Dual Wan Access
If your ISP provides a dual-WAN service, then check the box “Enable Dual Wan
Access” and enter the required information.
IV-3-1-4. PPTP/L2TP
Fields for PPTP and L2TP connections are the same – PPTP is used as an
example below.
