NSW-R4 WIRELESS BROADBAND ROUTER, 300M
1. Wireless router overview

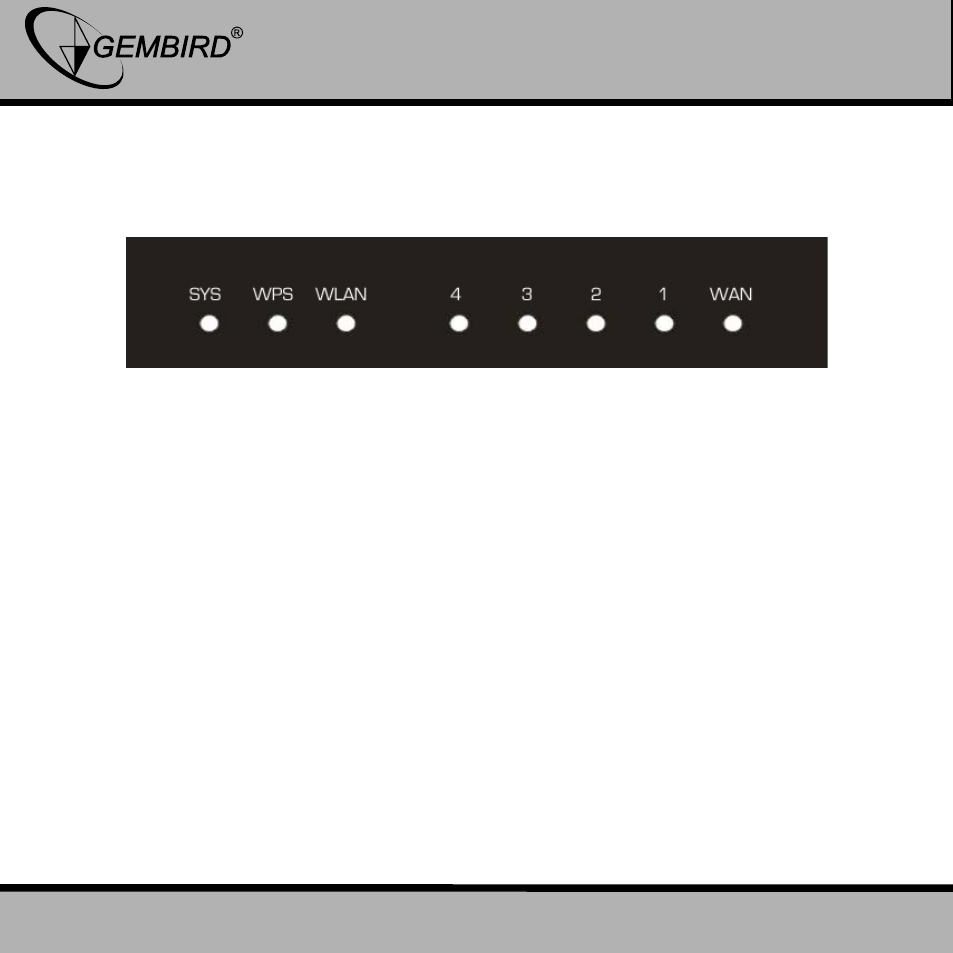

1.1 Front panel (LED indicators)
SYS (Red): Flickering light indicates a proper connection to the
power supply.
WPS (Green): The LED is flash about two minutes during WPS
working.
WLAN (Green): The LED is flickering during wireless activity.
LAN 1, 2, 3, 4(Green): The Link/Act LED serves two purposes. If the
LED is continuously illuminated, the Router is successfully connected to a
device through the corresponding port. If the LED is flickering, the Router is
actively sending or receiving data over that port.
WAN (Green): The Link/Act LED serves two purposes. If the LED is
continuously illuminated, the Router is successfully connected to a device
through the corresponding port. If the LED is flickering, the Router is actively
sending or receiving data over that port.
