NSW-R4 WIRELESS BROADBAND ROUTER, 300M

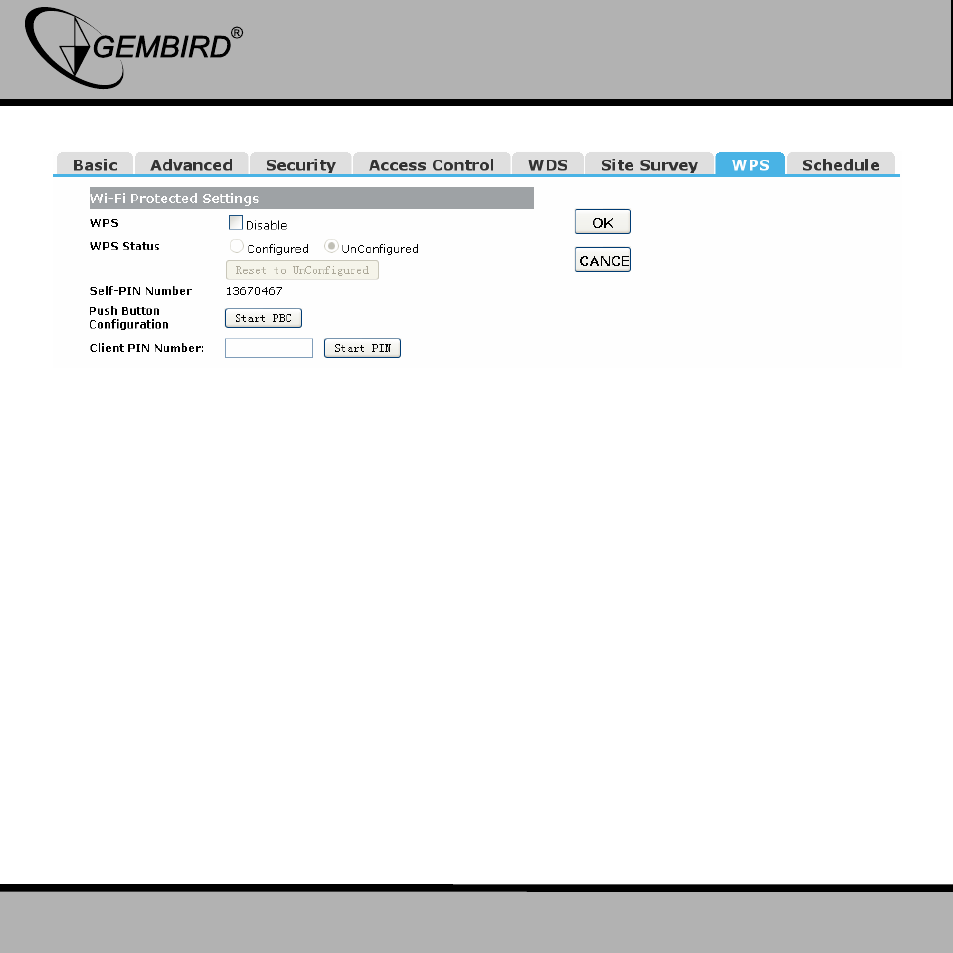

WPS: Checking this box and clicking “OK” will disable the WPS function.
WPS is turned on by default.
WPS Status: After you set up all security settings the checkbox
“Configured” will be highlighted
Self-PIN Number: It is AP’s PIN number.
Start PBC: Clicking this button will invoke the Pus Button Configuration of
WPS. If one station wants to connect to the AP, it must click its PBC button
within two minutes. You will see the reset LED flashing during this time.
Note: This router also has a hardware button, it is the same button with
reset. If you keep this button pressed for less than two seconds, the AP will
run the PBC function. The reset LED will then flash for two minutes. During
this time, the workstations can connect to the AP by using their software or
hardware WPS button.
Client PIN Number: The length of PIN can be four or eight digits. If the AP
and the workstation use this PIN, they will establish a connection and setup
their security key.
