NSW-R4 WIRELESS BROADBAND ROUTER, 300M
If you configure the router as Virtual Server, remote users accessing
services such as Web or FTP at your local site via public IP addresses can
be automatically redirected to the local servers with private IP addresses. In
other words, depending on the requested service (TCP/UDP port number),
the router redirects the external service request to the appropriate server.

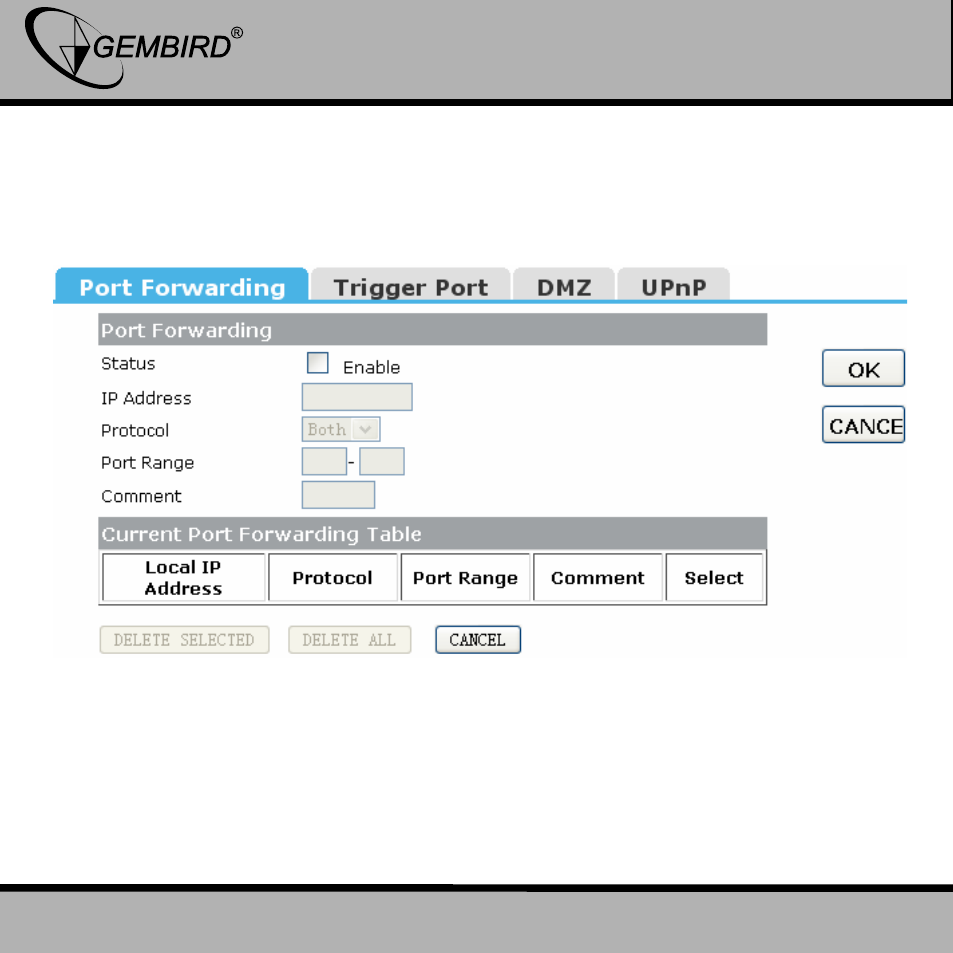

Status: Clicking this box will enable the Port Forwarding function.
IP Address: The external public IP address to be redirected.
Protocol and Port Range: Select the protocol and port range to be
redirected to the local IP.
Current Filter Table: The table shows all forwarding records you have
added so far. You can delete any selected record or all records at once.
