Festool OF 2200 EB User Manual
Page 13
13

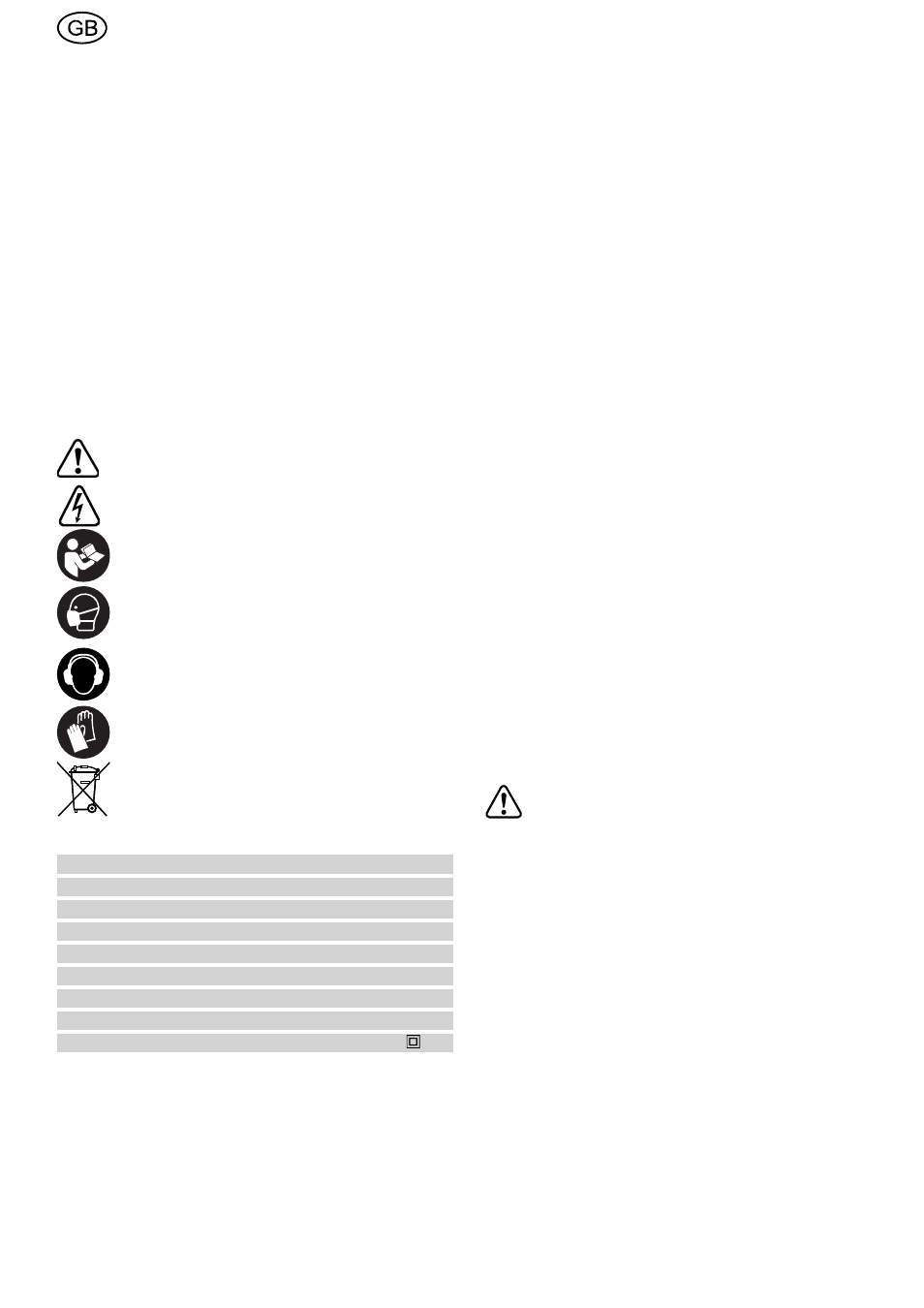

1 Symbols
Warning of general danger
Risk of electric shock
Read the operating instructions/notes!
Wear a dust mask!
Wear ear protection!
Wear protective gloves!
Do not throw in the household waste!
2 Technical
data
Power 2200
W
(110 V-Version: 16 A)
Rotational speed (no load)
10000 - 22000 rpm
Quick depth adjustment
80 mm
Fine depth adjustment
20 mm
Connecting thread on drive shaft
M 22 x 1.0
Max. routing tool diameter 89 mm (3½")
Weight (without mains cable)
7.8 kg
Protection class
/ II
3
Machine features
[1.1]
Adjusting wheel for fi ne routing depth ad-
justment
[1.2]
Dial ring for fi ne routing depth adjust-
ment
[1.3]
Rotary knob for fi xing routing depth
[1.4]
Scale for routing depth
[1.5]
Depth stop with indicator
[1.6]
Clamp lever for depth stop
[1.7]
Eccenter for connecting depth stop and
stepped stop
[1.8] Stepped
stop
[1.9]
Lever for changing base runner
[1.10] Rocker switch for spindle lock
[1.11] Adjusting wheel for speed control
[2.1]
Locking knob for on/off switch
[2.2] On/off
switch
[2.3]
Lever for locking protective guard
[2.4] Handles
[2.5] Extractor
connector
The specifi ed illustrations can be found at the be-
ginning and at the end of the operating instruc-
tions.
4 Intended
use
The routers are designed for routing wood, plas-
tics and materials similar to wood. The routing
tools included in Festool sales documents are
also suitable for routing aluminium and plaster-
board.
The user bears the responsibility for damage and
accidents caused by improper use.
5 Safety
instructions
5.1 General safety instructions
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings
and instructions may result in electric shock, fi re
and/or serious injury.
Save all warnings and instructions for future
reference.
The term „power tool“ in the warnings refers to
your mains-operated (corded) power tool or bat-
tery-operated (cordless) power tool.
5.2 Machine-related safety instructions
- Hold power tool by insulated gripping sur-
faces, because the cutter may contact its own
cord. Cutting a “”live”” wire may make exposed
metal parts of the power tool “”live”” and could
give the operator an electric shock.
- Use clamps or another practical way to secure
and support the workpiece to a stable plat-
form. Holding the work by your hand or against
