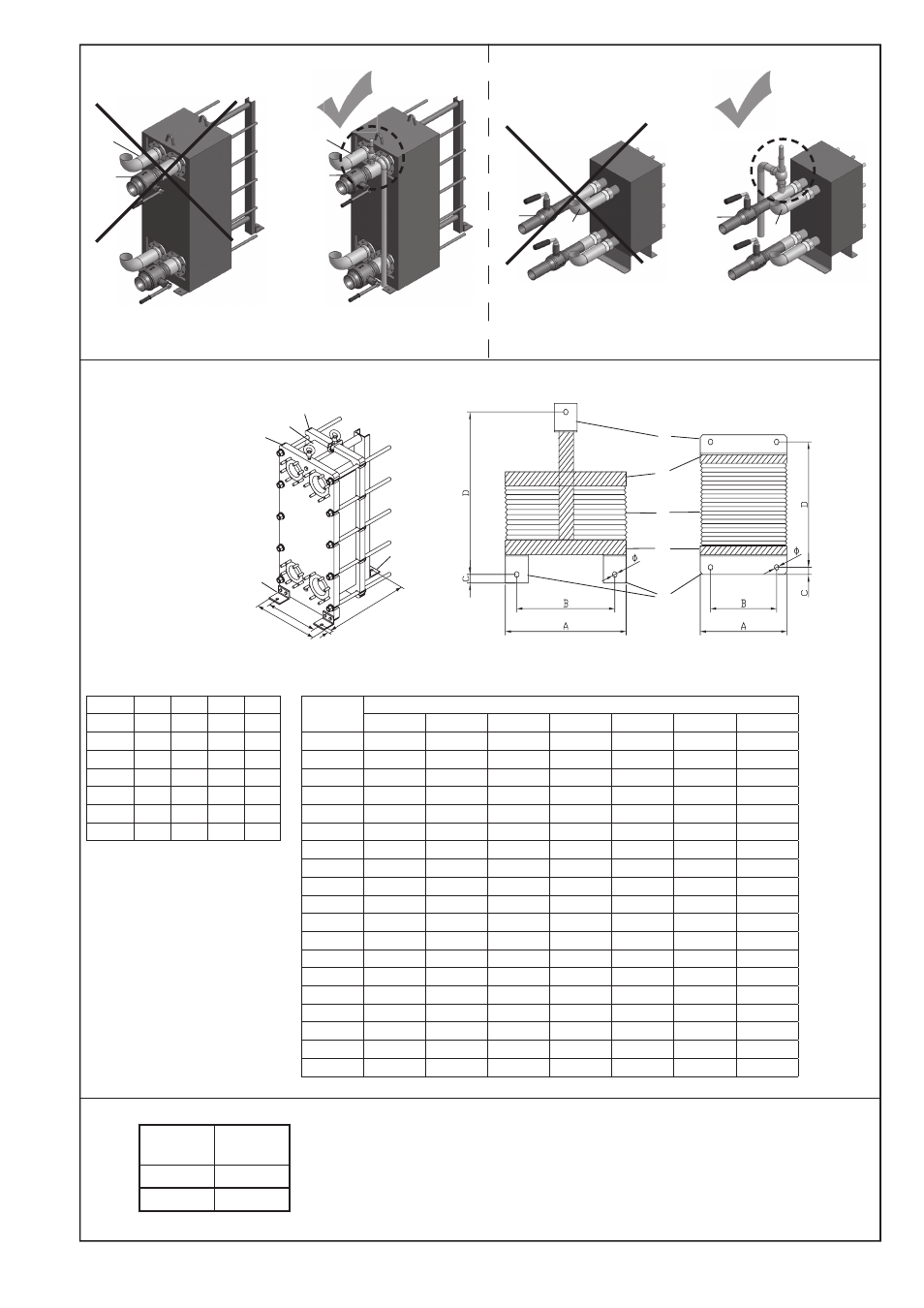

Danfoss XG - Manual (Page 3)

DH-SMT VI.KA.B5.3C © Danfoss 09/2009 3
PS
(bar)
PT
(bar)
16 22.9
25 35.8
D B
A
C
Example of XG40, XG50 XG20, XG40, XG50, XG31 XG10, XG14, XG18
View from above
Number
of plates
Dimension-D mm
XG10 XG14 XG18 XG20 XG31 XG40 XG50
8 - 118 118 - - -
10 106 123 123 490 542 - -
20 132 146 146 490 542 - -
30 158 169 169 490 542 - -
40 184 192 192 640 542 - -
50 210 215 215 640 542 850 850
60 236 238 238 640 692 850 850
70 262 261 261 790 692 950 950
80 - 284 284 790 692 1150 1150
90 - 307 307 790 692 1150 1150
100 - 330 330 940 842 1150 1150
110 - 353 353 940 842 1150 1150
120 - 376 376 940 842 1350 1350
130 - 399 399 - 992 - -
140 - 422 422 1090 992 1350 1350
150 - 445 445 - - - -
160 - - - - - 1650 1650
180 - - - - - 1650 1650
200 - - - - - 1650 1650
Type A B C 
XG10 158 100 15 9
XG14 200 92 12 10
XG18 200 92 12 10
XG20 300 234 20 13
XG31 360 234 20 13
XG40 540 430 30 20
XG50 540 430 30 20
 

XG14..., XG18..., XG20...,
XG31..., XG40..., XG50...
XG10...
T11
T22
T11
T22
T11
T22
T11
T22












