Disassembly and Reassembly
3-11

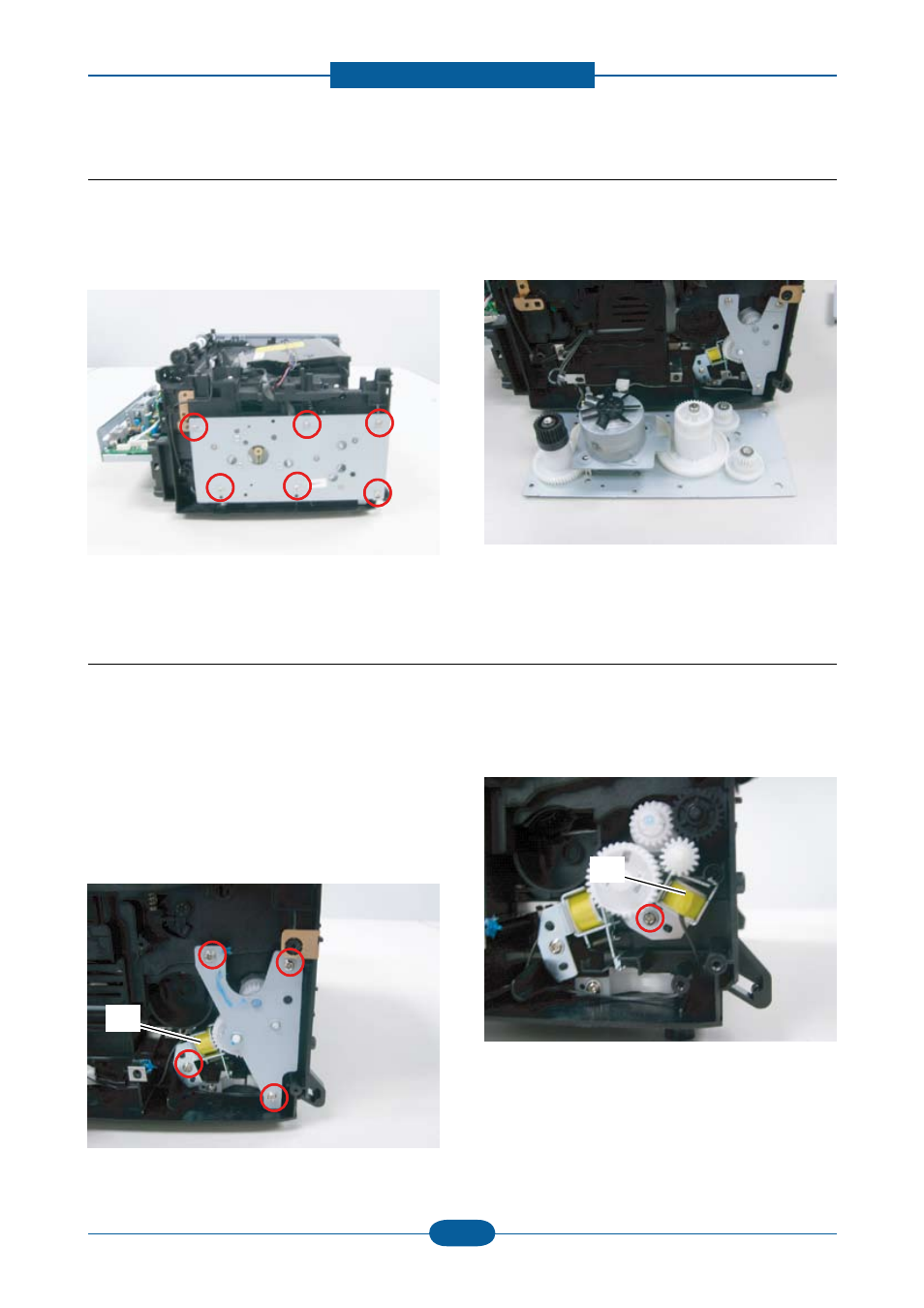

3.9 Drive unit
3.10 Solenoid
1. Remove the Rear cover/ Scan Assy / Left cover.
2. Remove 6 screws.
3. Take off the Drive Unit after removing 1
connector.
1. Remove the Drive unit (refer to 3.9)
2. Remove the solenoid connector on Main PBA.
(refer to 3.1.14)
3. Take off the solenoid [A] after removing 1 screw.
4. To remove the solenoid [B], take off the bracket
after removing 3 screws.
5. Remove the gears.
6. Take off the solenoid [B] after removing 1 screw.
[A] [A] [A]
[B] [B] [B]
[A] [A] [A]
[B] [B] [B]
