Network Configuration Examples
17
Network
Configuration
Examples
The following illustrations show some examples of how the Switch can be
used in your network.
Switch 3300 as a
Segmentation Switch
The example in

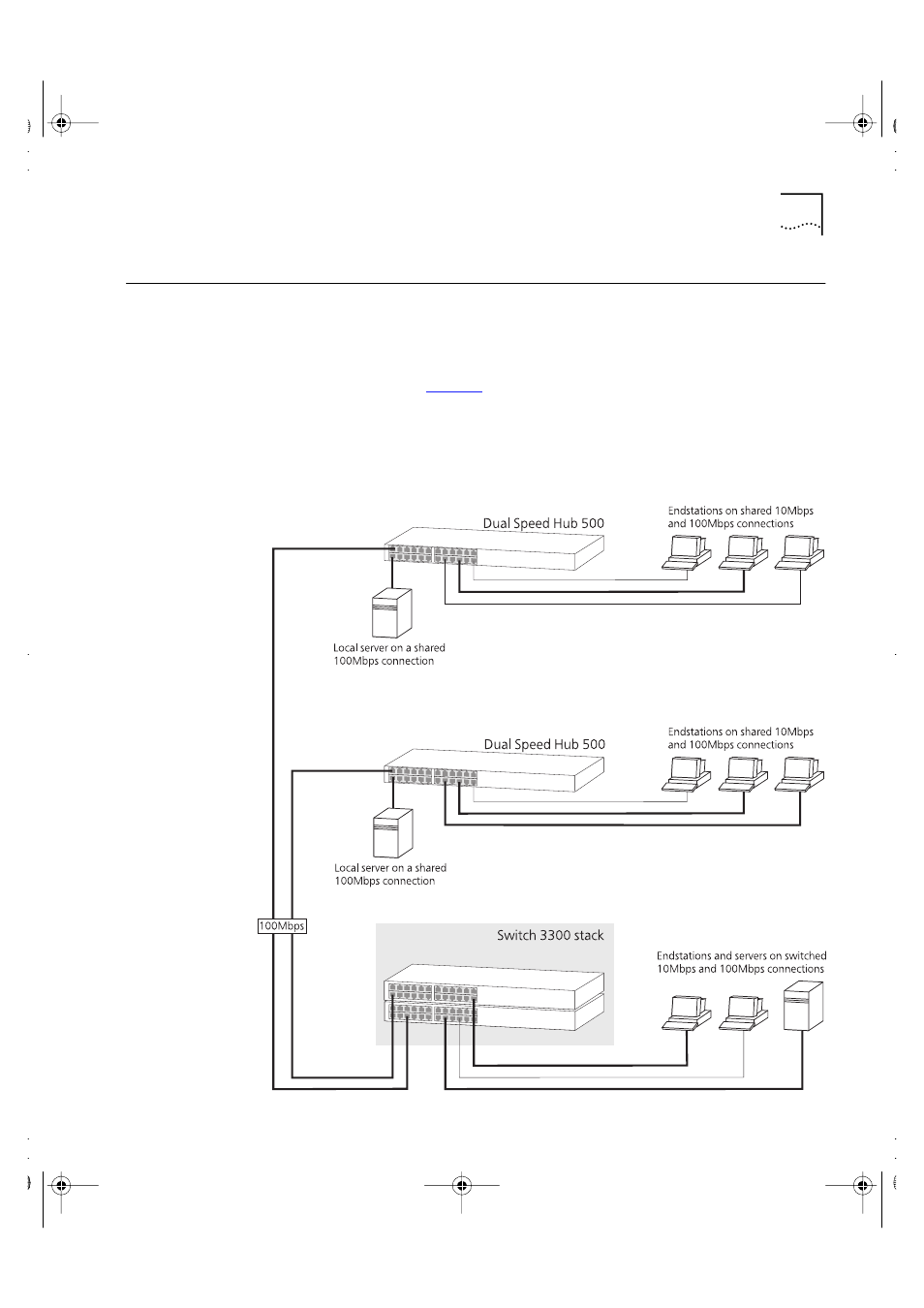

shows how a Switch 3300 stack can segment a
network of shared 10Mbps and 100Mbps connections. There is a 10/100
shared segment on each floor, and these segments are connected to the
Switch which is positioned in the basement.
Figure 3 Using the Switch to segment your network
