DK8X Motherboard
IMPORTANT
Ribbon cables should always be connected with the red stripe on the Pin 1 side of the
connector. IDE ribbon cables must be less than 46 cm (18 inches) long, with the second
drive connector no more than 15 cm (6 inches) away from the first connector.

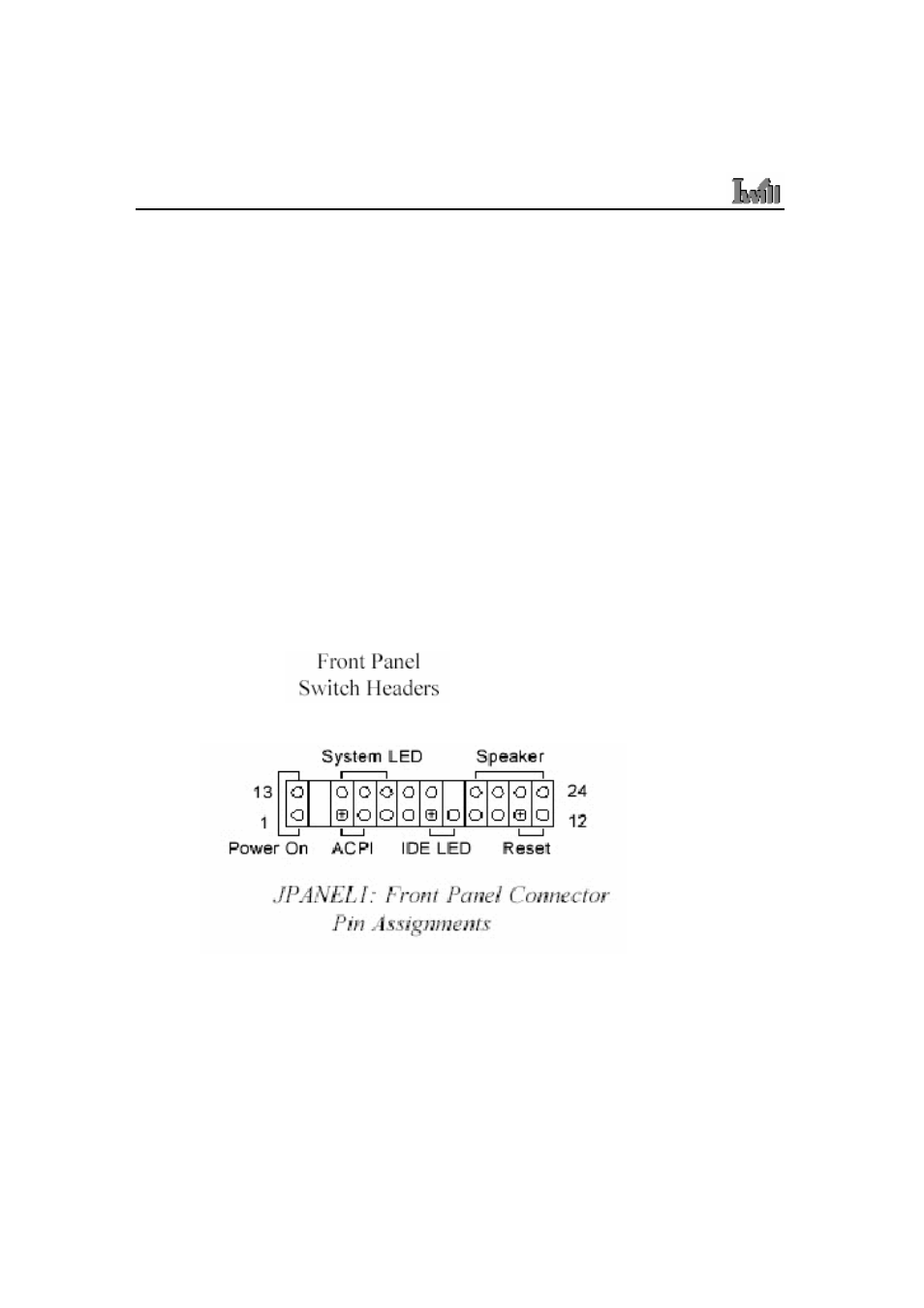

F RONT P ANEL S WITCHES
The front panel switches header connects the front control panel buttons and LEDs to the
Mainboard.
________________________________________________________________________
2-18 Hardware Installation
