DK8X Motherboard

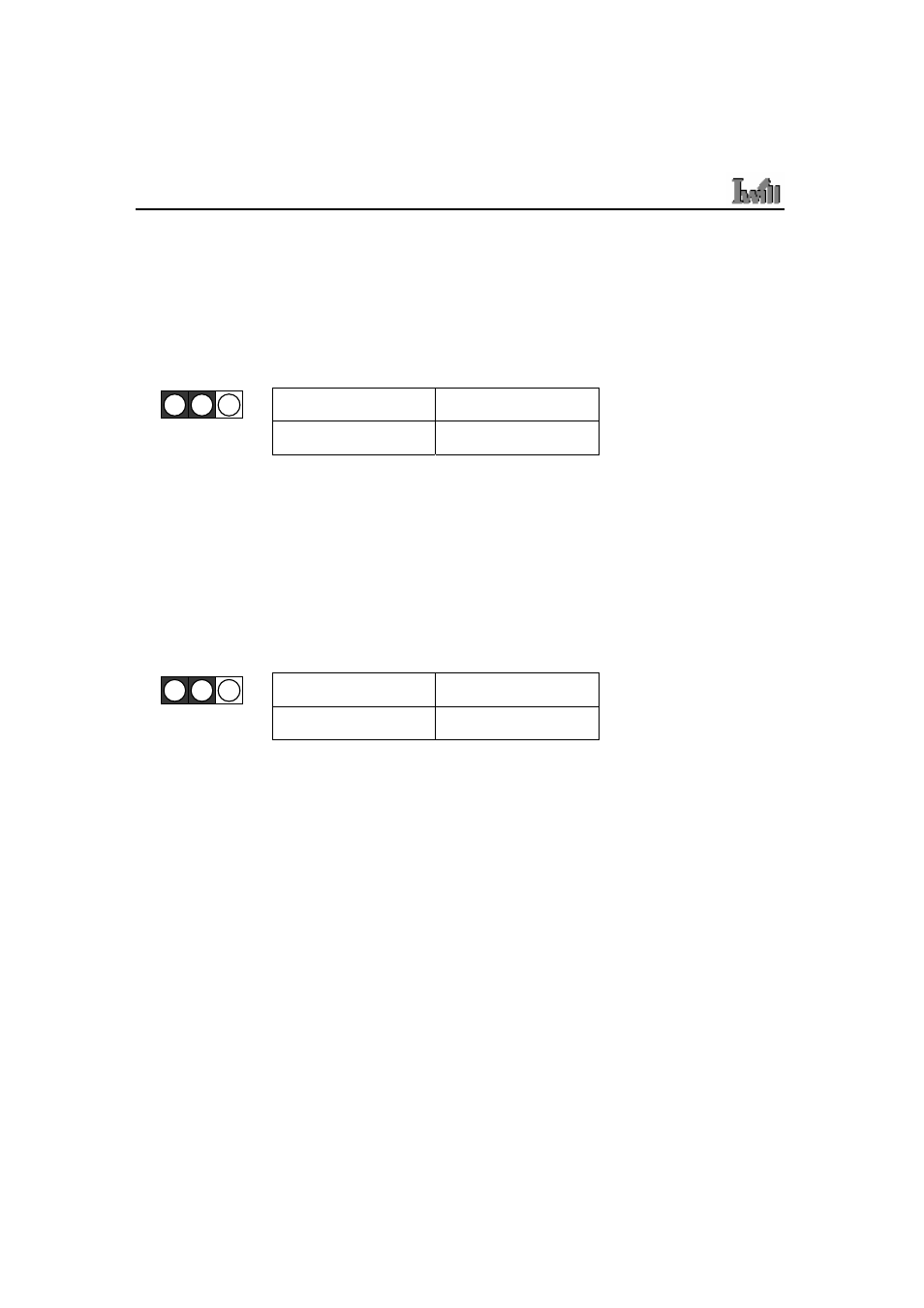

CN21: PCI 64-Bit Speed Select Jumper
This header lets you determine the bus speed of the PCI-X 64-bit slots. The speed can be
set to either 64 MHz (default) or 33 MHz





CN25: PCI-X Speed Select Jumper
This header lets you determine the bus speed of the PCI-X slots. The speed can be set to
either 133 MHz (default) or 100 MHz.
















________________________________________________________________________

2-4 Hardware Installation

1 2 3

1-2 2-3

66MHz 33MHz

1 2 3

1-2 2-3

PCI-X 133

PCI-X 100
