16 C HAPTER 1: I NTRODUCING THE R OUTER
The LED lights up and stays on when the connection between ADSL
service and the Router is OK. If the LED is off, nothing is connected or
there is a problem (refer to
Chapter 6 “Troubleshooting” ).
6 Data DSL Status LED
If the LED is flashing, the link is OK and data is being transmitted or
received over the internet.
If the LED is off this can also indicate the login
has failed on a PPPoE or PPPoA ADSL connection
The Sync DSL LED and Data DSL LED are excellent diagnostic indicators.
If interpreted correctly they can give a reliable indication of the cause of an
ADSL connection failure.

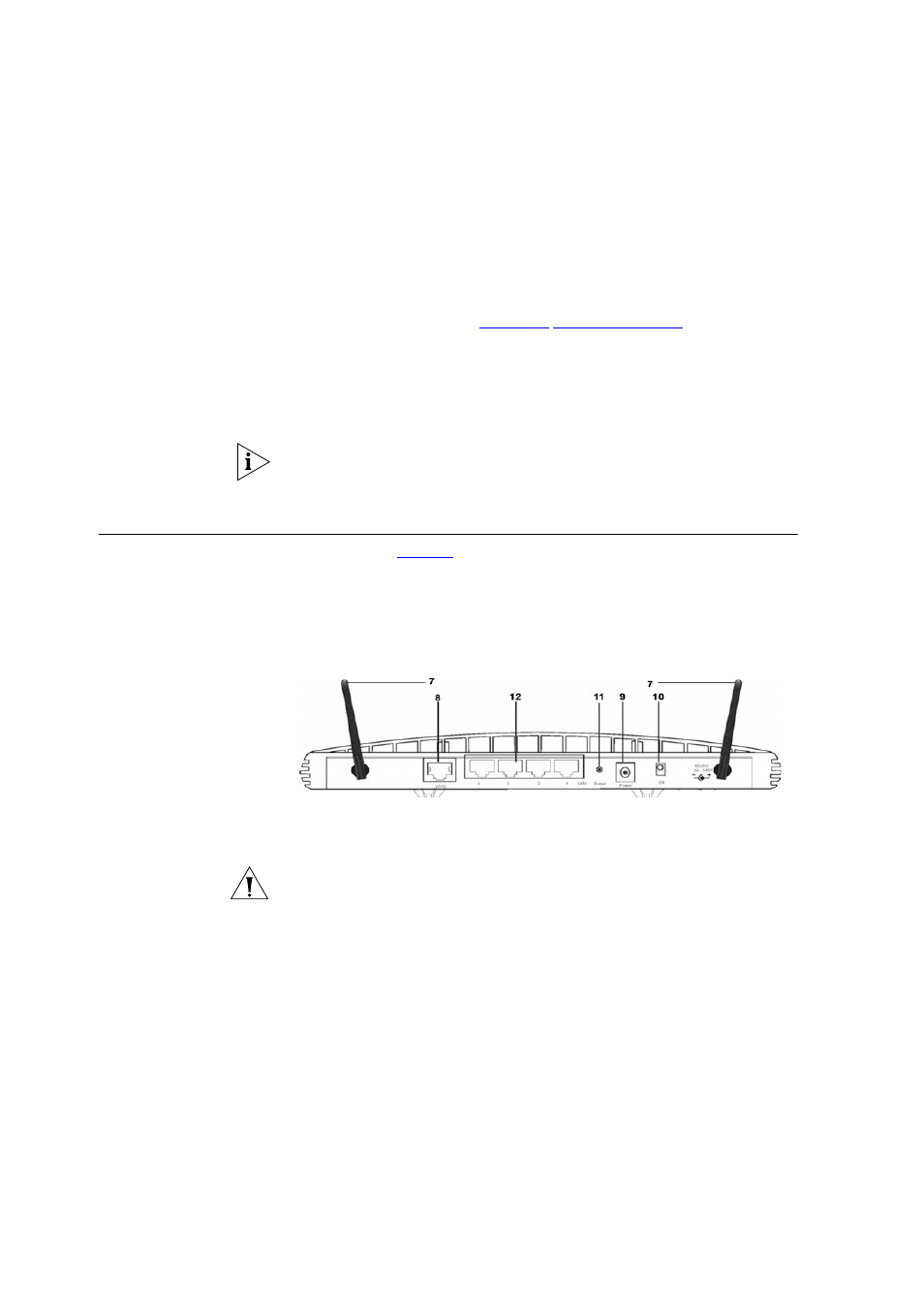

Rear Panel The rear panel ( Figure 4 ) of the Router contains four LAN ports, one
Ethernet ADSL port, a power adapter OK LED, and a power adapter
socket.
Figure 4 Router - Rear Panel
7 Wireless Antennae
The antennae on the product should be placed in a ‘V’ position when
initially installed.
CAUTION: Do not force the antennae beyond their mechanical stops.
Rotating the antennae further may cause damage.
8 ADSL Port
Using the RJ11 cable provided, connect your Router to the telephone
socket via a splitter.
or
Using the RJ45 cable provided, connect your Router to the telephone
socket via a splitter.
9 Power Adapter Socket
